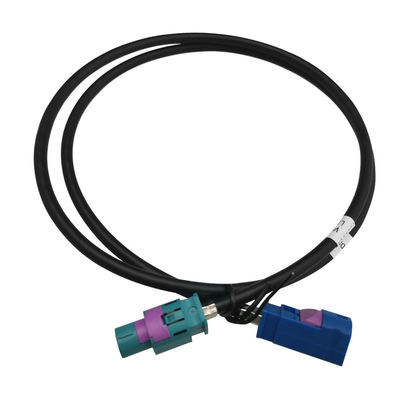

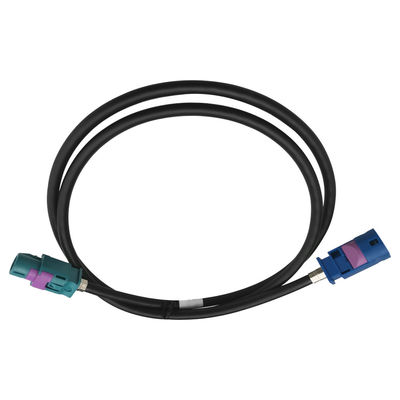

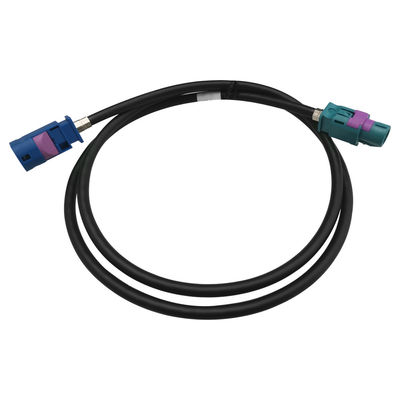

4 Pin C To Z Code BMW HSD Wire , Signal HSD Male To Female Cable

Place of Origin CHINA
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

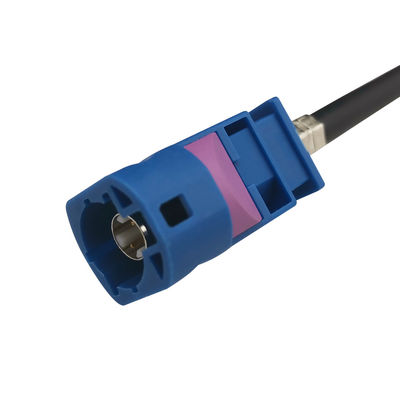

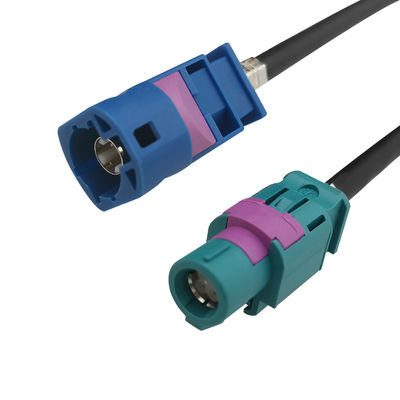

Conversion Style HSD To HSD Connector 1 Code C, Blue Color
Connector 2 Code Z, Waterblue Color Gender Male To Female
Business Type OEM&ODM MOQ 20 PCS
High Light

4 Pin BMW HSD Wire


Z Code BMW HSD Wire


Signal HSD Male To Female Cable

Leave a Message
Product Description

BMW HSD Cable HSD 4Pin C To Z Code Male To Female Signal Cable


Product description:

HSD (High Speed Data) meets the automotive demand for high speed data communication systems.HSD interconnect products are focused on automotive applications such as internal compartments for connecting displays, hosts and rear seat infotainment modules. The portfolio is available for various protocols such as LVDS (Low Voltage Differential Signaling), GVIF (Gigabit Video Interface), USB, IEEE 1394 and Ethernet protocols.


Main Feature:

1.FAKRA A~Z code plug and socket connector. (Straight type/right angle type/waterproof type optional)
2. Other cable lengths are available
3. Other cable specifications can be customized
4. High anti-interference performance
5. Impedance of 100 ohms
6. High stability and reliability, high precision, perfect docking with original

7. MOQ:20 PCS



1.Radio antenna
2.GPS telematics or navigation
3.GSM mobile communication
4.RF Bluetooth application
5.Keyless entry
6.Vehicle assisted heating
7. Multi-function display
8. Infotainment system for rear seat passengers


Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

4 Pin C To Z Code BMW HSD Wire , Signal HSD Male To Female Cable 04 Pin C To Z Code BMW HSD Wire , Signal HSD Male To Female Cable 1



1.Do you provide samples?
A: Yes, we can provide samples, but you need to pay the shipping cost.

2. Q: Do you accept customizable orders?
A: Yes, we accept OEM and ODM.

3. What are your payment terms?
A: We accept L/C, T/T, Western Union.

4. Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
