4 Core LVDS BMW HSD Cable Multipurpose High Speed For Car GPS

Place of Origin CHINA
Brand Name LEADSIGN
Model Number BMW HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HSD LVDS CABLE Frequency High
Gender Male / Female Application Automotive, Car GPS,Car FM
Orientation Straight / Right Angle Service OEM ODM Accept
High Light

4 Core BMW HSD Cable

,

Multipurpose BMW HSD Cable

,

GPS LVDS Cable BMW

Leave a Message
Product Description

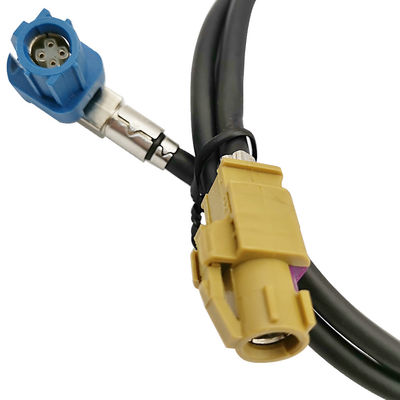

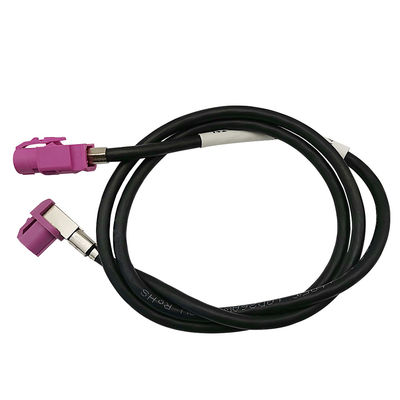

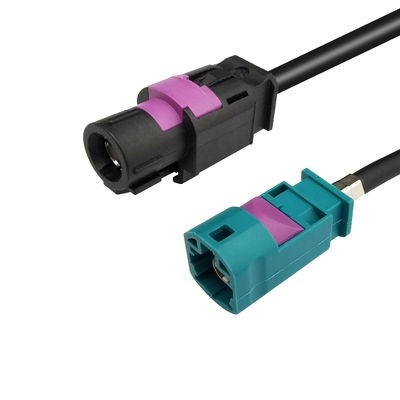

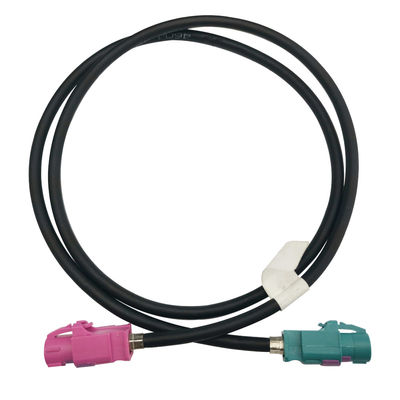

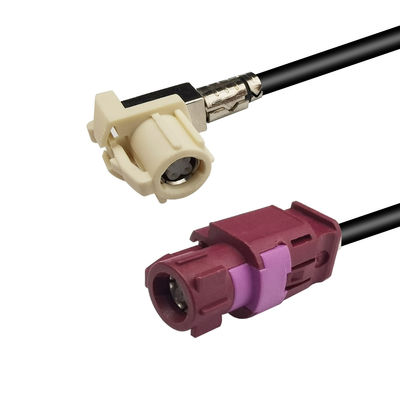

High Speed Data Cable 4-Core HSD Connector LVDS Cable For BMW

Product description:

With the increasing use of automotive RF connectors, antennas, GPS, HD video and other connectors related to central control, HSD connectors can meet the safety and reliability of automotive multimedia entertainment systems and automotive electronic systems as well as automotive high digital data transmission needs.


Main Feature:
1. High interference immunity and low noise
2.With 100Ω matching impedance value
3. Compatible with the vehicle factory system interface
4. High performance digital system with low voltage differential signal
5. High holding power
6. High connection reliability, good contact, firm and not loose
7. Have their own unique codes, codes and colors for different purposes
8. There are many types of integration

Applications:
1.Transferring data pictures
2.Multifunctional display
3.Infotainment system

4. Advanced Driver Assistance Systems (ADAS)
5. Telematics, multimedia, infotainment, GPS, navigation and cameras
6. Body control, safety, security and comfort


Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous
