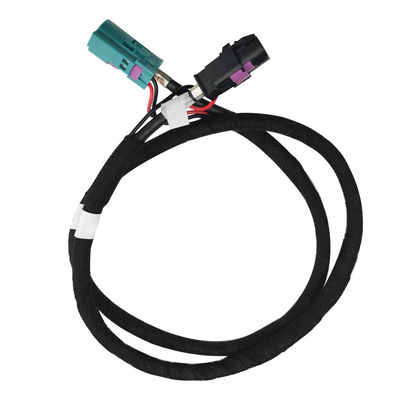

LVDS Extension HSD BMW Cable 4+2 Pin Straight Code Z To A Plug
| Place of Origin | CHINA |
|---|---|
| Brand Name | LEADSIGN |
| Model Number | HSD LVDS Cable |
| Minimum Order Quantity | 20 PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | HSD 4+2PIN Connector And Cable | Conversion Style | HSD To HSD |
|---|---|---|---|

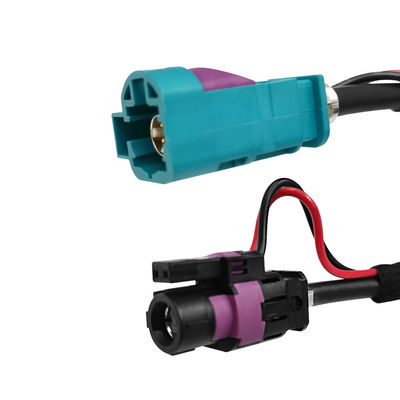

| Connector 1 | Code Z,Waterblue Color | Connector 2 | Code A,Black Color |
| Business Type | OEM&ODM | MOQ | 20 PCS |
| High Light | LVDS HSD BMW Cable,Straight HSD BMW Cable,A Plug LVDS Extension Cable |
||
Product Description
BMW HSD Cable 4+2-Pin Straight Code Z To A Plug LVDS Extension Cable
Product description:
HSD +2, +4, +8 power pin connectors, more variants have additional pins (MQS contacts) for power purposes.HSD is a homogeneous impedance controlled interconnect system that directly addresses the high speed data and low voltage requirements of real time automotive industrial applications. Its high data performance also protects against crosstalk and external interference, making the HSD cable and PCB connector system ideal for LVDS cameras, USB connections, Ethernet (IEEE 802.3) and FireWire (IEEE 1394) applications.
Main Feature:
1. Excellent data transmission
2. HSD +2, +4, +8 power pin connectors - more variants have additional pins (MQS contacts) for power purposes
3. Protection from crosstalk and other external sources of interference
4. 100 Ohm impedance
5. Excellent mechanical mating security and robustness
6. Color coding to prevent mismatching
7. MOQ:20 PCS
Applications:
1.Infotainment Systems
2.HD Entertainment Systems
3.Driver Assistance Systems
4.Telematics Applications
5.LVDS Camera System
Offer Custom:
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Technical Specifications:
| HSD | |
| Coding HSD+2 | A.B.C.D.E.F.Z |
| PIN | 4 signal pins,2 power pins |
| Cable | e.g.Dacar 535,Dacar 636 |
| Packing Unit | on request |
| Electrical Data | |
| lmpedance | 100Ω |
| Frequency range depending on cable type | DC to 6 GHz |
| Signal contact resistance | ≤10 mΩ |
| Outer contact resistance | ≤7.5 mΩ |
| Test voltage | 250 V rms |
| Working voltage | 60 V rms |
| Mechanical Data | |
| Mating cycles | ≥25 |
| Engagement force | ≤30 N |
| Disengagement force | ≥5N |
| Retention force latch | ≥ 110N |
| Environmental Data | |
| Temperature range | -40°C to +105°C |
HSD Coding:
FAQ:
1.Do you provide samples?
A: Yes, we can provide samples, but you need to pay the shipping cost.
A: Yes, we can provide samples, but you need to pay the shipping cost.
2. Q: Do you accept customizable orders?
A: Yes, we accept OEM and ODM.
3. What are your payment terms?
A: We accept L/C, T/T, Western Union.
4. Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
