H Code To Z Code Cable LVDS BMW , Durable HSD LVDS Transmission Cable

Place of Origin CHINA
Model Number BMW HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Item Auto Vehicle High-Speed Transmission Connector 1 Fakra HSD H Straight Plug
Connector 2 Fakra HSD Z Straight Plug Application Advanced Driving Assistant System (ADAS)
Service Support OEM&ODM Order MOQ 20 PCS
High Light

H Code Cable LVDS BMW


Z Code Cable LVDS BMW


Durable HSD LVDS Transmission Cable

Leave a Message
Product Description

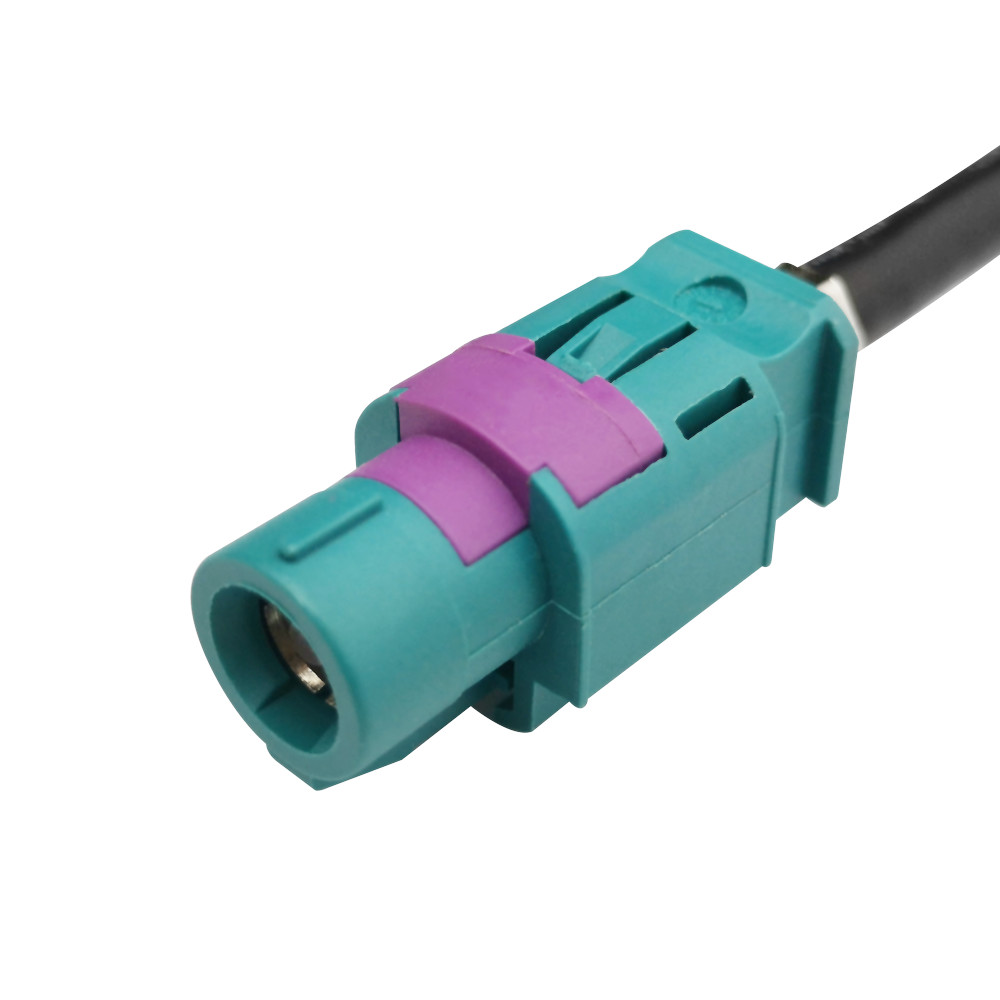

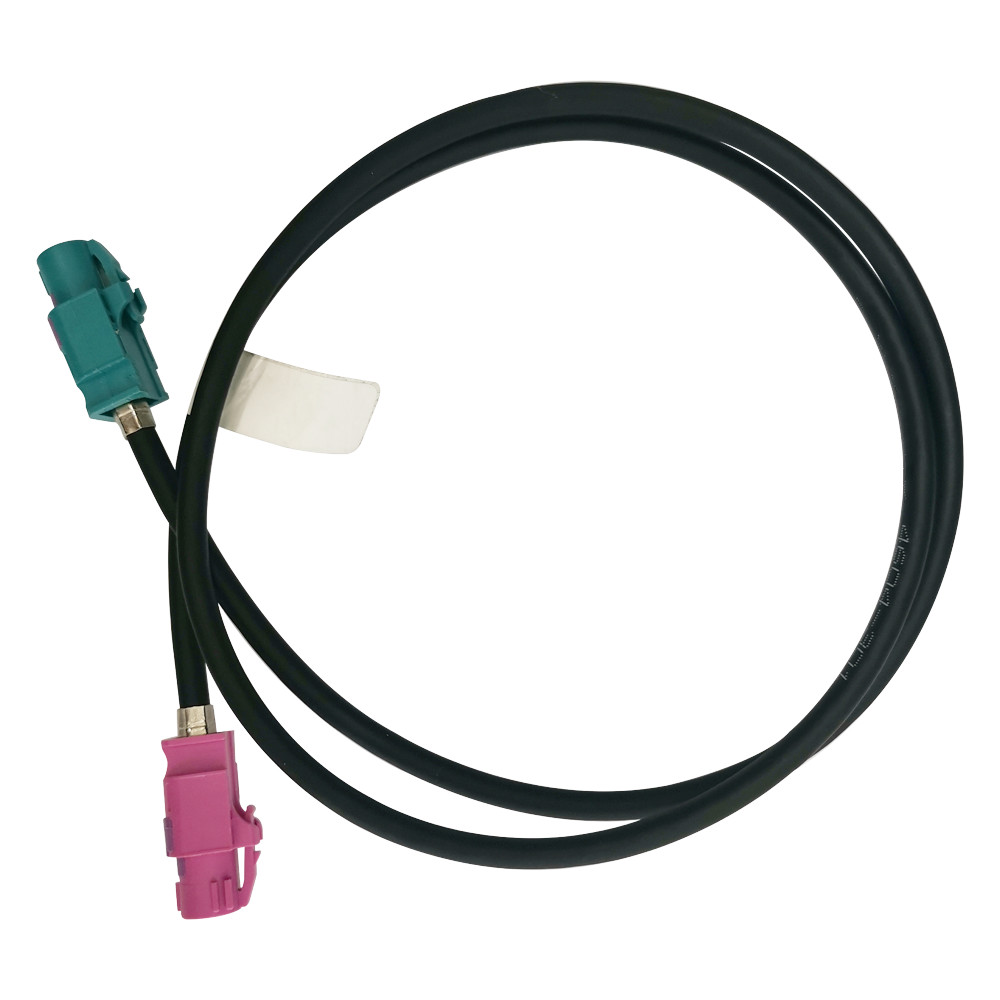

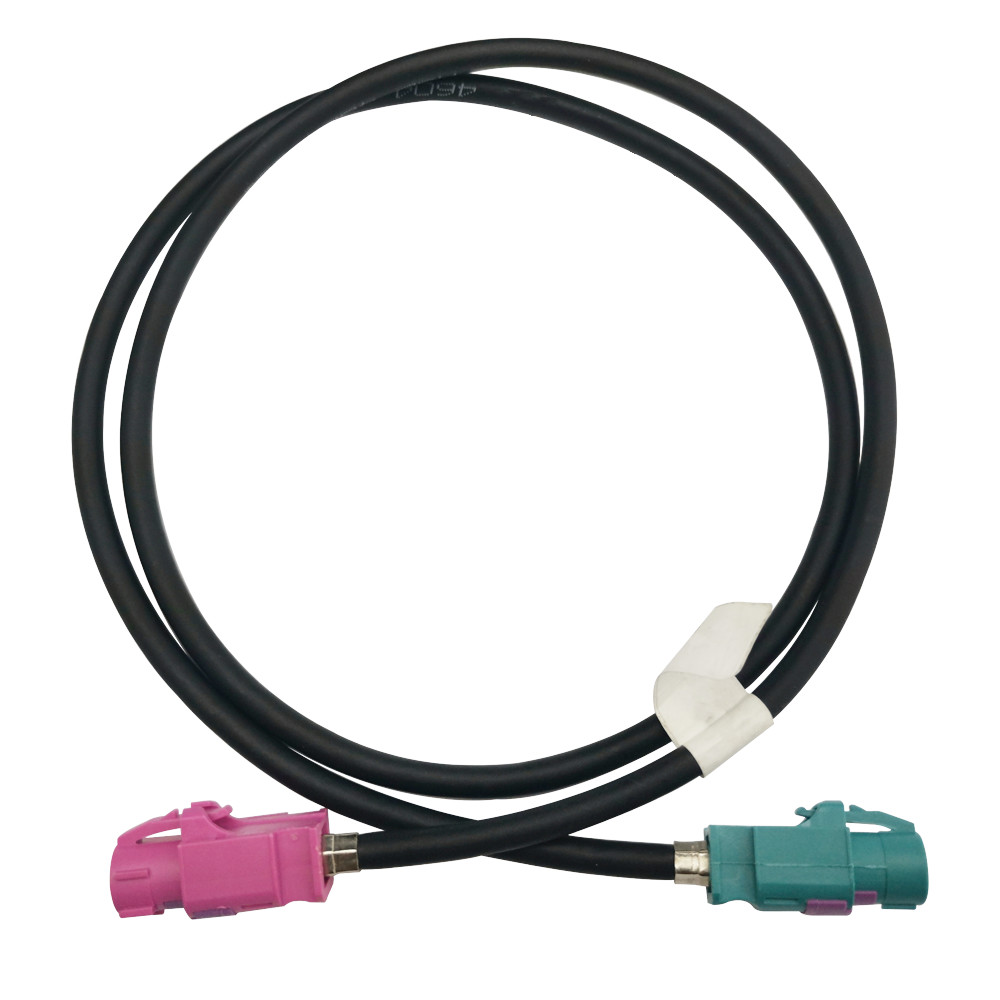

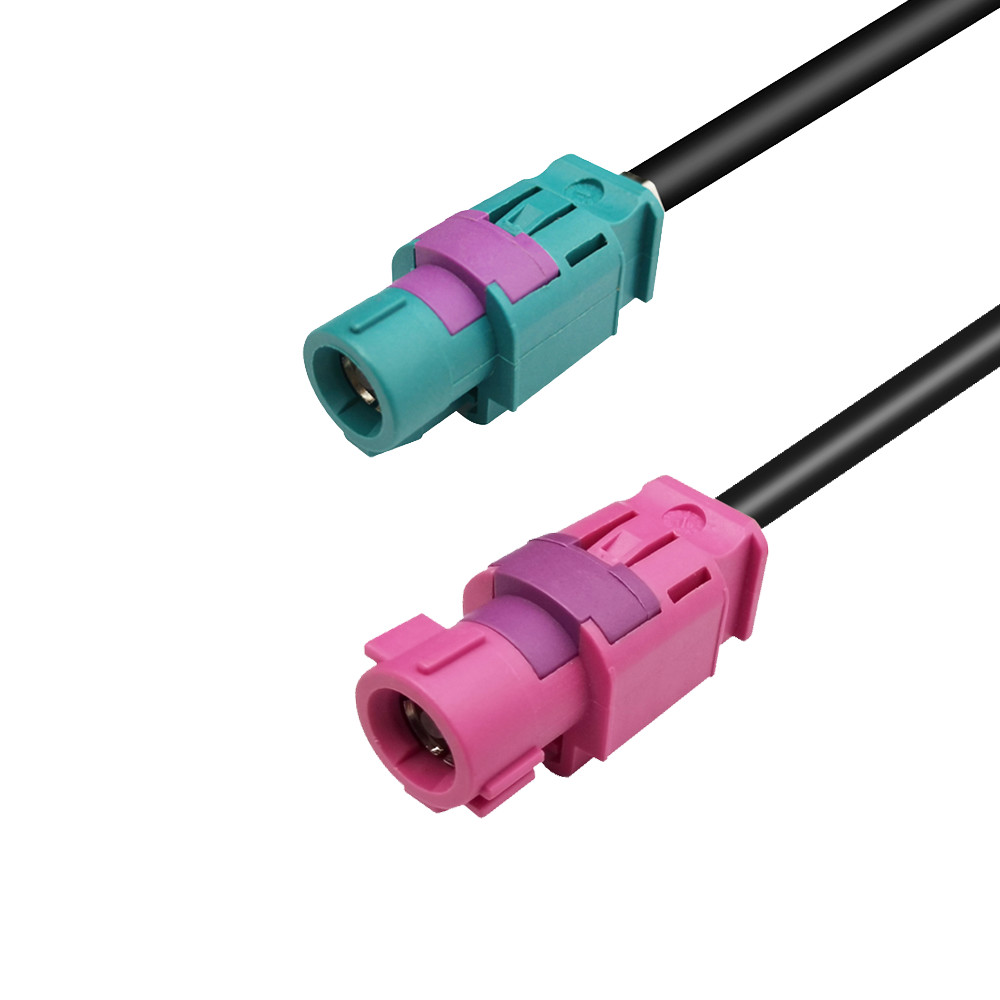

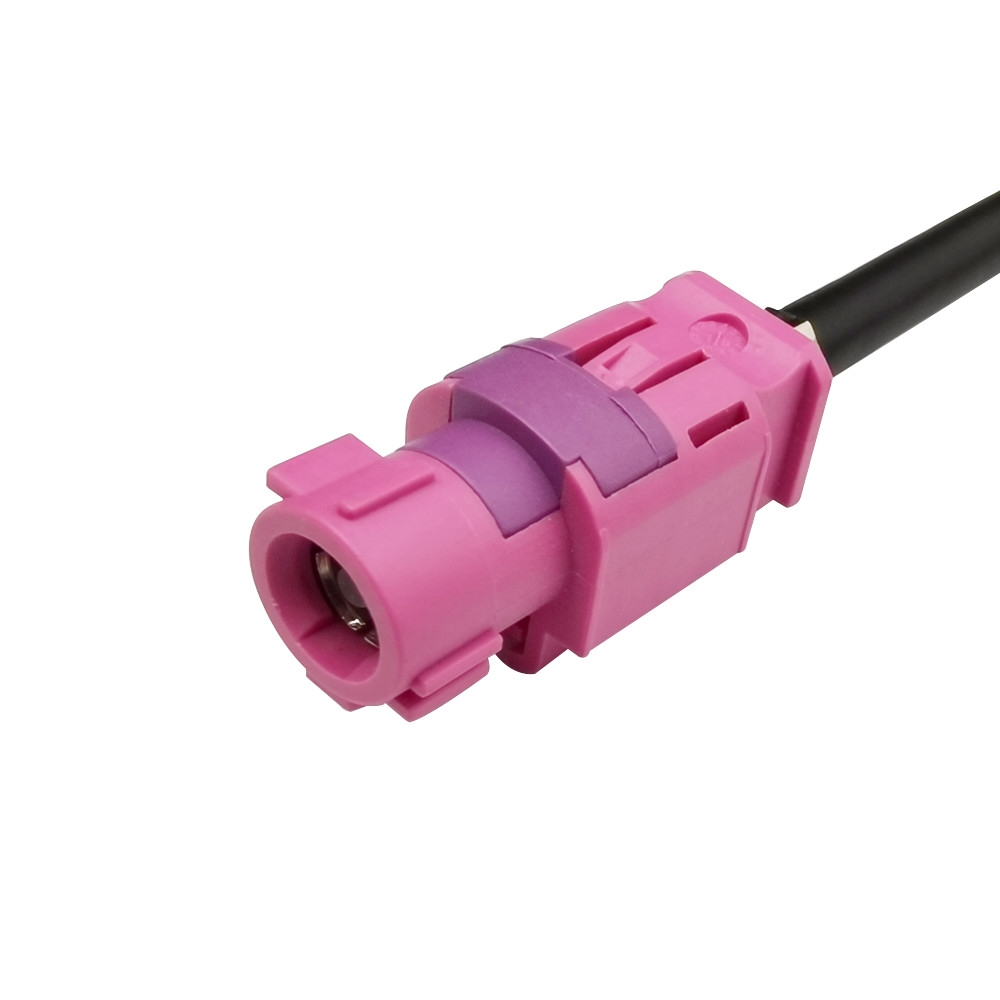

BMW HSD Cable HSD H Code To Z Code Connector LVDS Transmission Cables
Product description:
The development of wireless communication and in-vehicle digital content, HSD interconnection systems with high transmission speed, stable signal, high interference immunity and long service life are designed for the automotive market. For example, LVDS cameras, USB and IEEE 1394 applications.
Main Feature:

1.Crimp connection
2.Fast transmission speed. Data rate up to 6Gbps
3.Reliable and durable.Stable signal,Strong anti-interference ability,Long service life
4.High coding efficiency (different codings to eliminate misconnections are available on the plastic housing)
5. Compatible with LVDS, Ethernet and USB protocols
6. MOQ:20 PCS

1. Central display
2. High definition camera
3. High-speed data storage device
4. in-car infotainment system
5. advanced driver assistance systems (ADAS)
6. telematics, multimedia, infotainment, GPS, navigation and video
7. USB connectivity


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Characteristic impedance 100Ω
Frequency range DC-2 GHz
Operating voltage ≦100Volts rms
Insulation resistance 1000MΩ Min
Volts resistance 250Volts rms
Working current 1.5A ~ 3A DCdepending on cable type
Contact resistance Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min


HSD Coding:

BMW HSD LVDS Cable Adapter HSD 4-Core Z Code Connector Cable 0



1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.


2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.

3.Q: How can I get a sample to check the quality of your products?
A: You can contact our customer service, you only need to pay the fee, our sample is free of charge.


4.Q: What’s your payment term?
A: We accept L/C,T/T and Western Union.
