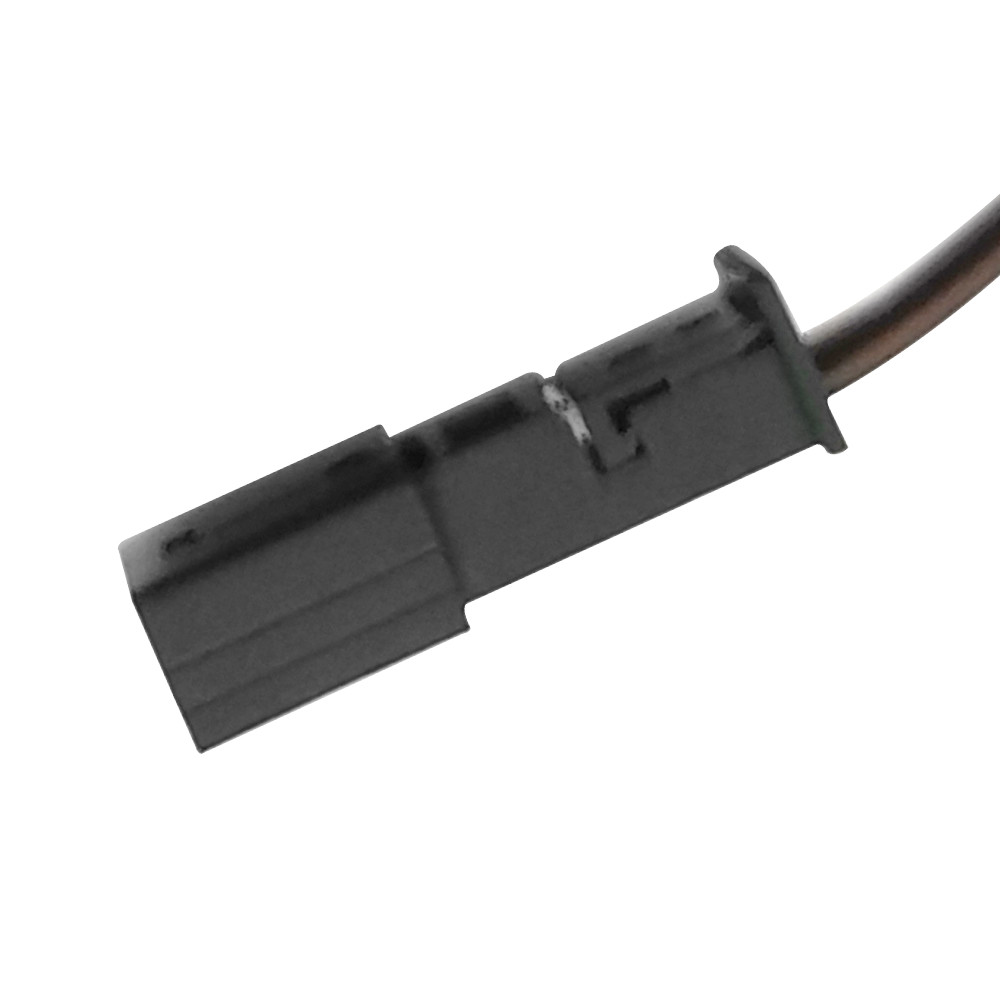

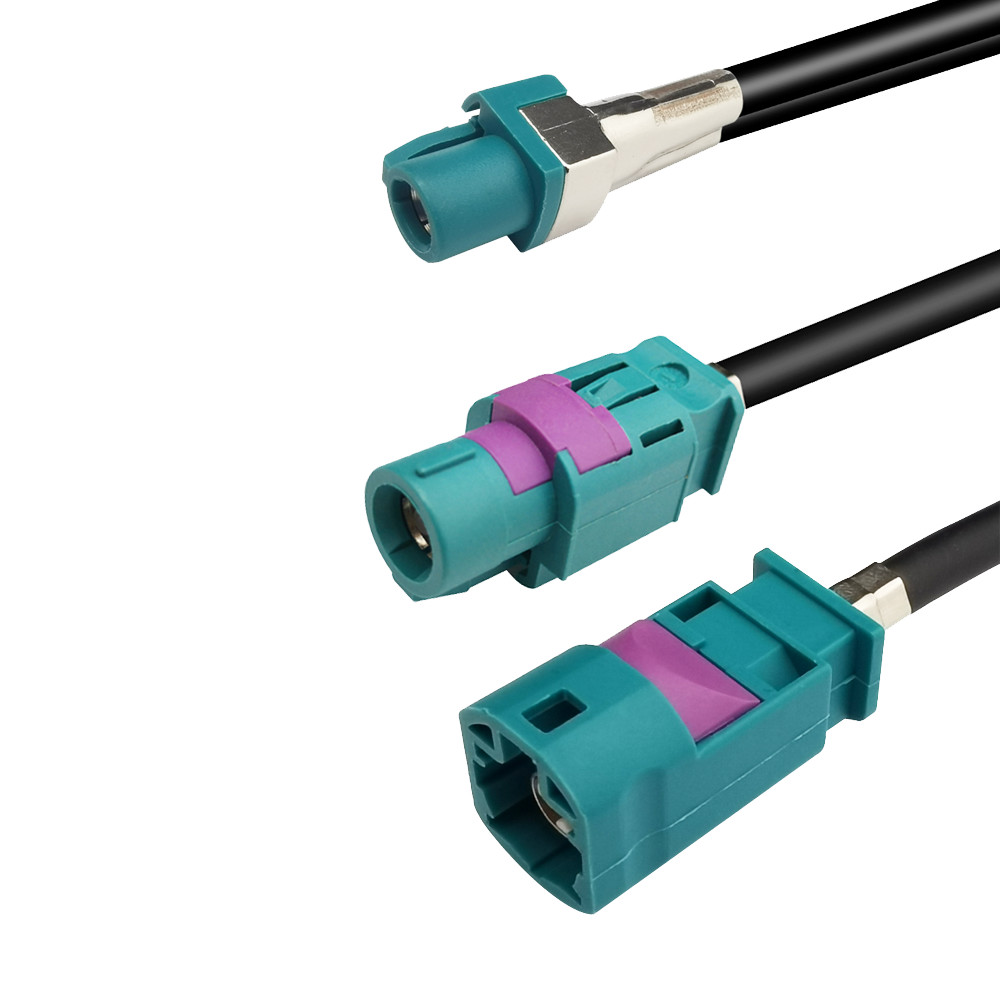

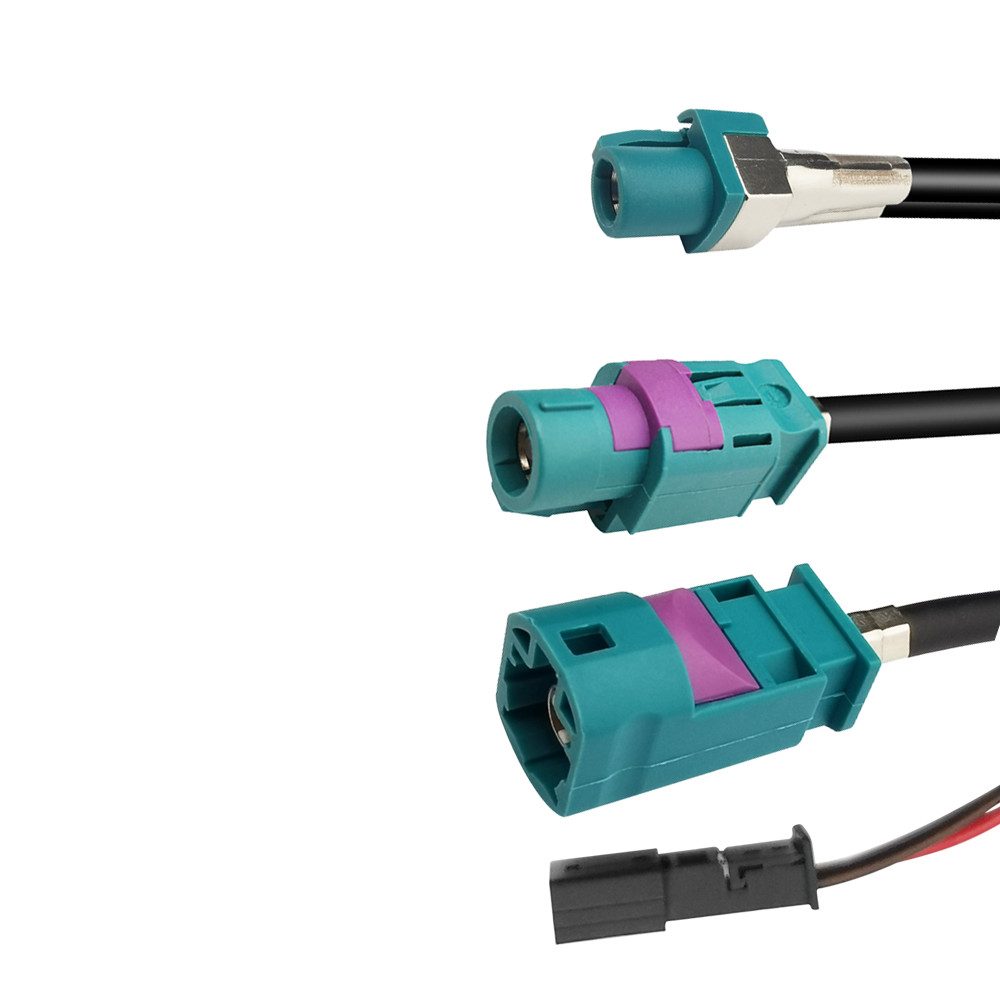

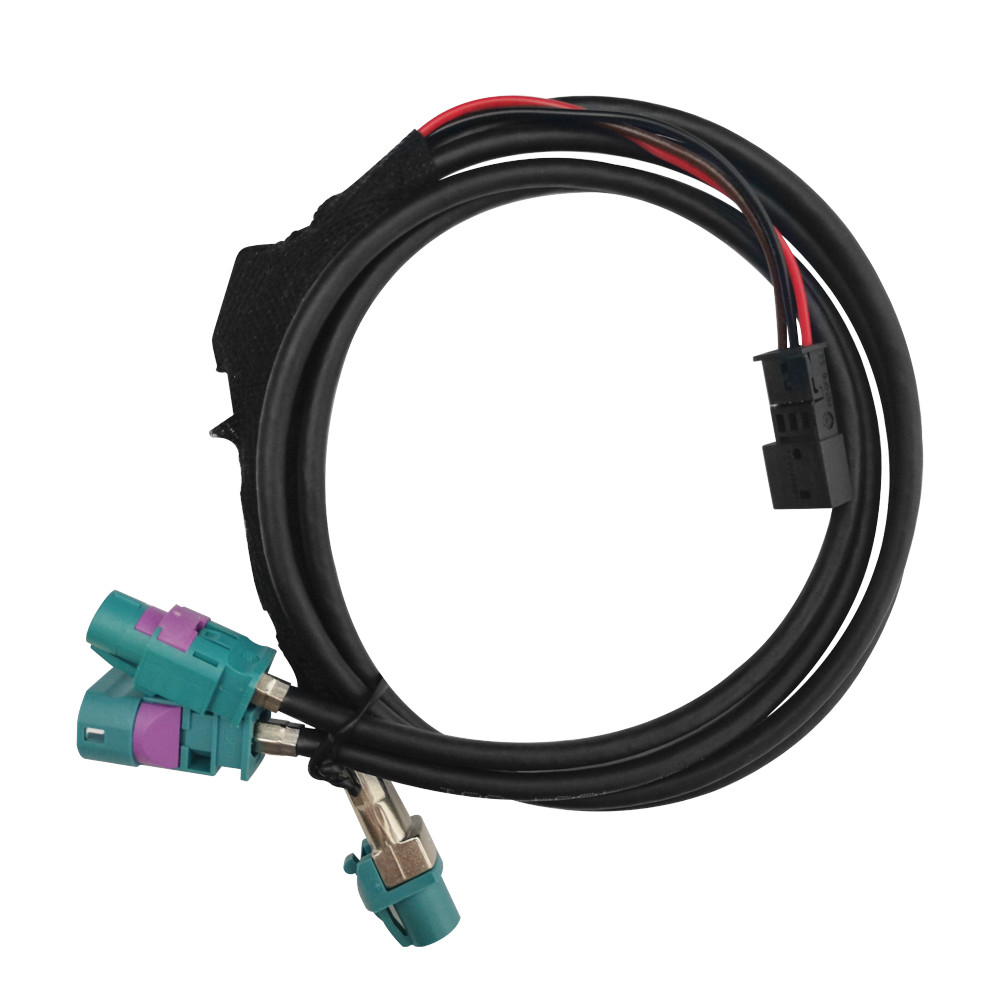

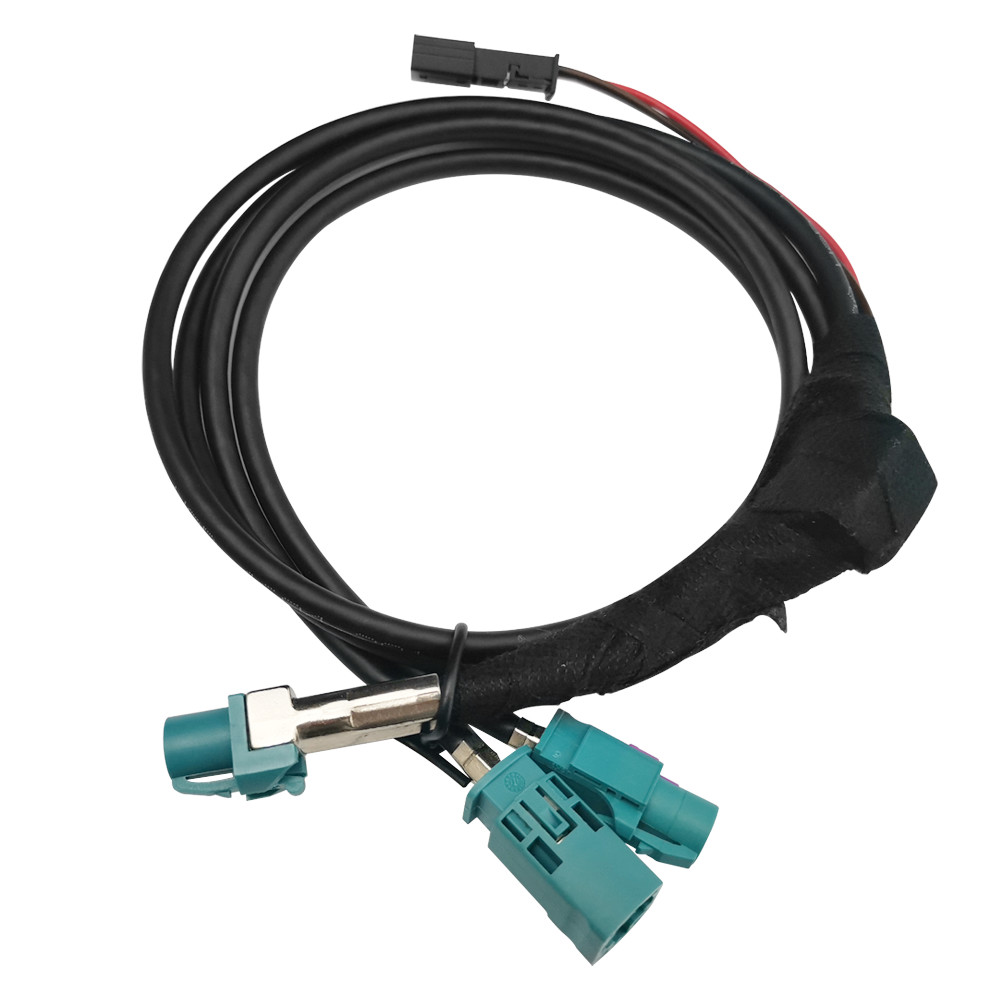

Automotive 4 Pin HSD LVDS Cable , Z Code HSD Connector Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number BMW HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Keywords BMW HSD Cable Item Name BMW FAKRA HSD LVDS 4 Pin
Gender Male / Female Application Automotive, Vehicle Infotainment Modules, Cameras
Service OEM & ODM Is Accepted MOQ 20 PCS
High Light

Automotive HSD LVDS Cable

,

4 Pin HSD LVDS Cable

,

Z Code HSD Connector Cable

Leave a Message
Product Description

BMW HSD LVDS Cable Adapter HSD 4-Core Z Code Connector Cable



Product description:

High Speed Data (HSD) connector systems are focused on various motor vehicle applications such as connecting displays, inner compartments of rear seat infotainment modules. Featuring minimal dimensions to meet the needs of global automotive applications such as LVDS cameras, USB and IEEE applications.



Main Feature:

1. Meets USCAR requirements
2. Suitable for sealed applications
3. Gigabit video interface (GVIF)
4. Protection against crosstalk and interference from outside
5. Capable of high-speed data transfer such as USB, LVDS and Ethernet
6. Automotive-compliant color coding and keylock efficiency
7. Crimp connections for cable-side connectors
8. MOQ:20 PCS



Applications:

1. Central display
2. Rear entertainment system
3. Digital instrument panel
4.USB connection
5. Advanced Driver Assistance System (ADAS)
6. Telematics, multimedia, infotainment, GPS, navigation and camera



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Impedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Working Voltage 60 V rms
Temperature range -40°C to +105°C
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
test voltage 250 V rms
Coupling attenuation

≥75 dB,DC to 1 GHz

≥ 65 dB,1 GHz to 2 GHz

Working Current ≤ 1.5A DC
Durability > 25 times
Signal contact resistance ≤ 10 mΩ
outer contact resistance ≤7.5 mΩ
Function Data Transfer+Video Output



HSD Coding:

Automotive 4 Pin HSD LVDS Cable , Z Code HSD Connector Cable 0



FAQ:

1.Q:Can I get the sample free?
A: Yeah, sample is available, but you need to pay the shipping cost.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
