Braid Shield BMW HSD Cable B To D Lightweight For Automotive

Place of Origin China
Brand Name LDS
Certification E-Mark
Model Number LDS-HSDBF-HSDDF
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Carton size 29*13*11CM,20pcs per carton
Delivery Time 7~14 work days
Supply Ability 200000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100Ω Pins 4P
Shielding Braid Length 20CM/0.5M/1M/Customized
Service OEM & ODM Is Accepted MOQ 20PCS
High Light

Braid BMW HSD Cable

,

Automotive BMW HSD Cable

,

Lightweight Automotive HSD Cable

Leave a Message
Product Description

HSD Cable Automotive High-speed Transmission HSD B To HSD D For BMW



Description:

HSD interconnects enable excellent data transmission via LVDS (Low Voltage Differential Signaling), preventing crosstalk and other external sources of interference. High level digital interconnects such as infotainment systems, HD entertainment systems, driver assistance systems, telematics applications or LVDS camera systems can all use this high level digital interconnect.



Key Feature:

1. Excellent data transmission
2. Protection from crosstalk and other external sources of interference
3. High connection reliability with good contact and firmness without loosening
4. Mechanical and color coding to prevent mismatch between different signal paths
5. Primary and secondary locking system leads to high assembly security
6. Compliant with LVDS, Ethernet and USB protocols
7. Available for a wide range of coaxial cables (RG58, RG174, RG316, RTK031, RG178, etc.)

8. MOQ:20PCS





Technical Specifications:

Electrical Performance
 Impedance  100 Ω
 Frequency Range  DC to 4 GHz
 Return Loss  ≥-26 dB ,DC to 1 GHz
 Insertion Loss  ≤0.1 x √f(GHz) dB
 Insulation Resistance  ≥ 100 MΩ
 Center Contact Resistance  ≤ 5 mΩ
 Voltage Rating  335 V rms
 Working Voltage  100 V rms
 Contact Current  ≤ 1 A DC
Mechanical Performance
 Mating Cycles  ≥ 25 Time
 Cable Retention Force  ≥80 N

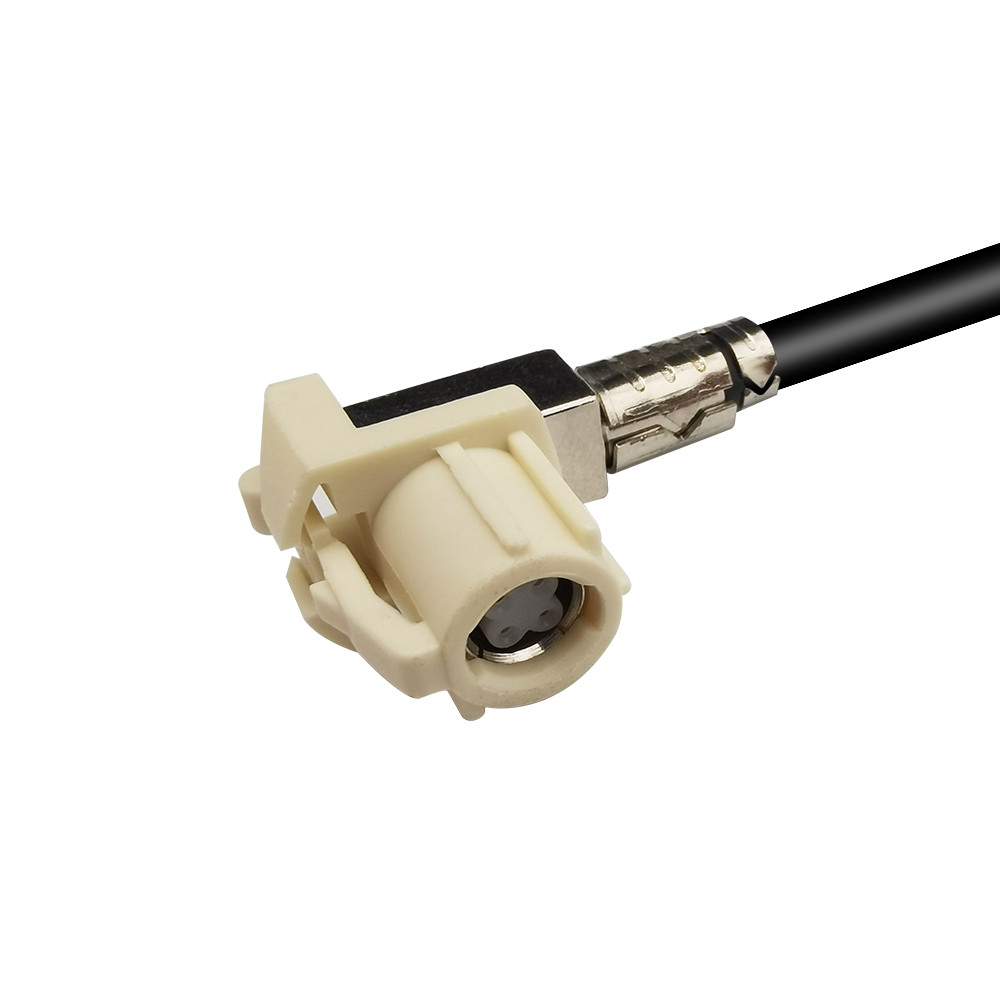

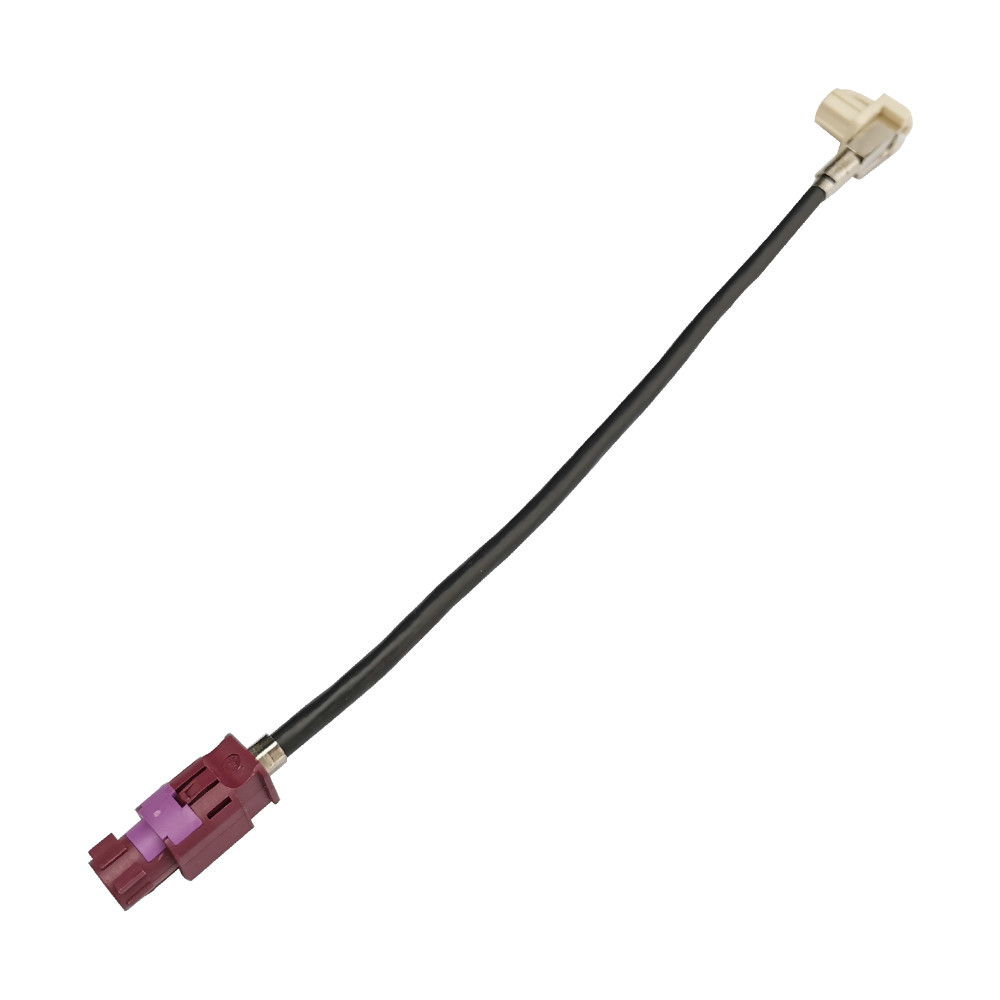

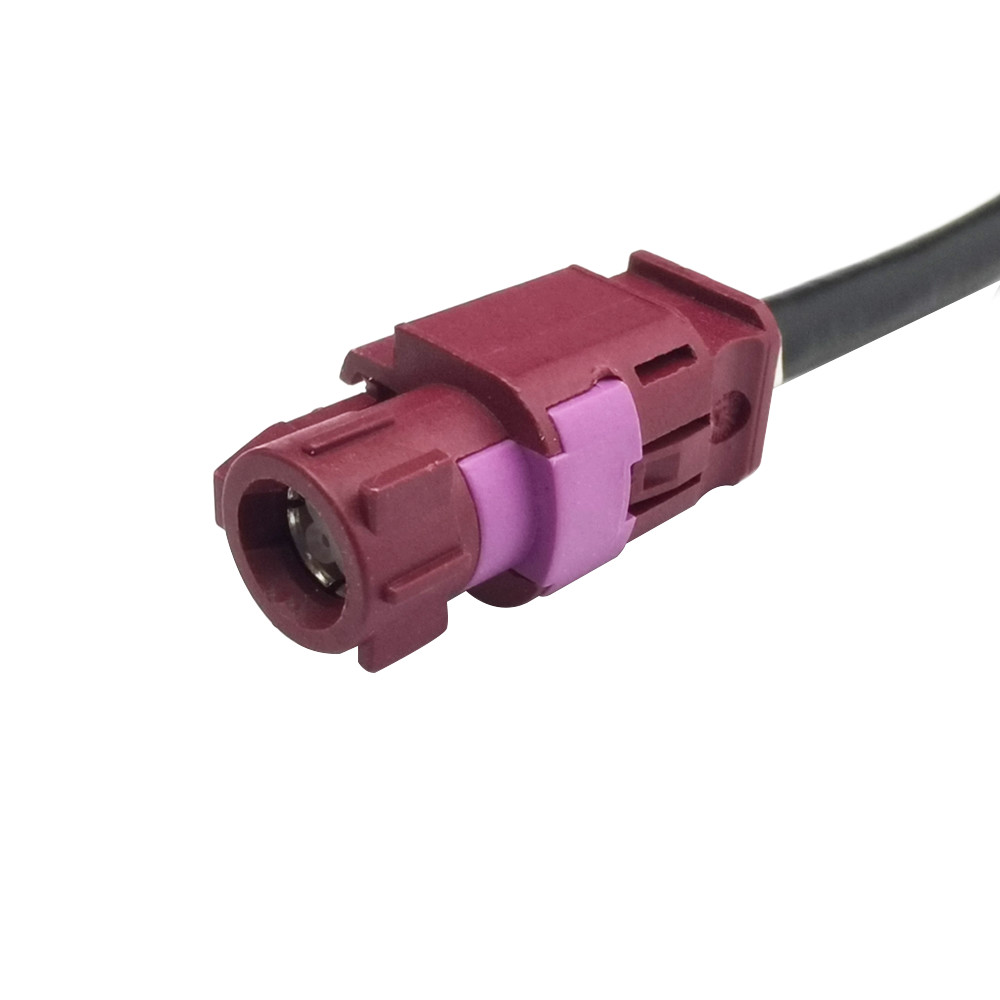

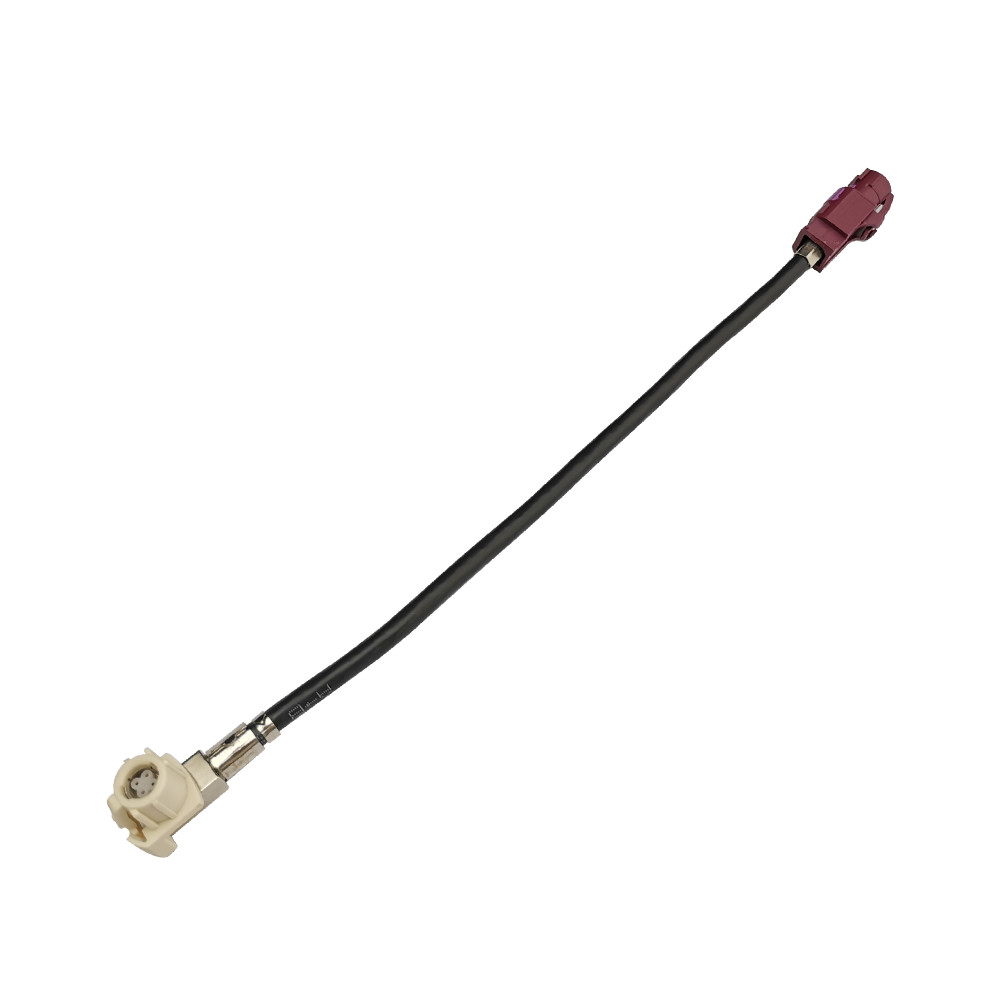

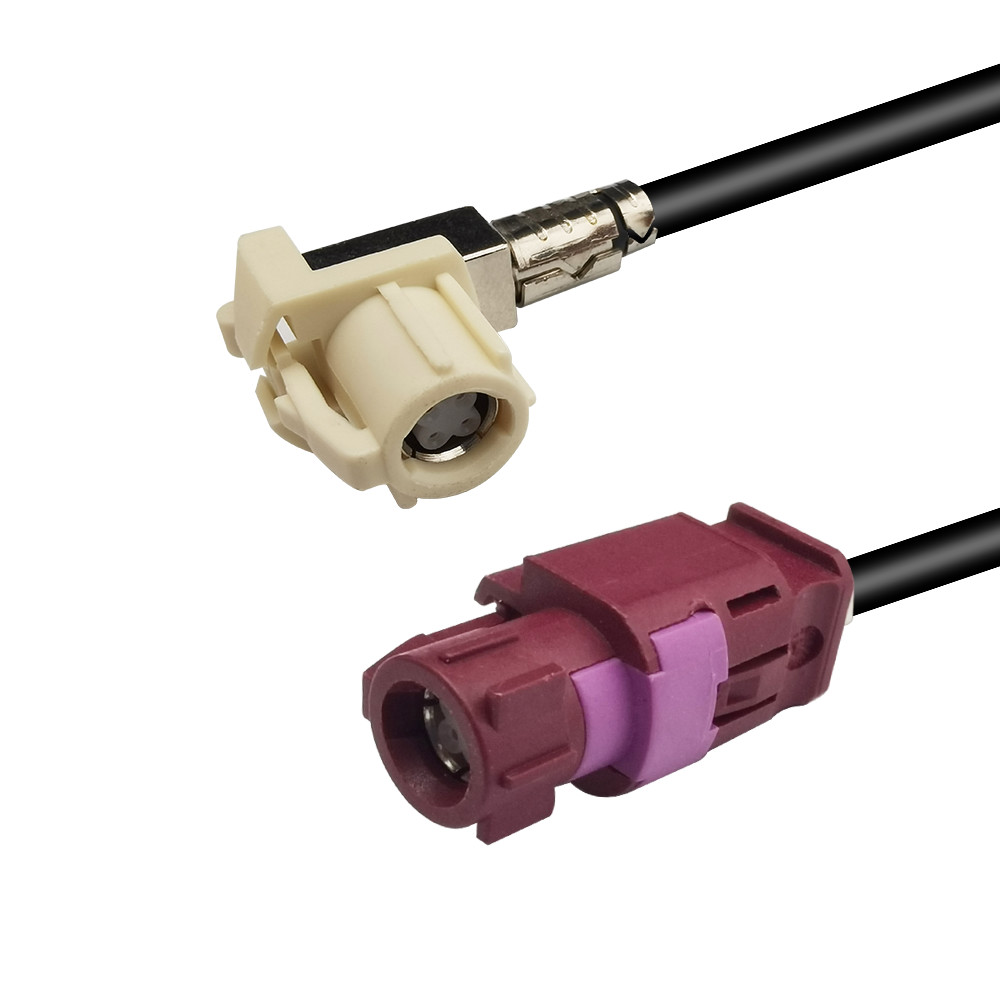

Detail image:

Braid Shield BMW HSD Cable B To D Lightweight For Automotive 0

FAQ:

1.Q:How do I apply for samples?

   A:You can cantact our customer service,you only need to pay the freigth, our samples are free.



2.Q:What if I don't see the connector I want?

   A:You just need to send the producct to us, we have professional engineering to help you answer.



3.Q:How can I get your best price?

   A:You can send us your consumption requirement and model by email.



4.Q:How do I customize it?

   A:You can send your needs to us bu email or message, we have professional customer service and docking with you.
