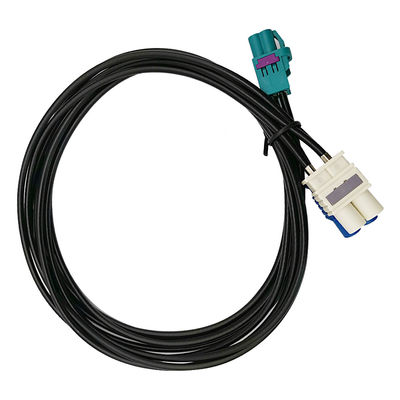

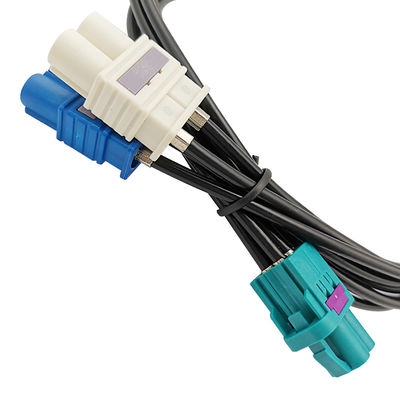

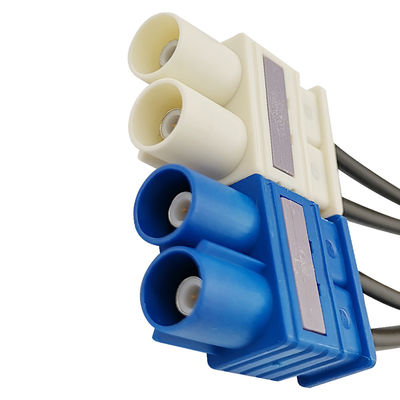

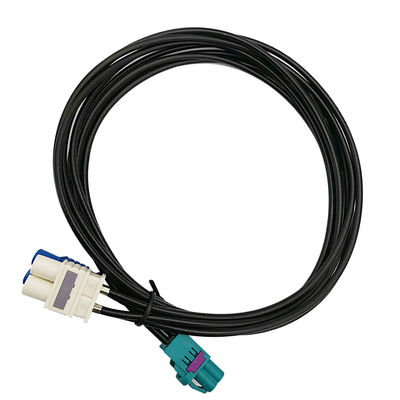

2 In 1 RF MINI FAKRA Coaxial Cable Dual Port Connector To Z Code For RG174

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini Fakra Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type COAXIAL, Mini Fakra Cable Assembly Orientation Straight
Number Of Ports Single Port / Dual Port Gender Male/Female
Application Telematics, Multimedia, Infotainment, GPS, Navigation Serives OEM ODM Accept
High Light

2 In 1 FAKRA Coaxial Cable

,

RF FAKRA Coaxial Cable

,

RG174 MINI FAKRA Cable

Leave a Message
Product Description

2 In 1 RF Dual Port Fakra Connector To Z Code MINI FAKRA Cable For RG174

Product description:
Mini-FAKRA is a space-neutral, high-performance interface that requires up to 80% less installation space than conventional FAKRA products. Typical applications include 360° surround view cameras, self-driving cars, GPS navigation, 3D dashboards, etc.


Main Feature:
1. Small package size, ideal for use in small spaces.
2. Low insertion force required.
3. Impact resistant.
4. Color coded housing.
5. Mechanical keying option to prevent mis-insertion.
6. Can be used in multi-port configurations.
7. Enclosed cable interface.
8. Up to 75% space reduction.


Applications:
1.360° Surround View Camera
2.Self-driving cars
3.Advanced Assisted Driving Systems (ADAS)
4.GPS Navigation
5.High-bandwidth infotainment system
6.Remote start and vehicle control
7.Telematics communication



Offer Custom:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:



Body Material Brass / Phosphor Bronze / Zinc Diecast
Body Finish Gold / Matte Tin / Nickel / Tin
Contact Material Beryllium Copper / Brass / Phosphor Bronze
Contact Finish Gold
Insulator Material LCP / PBT / PTFE
Impedance 50Ω
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Contact Current (dependant on cable size) Contact Current (dependant on cable size)
Power Handling 95 W Max @ 1 GHz @ 25ºC
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On
