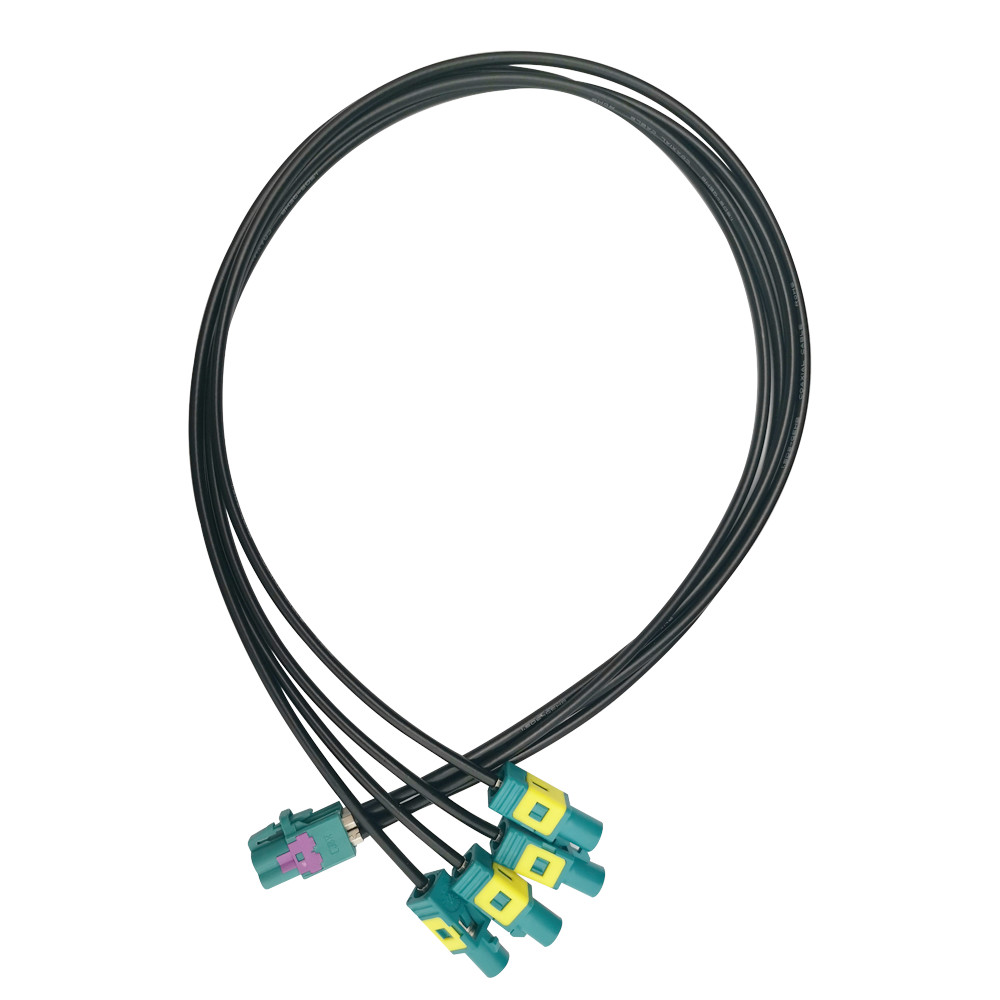

HFM MINI FAKRA Coaxial Cable 4 In 1 Stable For BMW Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini FAKRA Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type COAXIAL, Mini FAKRA Cable Assembly Code Z
Orientation Straight Color Water Blue
Application Automotive, High Speed Cable Networking / ADAS Business Type OEM&ODM
High Light

HFM FAKRA Coaxial Cable

,

4 In 1 FAKRA Coaxial Cable

,

Stable FAKRA Automotive Coax Cable

Leave a Message
Product Description

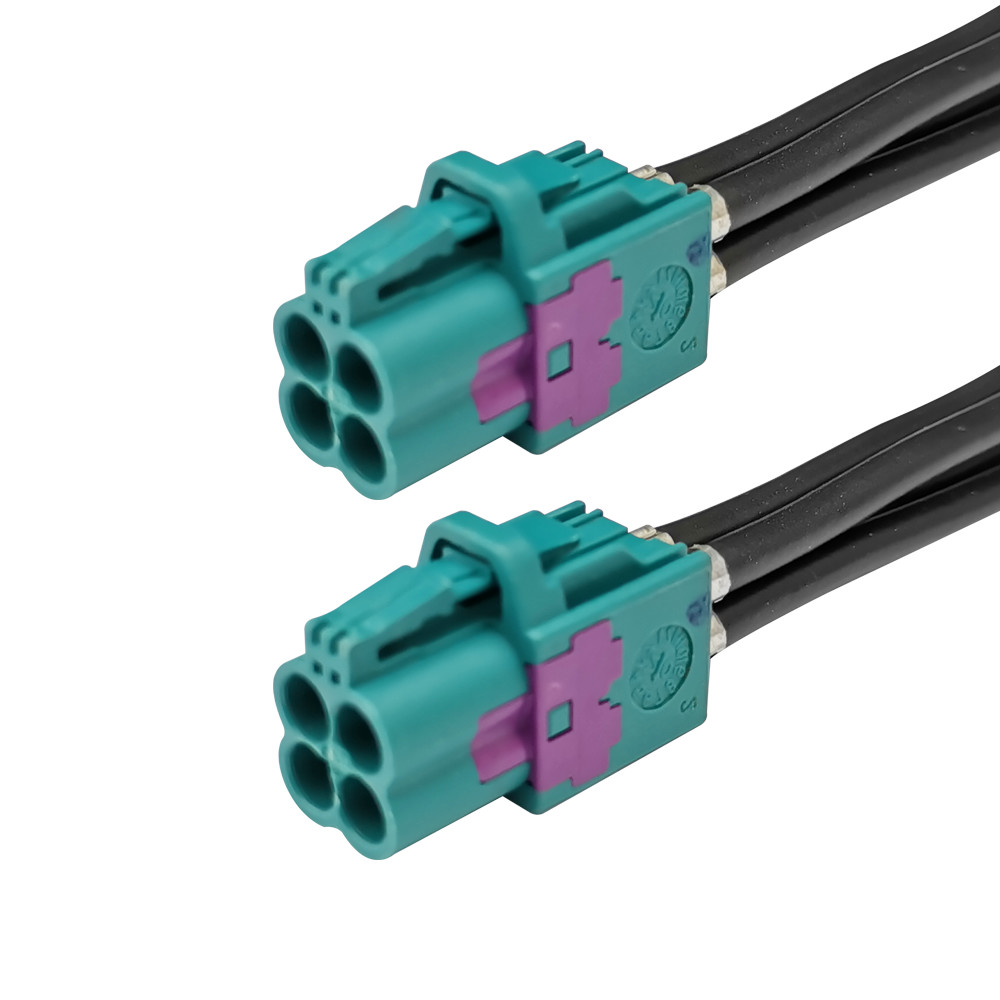

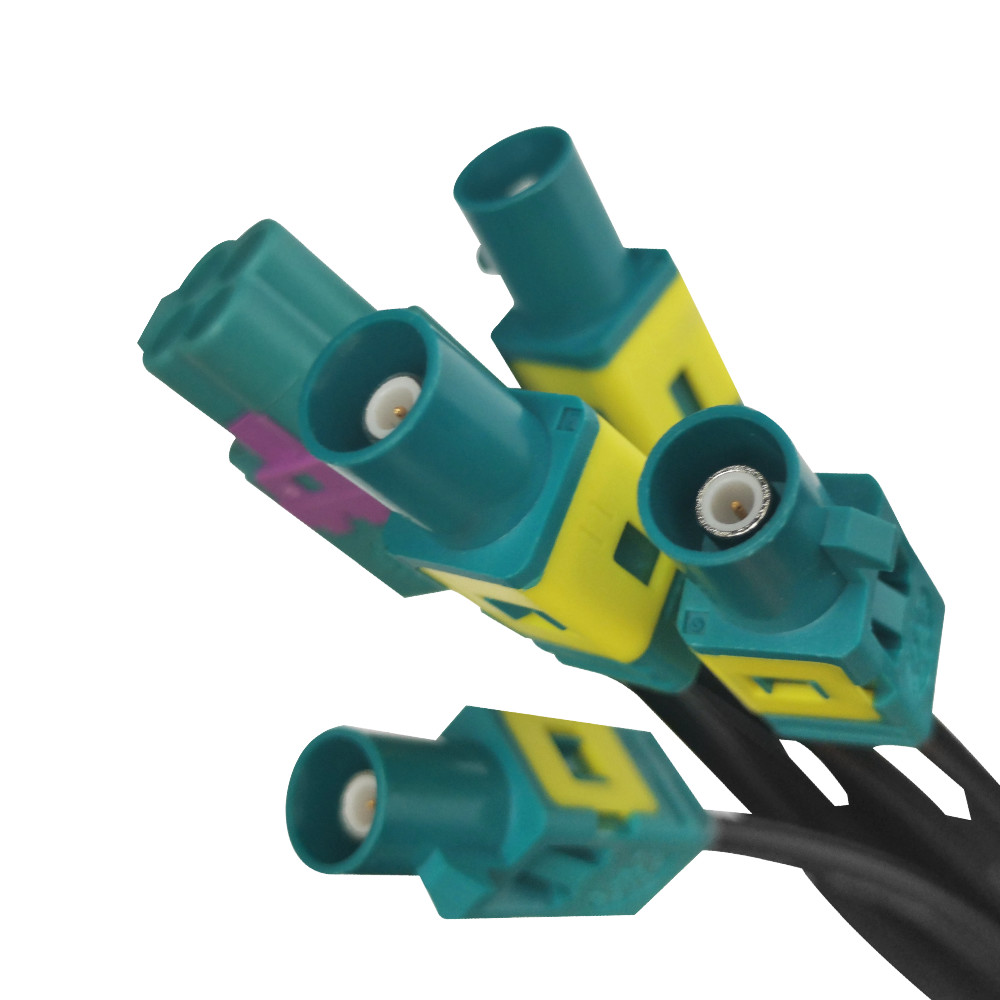

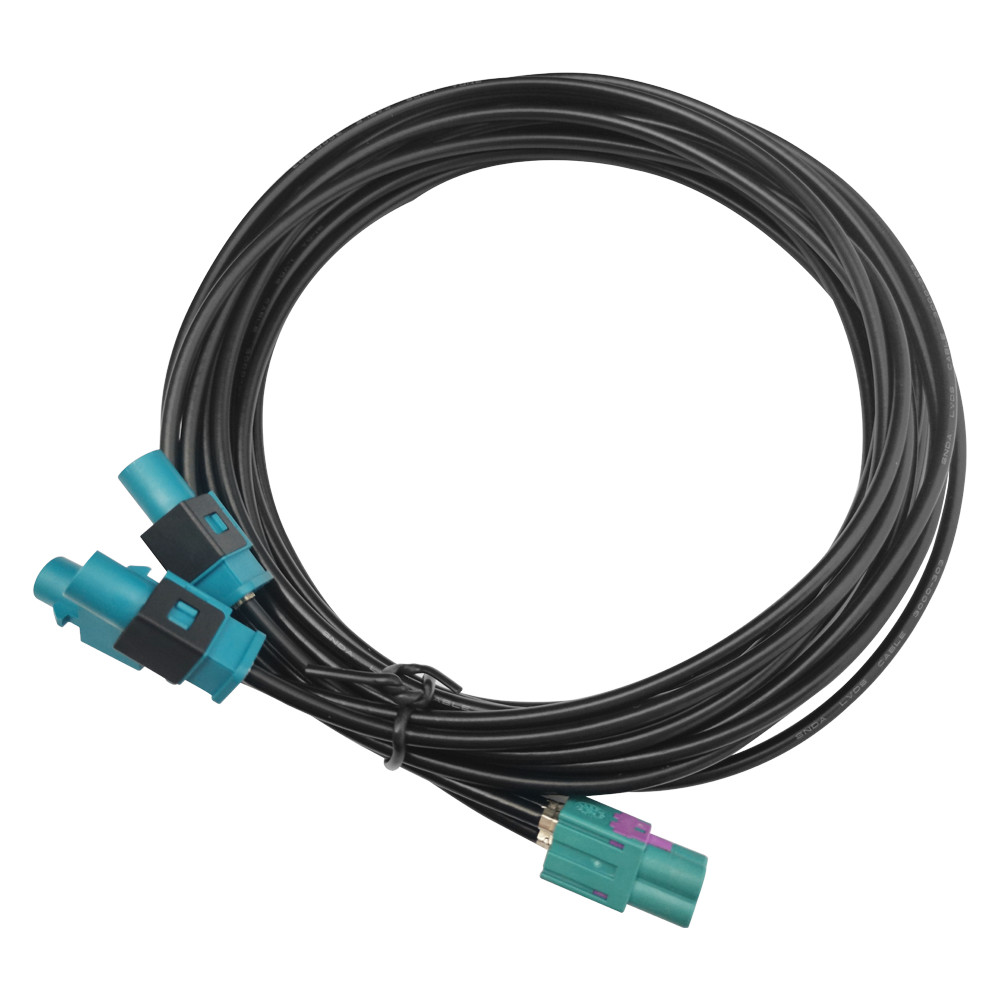

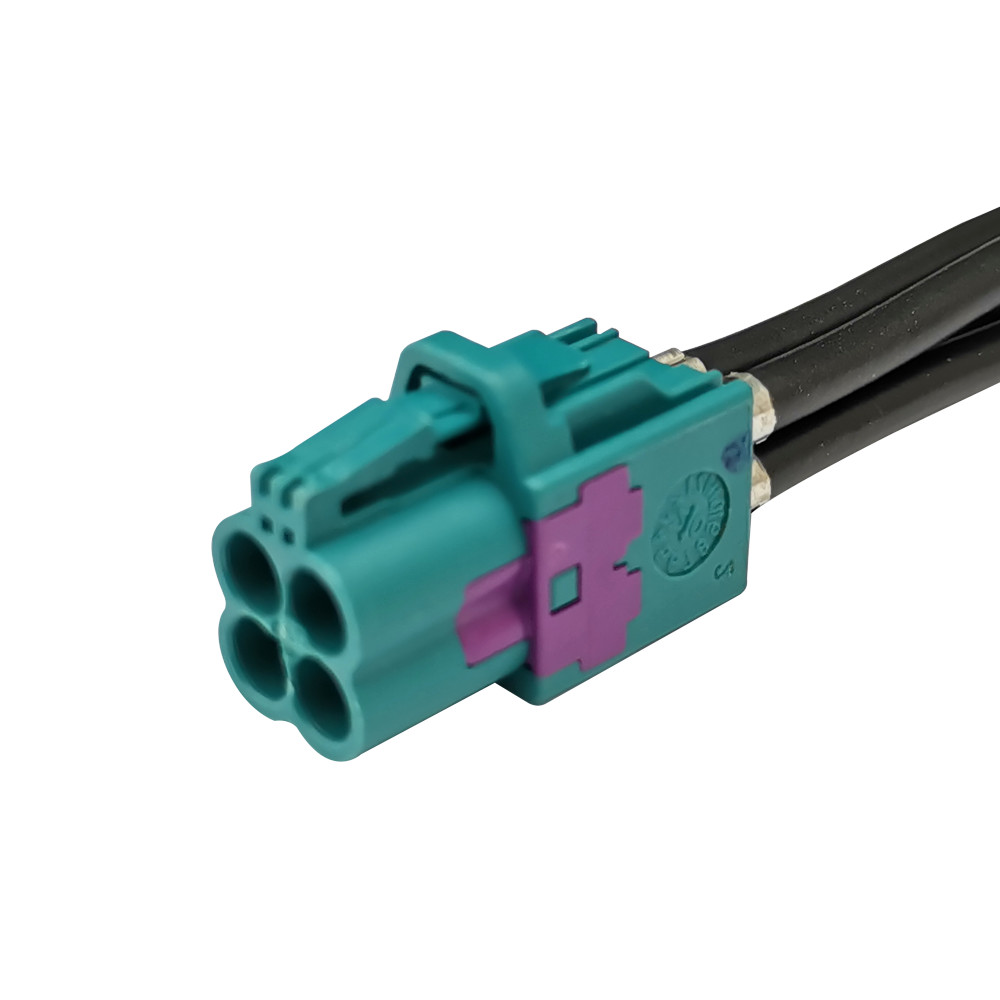

High Speed MINI FAKRA 4 In 1 HFM Connectors For BMW Automotive Coaxial Cable



Product description:

With the rapid development of automotive technology, more and more intelligent features that help improve driving and riding comfort are being added to vehicles, and the innovative design of the HFM (High-Speed FAKRA-Mini) addresses the growing demand for cost savings and reduced weight and size.



Main Feature:

1.Small dimensions – optimized used of space
2.Highest mechanical robustness
3.Modular system – saving installation space by as much as 80 %
4.Cost optimized
5.Real-time data transmission
6.CPA – optional Connector Position Assurance
7.Waterproof variants



Applications:
1.Autonomous Driving
2.Driver Assistance Systems
3.Navigation
4.Infotainment
5.Rear Seat Entertainment
6.Internet



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Impedance 50Ω
Frequency DC to 15GHz
Center Contact Resistance ≤ 5 mΩ
Outer Contact Resistance ≤ 5 mΩ
Working Voltage 335 V rms
Power Current ≤1A DC
Retention Force Latch ≥110N
Retention Force Primary Lock ≥80N
Retention Force Secondary Lock ≥ 80N
Coding Efficiency ≥ 200N



FAQ:

1.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


2.Q: Can your company accept customize?
A: Welcome OEM & ODM.



3.Q:How can l get the FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
