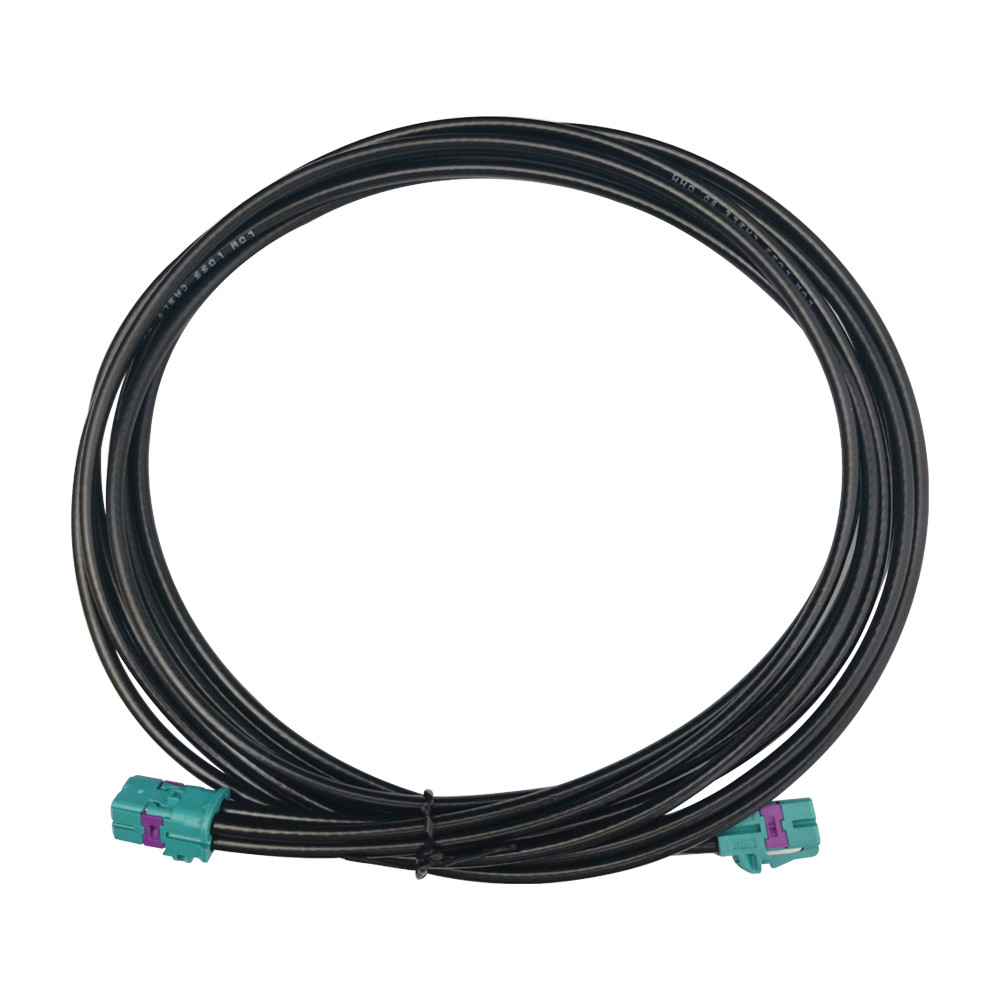

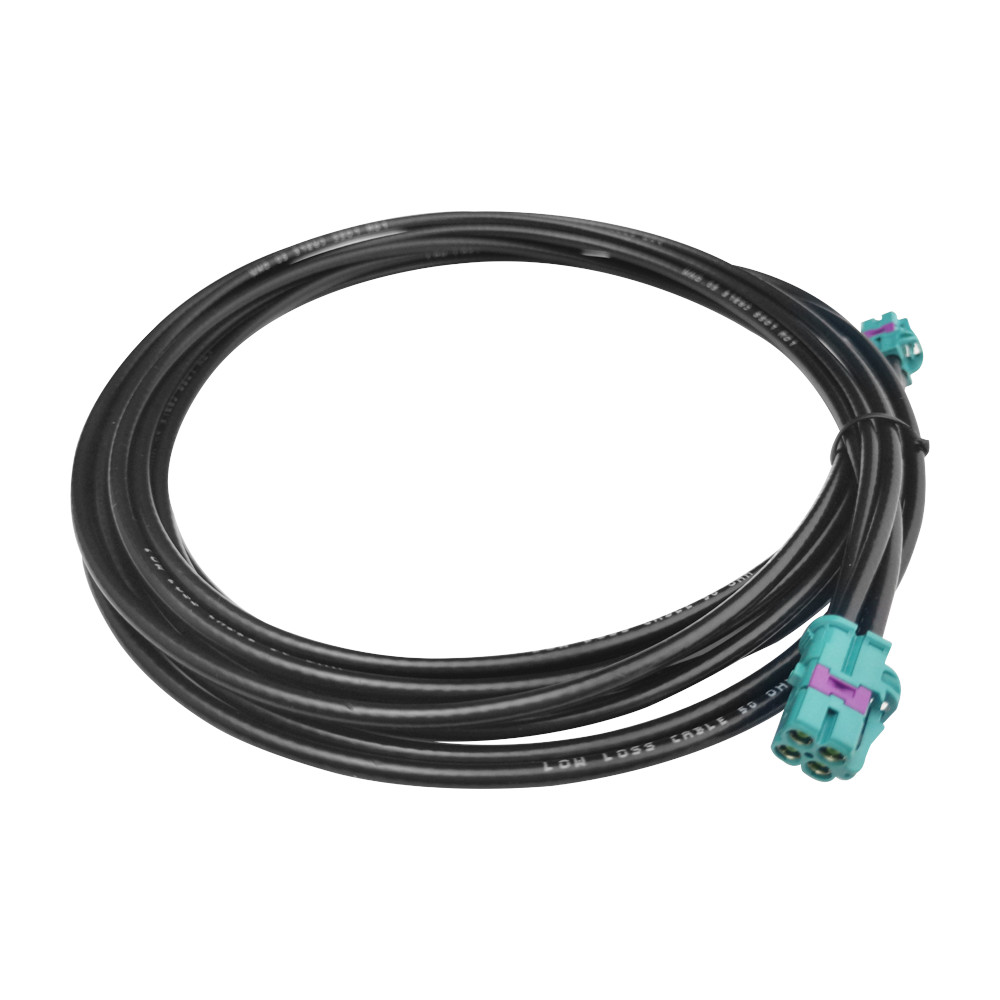

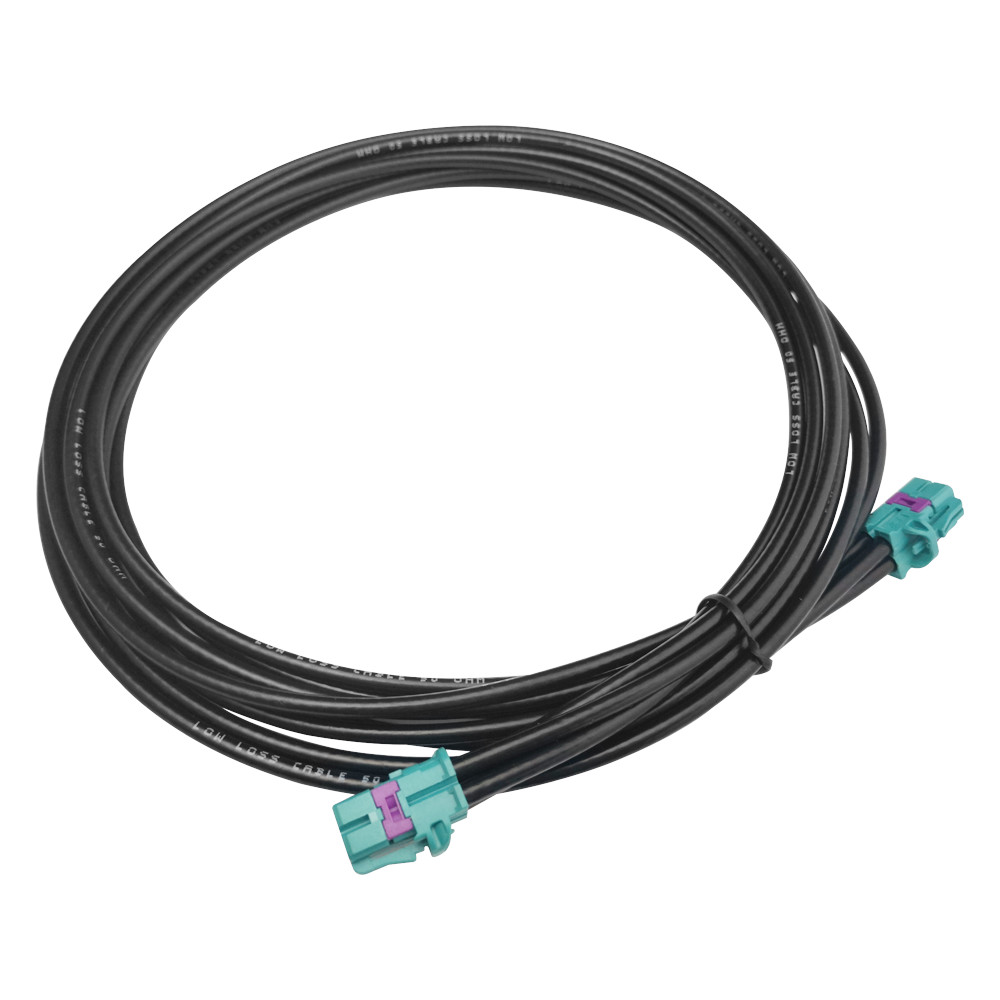

Car 50 Ohm FAKRA Z Cable , Stable FAKRA Automotive Wiring Harness

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini Fakra Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type COAXIAL, Mini Fakra Cable Assembly Impedance 50 Ohm
Operating Temperature - 40 To 105 Degree Orientation Straight
PIN 4P Color Waterblue
High Light

Car FAKRA Z Cable

,

50 Ohm FAKRA Z Cable

,

Stable FAKRA Automotive Wiring Harness

Leave a Message
Product Description

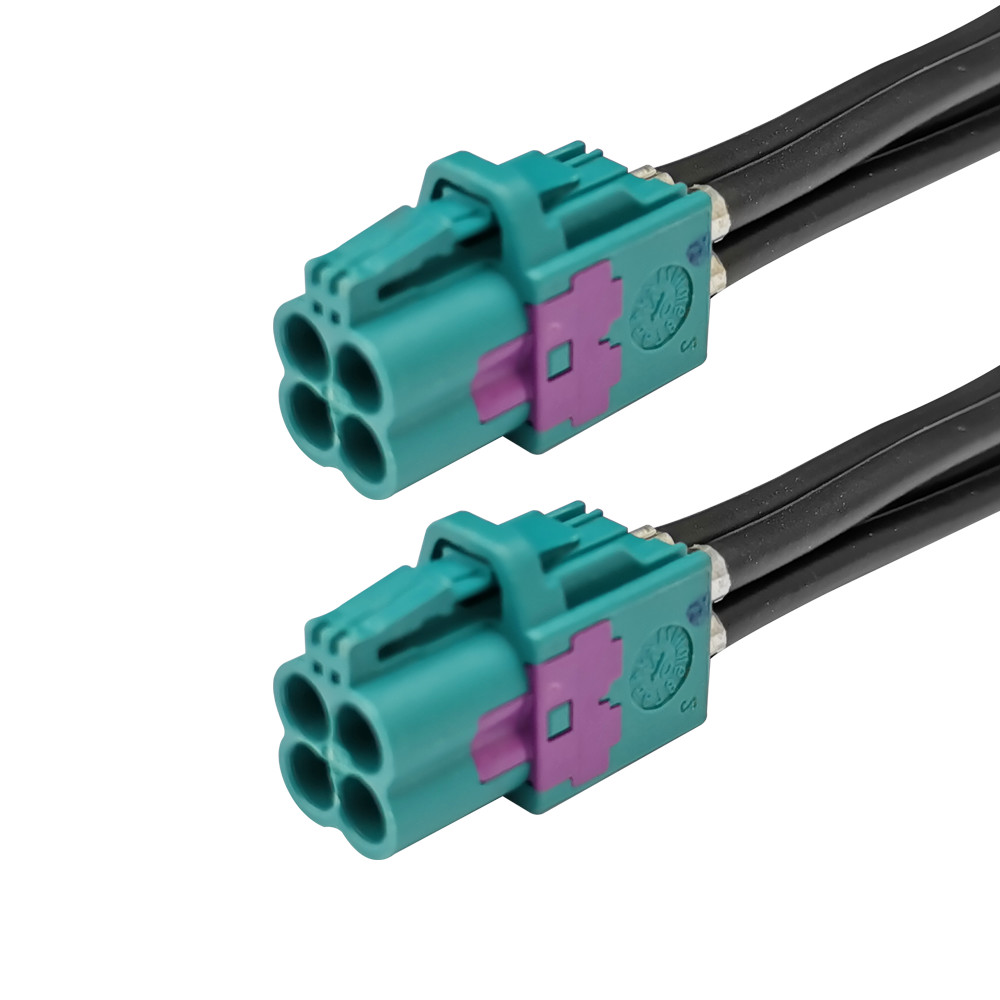

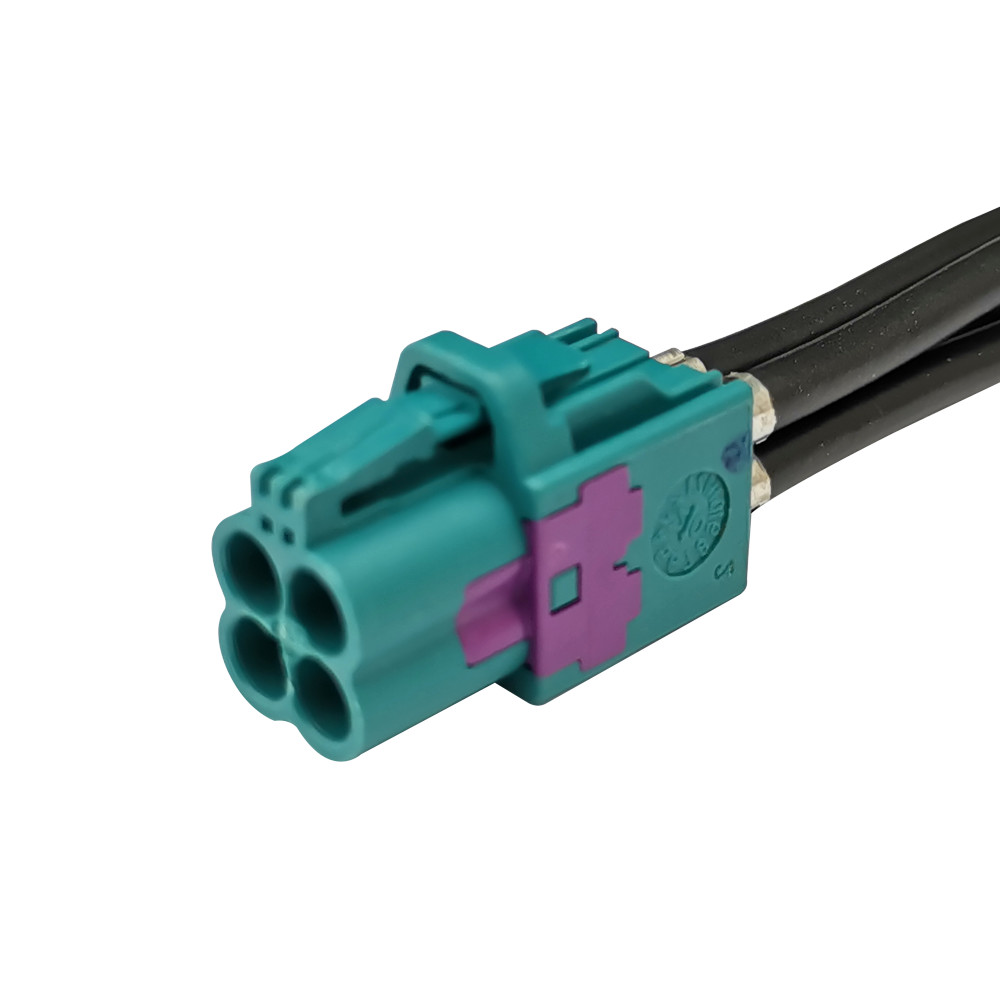

Automotive Wiring Harness Z Code 4Pin Mini Fakra MATE-AX For Car Wireless Signal





Product description:

With the rapid development of automotive technology, there are higher requirements for the stability and accuracy of data transmission. After the traditional Fakra connector products, a new type of high-performance RF connector - HFM was born. The intelligence helps to improve driving and riding comfort.



Main Feature:

1.The MATE-AX small FAKRA coaxial connector system provides advanced automotive data transmission performance with support for frequencies up to 15 GHz.
2.The MATE-AX system is available in a variety of connector types and sizes to support all types of RF-based applications.
3.MATE-AX terminals offer higher package density, support up to 75% PCB footprint, and provide flexibility to integrate into existing coaxial architectures by using existing wire types.
4.Maximum weight reduction capability is 34% higher than Fakra connectors.



Applications:

1.4K cameras

2.Sensors

3.High resolution displays

4.Broadcast antenna

5.WLAN Antenna

6.Mobile Internet antennas (4G/5G)

7.V2X Antenna



Technical Specifications:



 Impedance 50Ω
Frequency Range DC-15 GHz
Operating voltage 335Volts rms
Insulation resistance 100MΩ Min
 Dielectric withstanding voltage 500Volts rms
Centre contact 5mΩ Max
Outer contact 5mΩ Max
 Power current 1A Max.
Connector Durability 25 cycles
 Engagement force 60 N Max.
Disengagement force 5 N Min.
Retention force 100 N Min.



FAQ:

1.Q: Could you accept custom products?

A: Yes, we accept OEM & ODM.



2.Q :How can I get a sample to check your quality?

A : Free sample is available.customers only need to pay the courier fee.
