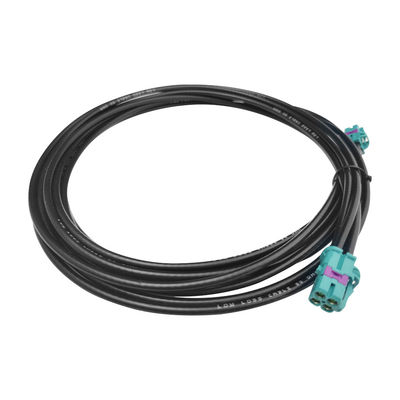

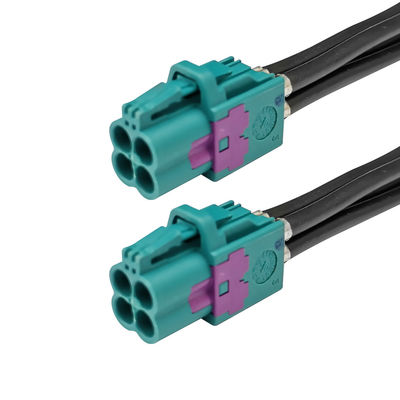

4 Pin Z Code Quad Mini FAKRA Coax Cable For Driver Assistance Systems

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini Fakra Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Quad Mini FAKRA Coaxial Cable Code Z Code
Color Water Blue Application Automotive,ADAS
Service OEM & ODM Is Accepted MOQ 20 PCS
High Light

4 Pin FAKRA Coax Cable

,

Z Code FAKRA Coax Cable

,

Driver Assistance Systems Quad FAKRA Cable

Leave a Message
Product Description

4Pin Z-Code Quad Mini FAKRA Coaxial Cable For Driver Assistance Systems

Product description:
The High-Speed FAKRA-Mini High-Speed Mini FAKRA connector system offers high speed data transfer rates of up to 28 Gbps. Compared to conventional FAKRA, the HFM is smaller in size, allowing different components to be placed in a small installation space, thus saving up to 80% of space.

Main Feature:

1. Frequency up to 20GHz
2. High-speed data transfer rate up to 28Gbit/s
3. Optimized space usage
4. Installation space saving up to 80
5. Cost optimization
6.MOQ:20 PCS


Applications:
1.Automatic driving
2.Driving assistance system
3.Navigation system
4.Infotainment system
5.Rear seat entertainment system
6.Internet



Offer Custom:

We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.



Technical Specifications:



Quad Mini FAKRA

Electrical

Data

lmpedance 50 Ω
Frequency range  DC up to 20 GHz
Center contact resistance ≤15mΩ
Outer contact resistance ≤5mΩ
Test voltage ≤800 V DC
Working voltage 60V DC
Contact current  ≤1 A DC

Mechanical

Data

Mating cycles  ≥25
Engagernent force  ≤15N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥80 N

Environmental

Data

Temperature range -40°C-+105°C


Mini FAKRA Coding:
4 Pin Z Code Quad Mini FAKRA Coax Cable For Driver Assistance Systems 0


FAQ:



1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
