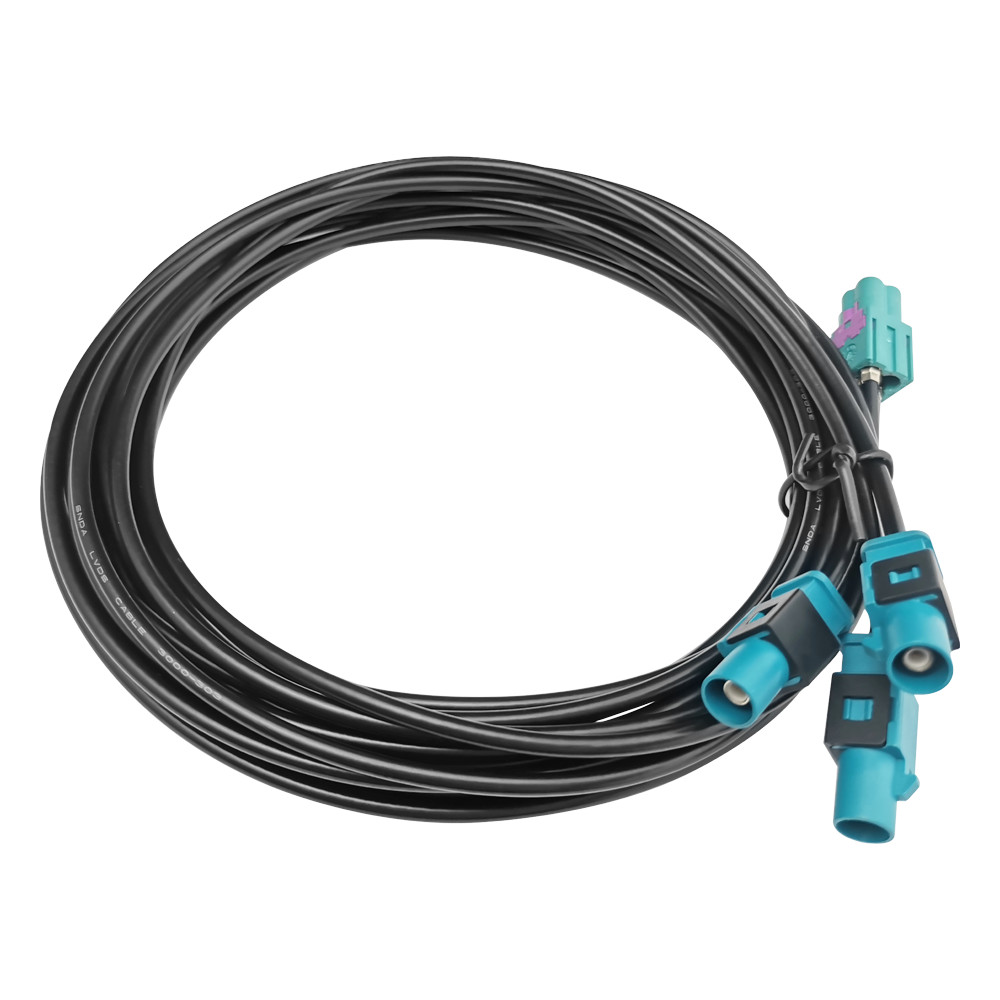

4 In 1 4 Pin Mini FAKRA Cable , Multipurpose Quad FAKRA Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini Fakra Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Quad Mini FAKRA Coaxial Cable Code Z-Code, WaterBlue Color
Connector Orientation Straight Application Automotive,ADAS
Service OEM & ODM Is Accepted MOQ 20 PCS
High Light

4 In 1 Mini FAKRA Cable

,

4 Pin Mini FAKRA Cable

,

Multipurpose Quad FAKRA Cable

Leave a Message
Product Description

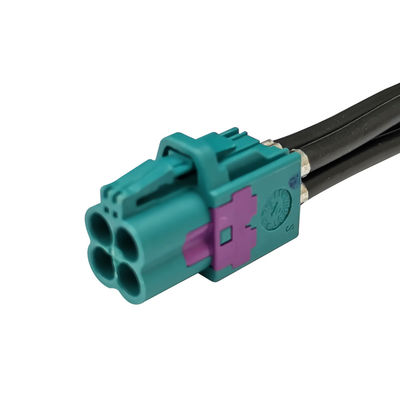

4 In 1 Z Code 4pin Quad Mini FAKRA Automotive FAKRA Coaxial Cable

Product description:
Mini-FAKRA connectors support up to 20Gbps data transfer and require 80% less installation space than conventional FAKRA products. Color-coded housings provide visual guidance during assembly, and mechanical keying options prevent connector mis-matching. Multi-port configurations are available.

Main Feature:

1. 80% installation space saving compared to conventional FAKRA
2. 20Gbps data rate is ideal for high bandwidth applications
3. Color-coded housing provides visual guidance during assembly, and mechanical keying options prevent connector mis-matching
4. Rugged, impact-resistant construction
5. Real-time data transmission
6. MOQ:20 PCS


Applications:
1.360° surround view camera
2.Self-driving vehicles
3.Advanced Driver Assistance System (ADAS)
4.GPS navigation
5.3D instrument panel
6.High bandwidth infotainment system
7.Remote start and vehicle control


Offer Custom:

We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.



Technical Specifications:



Quad Mini FAKRA

Electrical

Data

lmpedance 50 Ω
Frequency range  DC up to 20 GHz
Center contact resistance ≤15mΩ
Outer contact resistance ≤5mΩ
Test voltage ≤800 V DC
Working voltage 60V DC
Contact current  ≤1 A DC

Mechanical

Data

Mating cycles  ≥25
Engagernent force  ≤15N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥80 N

Environmental

Data

Temperature range -40°C-+105°C


Mini FAKRA Coding:
4 In 1 4 Pin Mini FAKRA Cable , Multipurpose Quad FAKRA Cable 0


FAQ:



1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
