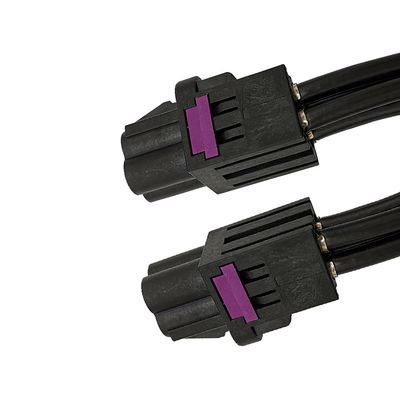

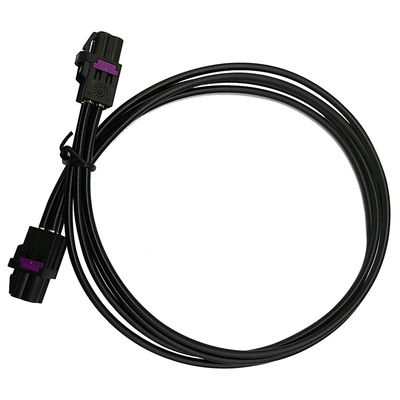

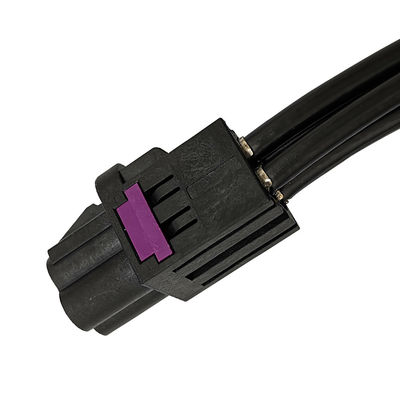

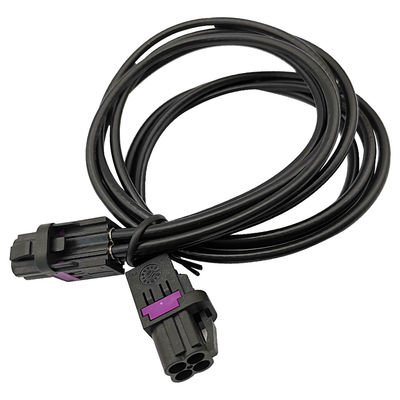

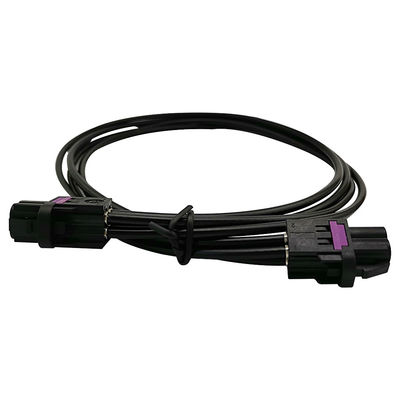

Automotive MINI FAKRA Coaxial Cable 4 Pin A Code Connectors For BMW

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini Fakra Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mini Fakra Automotive Coaxial Cable Color Black
Orientation Straight Application Automotive,High Speed Cable Networking,ADAS
Pin 4p Code A
High Light

Automotive FAKRA Coaxial Cable

,

MINI FAKRA Coaxial Cable

,

4 Pin FAKRA Automotive Coaxial Cable

Leave a Message
Product Description

MINI FAKRA 4Pin A Code Connectors For BMW Car Automotive Coaxial Cable



Product description:

With the rapid development of automotive technology, the growth of ADAS technologies and applications requiring wireless connectivity has led to an increase in the number of sensors, cameras, and antennas. HFM can receive and transmit large amounts of data at high frequencies over coaxial cables Receiving and transmitting large amounts of data at high frequencies over coaxial cables.



Main Feature:

1. Supports up to 15 GHz /24 Gbps
2. Up to 75% space reduction
3. Supports up to 15 GHz /24 Gbps
4. Automotive grade robustness –terminals and housings designed for automotive environment.
5. Flexible portfolio –contains a range of connector sizes.



Applications:



lnfotainment Cluster Wireless Connectivity ADAS Telematics Control
FM WiFi/BT 4k ADCAM TCU
Digital Audio (DAB) 3G/4G/5G Night Vision 3G/4G/5G
Television GPS/GNSS Mirror Replacement v2x(DSRC,C-V2x)
Gesture Wireless Charging Surround View
  SDARS Lane Assist



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Phosphor Bronze / Zinc Diecast
Body Finish Gold / Matte Tin / Nickel / Tin
Contact Material Beryllium Copper / Brass / Phosphor Bronze
Contact Finish Gold
Insulator Material LCP / PBT / PTFE
Impedance 50Ω
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Contact Current (dependant on cable size) Contact Current (dependant on cable size)
Power Handling 95 W Max @ 1 GHz @ 25ºC
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On





FAQ:



1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
