Durable Coax Dual FAKRA Cable B And C Code To 4 Pin Z Code 2 In 1

Place of Origin CHINA
Brand Name LEADSIGN
Model Number Mini Fakra Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Mini Fakra Automotive Coaxial Cable Orientation Straight
Number Of Ports Single Port / Dual Port Gender Male / Female
Application Automotive,ADAS Serives OEM ODM Accept
High Light

Durable Dual FAKRA cable

,

Coax Dual FAKRA cable

,

2 In 1 FAKRA Coax Cable

Leave a Message
Product Description

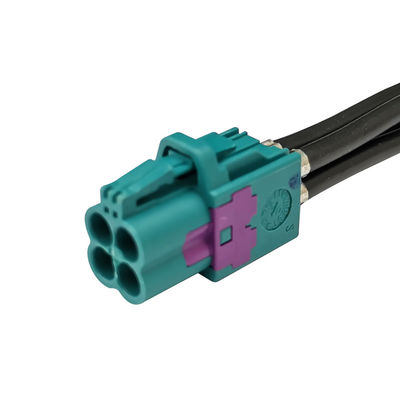

2 In 1 Coaxial Cable B And C Code Dual FAKRA Connector To 4pin Z Code Mini FAKRA



Product description:

Mini-FAKRA connector series is a space-conscious, high-performance interface that reduces installation space requirements by up to 80%. Color-coded housings provide visual guidance during assembly, and a mechanical keylock option prevents connector mismatching.



Main Feature:

1.Smaller package size makes it ideal for compact spaces.
2.Available in multi-port configurations.
3.Shock resistant.
4.Enclosed cable interface.
5. Up to 75% space reduction.
6. Automotive grade robustness –terminals and housings designed for automotive environment.
7. Flexible portfolio –contains a range of connector sizes.



Applications:

1.360° Panoramic Camera
2.Automotive Computing Module
3.Autonomous Vehicles
4.Advanced Driver Assistance Systems (ADAS)
5.GPS Navigation
6.High-bandwidth infotainment systems
7.Remote start and vehicle control



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Phosphor Bronze / Zinc Diecast
Body Finish Gold / Matte Tin / Nickel / Tin
Contact Material Beryllium Copper / Brass / Phosphor Bronze
Contact Finish Gold
Insulator Material LCP / PBT / PTFE
Impedance 50Ω
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Contact Current (dependant on cable size) Contact Current (dependant on cable size)
Power Handling 95 W Max @ 1 GHz @ 25ºC
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On





FAQ:



1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
