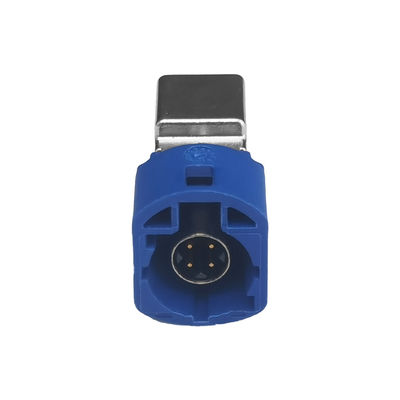

FAKRA HSD Connector Right Angle Type For Automotive Antenna Connections

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Type PCB/Panel Mount Operating Temperature -40℃ To +105℃
Number Of Positions 4 Pin Mating Cycles ≥ 25
Frequency Range DC To 6 GHz Applications LVDS Camera, USB, AndIEEE 1394 Applications
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

This is a High-Performance Digital System for Low-Voltage Differential Signals

The HSD system is specifically designed to prevent interference from crosstalk and external sources, making it a highly reliable solution for data transmission. It utilizes a 100 Ω fully-shielded interconnect system, which is able to handle shielded twisted quad cables.

Efficient and Versatile

The HSD system includes all the necessary parts for optimal performance and is known for its cost-efficiency. It is particularly well-suited for high-speed data transmission and is frequently used in Ethernet applications. The system also meets the strict requirements of the automotive industry.

Purpose-Built for Automotive Applications

The HSD interconnect system is specifically designed for the automotive market, with purposes such as LVDS camera, USB, and IEEE 1394 applications in mind. It features mechanical keying, latching, color code options, and is designed to meet global automotive requirements while maintaining a compact size.



Features:

HSD Interconnect System

The HSD Interconnect System is a revolutionary solution for quality cable connections. It is designed to operate at 100 ohms and is capable of accommodating shielded twisted quad cables. Some prominent features of this system include:

  • Dual lock mechanism for primary and secondary locking
  • Crimp connection method employed for secure connections
  • High cable retention force for reliable connections
  • Efficient coding options on the plastic housing to prevent misconnections
  • Measures to prevent contact pin damage

The dual lock mechanism ensures a strong and durable connection, while the crimp connection method further adds to its stability. The high cable retention force guarantees a secure connection, minimizing any risk of disconnection. The efficient coding options on the plastic housing make it easy to identify and connect the appropriate cables, reducing the chance of mistakes. The system also takes precautions to prevent contact pin damage, ensuring the longevity and functionality of the connectors.



Technical Parameters:

HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C

Applications:

The HSD interconnect system has been specifically designed for use in the automotive market, with applications such as LVDS cameras, USB devices, and IEEE 1394 connections. It boasts advanced features, including mechanical keying, latching mechanisms, customizable color coding, and a compact size that meets the standards and demands of the global automotive industry.

This versatile interconnect system is not limited to automotive use alone. It also finds applications in other industries such as telecom and telecom, specifically in the areas of radio base stations and digital infotainment electronics. Furthermore, the system is also suitable for digital symmetrical networks, and is compatible with various popular protocols such as USB 1.0, 2.0, 3.0, LVDS, Ethernet, IEEE 1394 (Firewire), and GVIF.



HSD Coding:

Right Angle/Straight Type FAKRA HSD LVDS 4Pin Services OEM ODM 0Right Angle/Straight Type FAKRA HSD LVDS 4Pin Services OEM ODM 1

Customization:

We welcome OEM and ODM requests, offering customizable options for cable types, connector types, and cable lengths. Your specific requirements are carefully considered to deliver a tailored solution. Don't hesitate to reach out to us for further assistance.

Support and Services:

  1. OEM and ODM orders are welcomed.
  2. Free samples are available; customers only need to cover courier fees.
  3. We offer flexible logistics solutions.
  4. Count on us for fast delivery and exceptional service.
