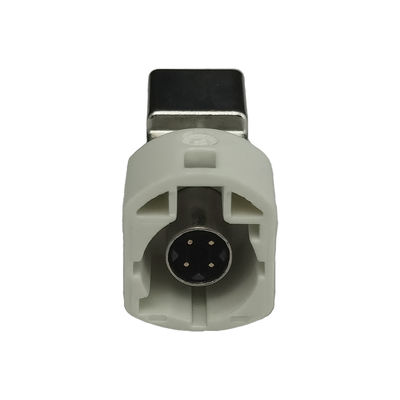

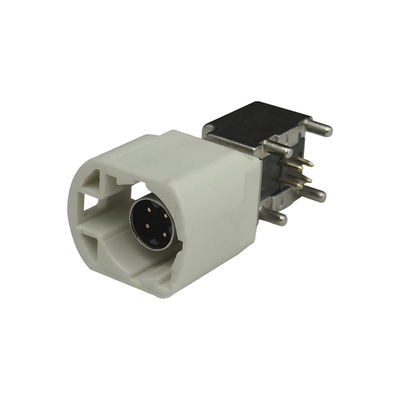

FAKRA HSD LVDS 4Pin Coaxial Cable Connector Right Angle Types For PCB Mount

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Code B-code Mounting Type PCB Mount
Number Of Positions 4Pin Impedance 100Ω
Color White Color Applications LVDS Camera, USB, And IEEE 1394
MOQ 20PCS Services OEM ODM Accept
Leave a Message
Product Description

Product Description:

In the ever-evolving automotive technology landscape, the HSD PCB Connector is a key driving force of progress. It offers incredible features such as high-speed data rates, Multi-pin configurations, and superior resilience, fundamentally transforming automotive applications.

The HSD PCB Connector is capable of supporting cutting-edge infotainment systems and enabling autonomous driving, making it an integral component of modern automotive technology. It is showing how high-performance technology is changing the design and capabilities of automotive systems.



  1. Swift Data Transfer: HSD connectors support up to 8 Gbps data rates, enabling rapid communication.
  2. Sturdy Impedance: With a consistent 100 Ohm impedance, connections remain robust.
  3. Extreme Resilience: Operating from -40°C to +105°C, they handle diverse temperatures.
  4. Lasting Durability: Over 25 mating cycles ensure enduring performance.
  5. Waterproof Design: With ≥ 5 waterproof mating cycles, connectors resist moisture.
  6. Easy Coding: Multiple codings simplify quick and accurate connections.
  7. Secure Locks: Primary and secondary locks ensure secure, vibration-resistant connections.
  8. Versatile Compatibility: Supporting USB, LVDS, Ethernet, Firewire, they adapt to different protocols.
  9. MOQ:20 PCS

Technical Parameters:

Attribute Value
Impedance 100 Ohm
Data Rate Up to 8 Gbps
Operating Temperature Range 40°C to +105°C
Mechanical Coding Multiple options, including neutral coding
Lock Mechanisms Primary and secondary locks

USB 1.0, 2.0, 3.0


Ethernet (IEEE 802.3)

Firewire (IEEE 1394)


  1. Infotainment: Multimedia displays and connectivity.
  2. ADAS: Real-time data exchange for vehicle responses.
  3. Telematics: Remote tracking and diagnostics.
  4. Networking: Ethernet-based vehicle networks.
  5. Navigation: Accurate navigation data.
  6. Cameras: Rearview and surround-view cameras.
  7. Dashboard Displays: Interactive user interfaces.
  8. High-Quality Audio: Superior sound transmission.
  9. Autonomous Driving: Sensor-based autonomy.
  10. Control Modules: Interconnected vehicle.


HSD Coding:

FAKRA HSD LVDS 4Pin Coaxial Cable Connector Right Angle Types For PCB Mount 0FAKRA HSD LVDS 4Pin Coaxial Cable Connector Right Angle Types For PCB Mount 1



Customized Automotive Connectors: LEADSIGN HSD FAKRA PCB Connector

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Support and Services:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
