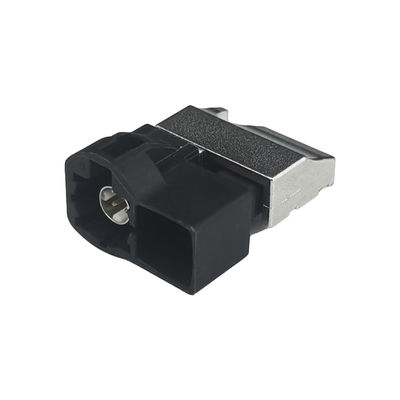

High Speed HSD Connector Automotive Plug Right Angle 4+4 Pin PCB Mount
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Coding / Color (Automotive) | Code A,Black/9005 | PIN | 4 Signal Pins 4 Power Pins |
|---|---|---|---|
| Impedance | 100 Ω | Temperature Range | −40°C~+105°C |
| Mounting Type | PCB Mount / Panel Mount | Business Area | Automotive |
| Business Type | OEM&ODM | MOQ | 20PCS |
| High Light | High Speed HSD Connector Automotive,PCB Mount HSD Connector Automotive,Right Angle HSD Connector Automotive |
||
Product Description
Product Description:
FAKRA HSD Connector is a high-speed data transfer connector designed for automotive applications. It is perfect for applications that require high-speed data transmission with reliable performance and durability. The connector is designed to ensure safe and secure data transfer, making it ideal for a wide range of automotive applications. It is also easy to install and maintain, making it a cost-effective solution for automotive data transfer needs.
Features:
- HSD+2,+4,+8 (on request) power pin connectors - further variants with additional pins(MQS contacts) for power supply purposes
- HSD connectors using just one data pair, they are available in two versions to suit shielded as welas unshielded twisted pair cables
- HSD are used in Ethernet applications and fulll the very highrequirements of the automotive industry
- HSD interconnect system is designed for the automotive market, e.g.,LVDS camera, USB, and IEEE 1394 applications
- HSD system features mechanical keying, latching, color code options,and a minimum size to satisfy global automotive requirements
- MOQ:20PCS
Technical Parameters:
| Property | Value |
|---|---|
| Brand Name | LEADSIGN |
| Product Name | FAKRA HSD Connector, HSD LVDS connector, HSD PCB connector |
| Connector Style | Right Angle |
| Description | Straight Plug, Single,HSD+4 Power Pin Connectors |
| Coding HSD +4 | A,B,C,D,E,F,Z |
| Temperature Range | -40°C~+105°C |
| Impedance | 100 Ω |
| Mounting Type | PCB Mount / Panel Mount |
| Business Area | Automotive |
| Business Type | OEM & ODM |
Applications:
HSD PCB Connector – Automotive Grade Connector for High-Speed Data
HSD PCB Connector is an Automotive Grade high-speed data (HSD) LVDS connector designed for reliable and robust performance in extreme temperature environments. This HSD connector is designed for PCB mount or panel mount.
- Provides connectivity options for automotive infotainment modules, cameras, in-vehicle passenger device connections, and displays
- Connects automotive electrical engineering and electronic components
- Create connections for driver assistance systems
- Digital infotainment electronics
- Digital symmetrical networks
- USB 1.0,2.0,3.0
- LVDS
- Ethernet
- IEEE 1394
Customization:
HSD PCB Connector
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
- Accept OEM and ODM orders.
- Samples are free of charge, only the customer has to pay the courier fee.
- Support multiple logistics methods.
- Fast delivery time and first-class service.
