LVDS IP67 FAKRA Automotive Connectors , Display Device FAKRA Waterproof

Place of Origin China
Brand Name LDS
Certification E-Mark
Model Number LDS-HSD-04FF
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Carton size 29*13*11CM,20pcs per carton
Delivery Time 7~14 work days
Supply Ability 200000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100Ω Frequency DC To 2 GHz
Insulation Resistance ≥1000 MΩ Test Voltage 250 V Rms
Working Voltage 100 V Rms Power Current ≤1.5A DC
Working Temperature -40℃ ~ +105℃ Waterproof Grade IP67
High Light

LVDS FAKRA Automotive Connectors

,

IP67 FAKRA Automotive Connectors

,

Display Device FAKRA Waterproof

Leave a Message
Product Description

High Quality Waterproof Fakra Cable Connector Fakra Z Jack for Car

Description:

The Wakerproof HSD Cable Connector product is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.This product has IP67 waterproof rating. Waterproof Fakra Cable Connector connectors provide connectivity solutions for automotive infotainment modules, cameras, Global Positioning Satellite, display devices and Remote Vehicle.

Key Feature:
1.High-speed shielded connection system suitable for digital data with performance up to 6 Gbps.
2.High reliable connection, good contact and firm not loose.
3.Can be used in combination with multiple protocol interfaces such as LVDS Ethernet and USB.
4.Have their own unique coding, coding and color are used for different purposes.
5.High level of process automation and global manufacturing footprint
6.Extend the PCB connector product portfolio.
7.Have multiple types of integration.
8.IDB 1394 Automotive Specification.

Technical Specifications:

Material
 Housing  PA
 Center Pin  Copper Alloy
 Outer contact  Zinc Alloy
 Insulator  HTN
Electrical Performance
 Impedance  100 Ω
 Frequency Range  DC to 2 GHz
 Return Loss

 ≥20 dB to 1 GHz
 ≥17 dB to 2 GHz

 Insertion Loss  ≤0.1 dB to 2 GH
 Insulation Resistance  ≥ 1000 MΩ
 Center Contact Resistance  ≤ 8mΩ
 Test Voltage  250 V rms
 Working Voltage  100 V rms
 Contact Current  ≤ 1.5 A DC
Mechanical Performance
 Mating Cycles  ≥ 25 Time
 Engagement Force  ≤ 30 N
 Disengagement Force  ≥5 N
 Retention Force Latch  ≥ 110 N
 Temperature Range  -40 °C ~ +105 °C
 Waterproof Garde  IP67

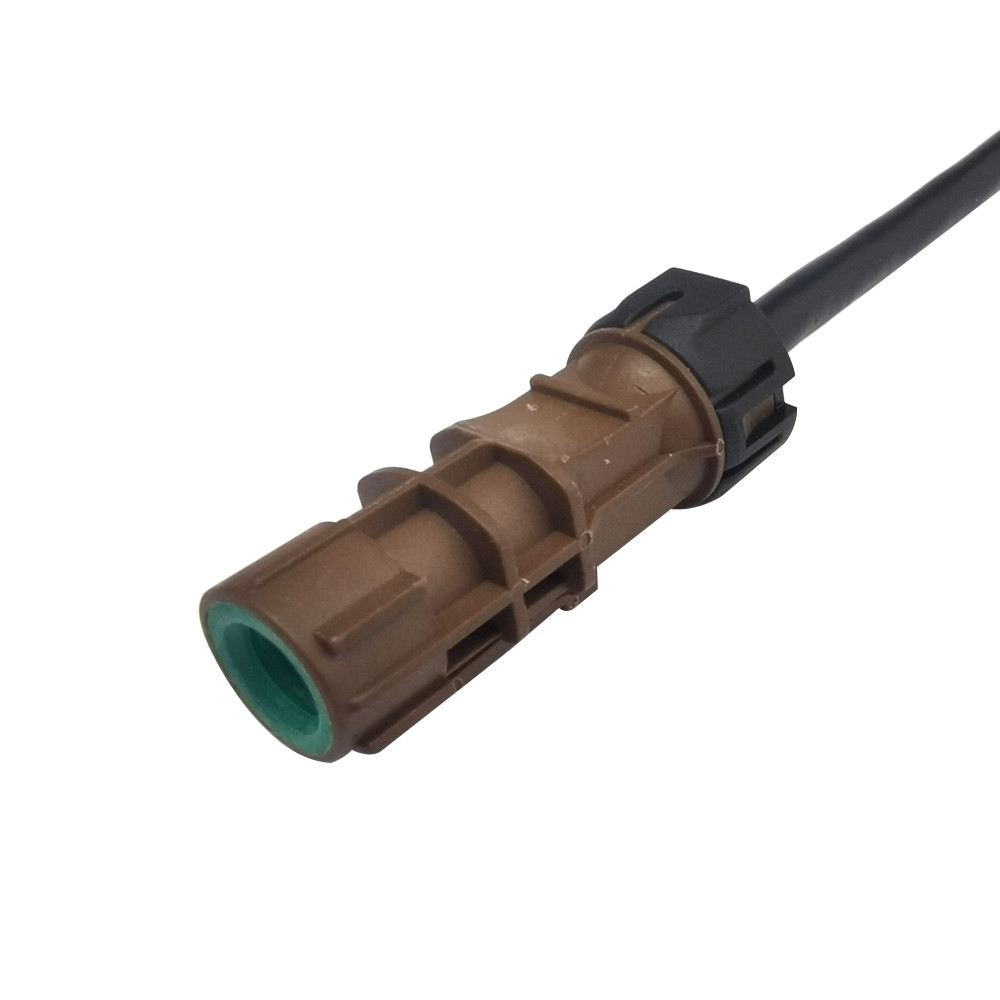

Product image:



LVDS IP67 FAKRA Automotive Connectors , Display Device FAKRA Waterproof 0


FAQ:

1.Q:How do I apply for samples?

   A:You can contact our customer service, you only need to pay the freight, our samples are free.



2.Q:Does your factory accept customized service?

   A:Yes,we accept OEM&ODM.



3.Q:What are your company's strengths?

   A:We have a professional technical team to ensure quality as well as efficiency.
