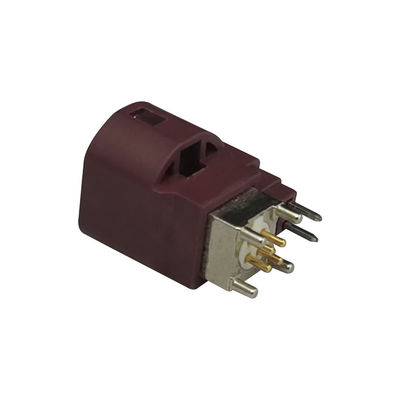

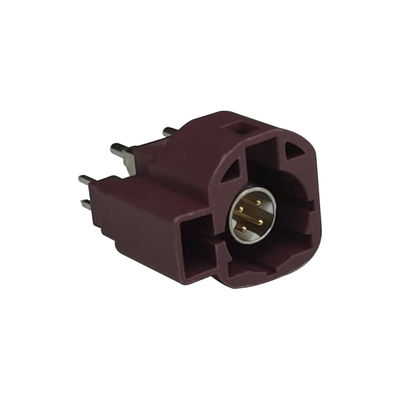

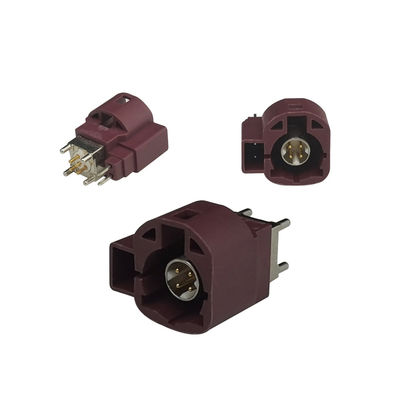

FAKRA HSD Connector 4+2Pin Straight Type For Automotive Antenna Connections
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impedance | 100Ω | Working Voltage | 60 V Rms |
|---|---|---|---|
| Frequency Range | DC To 6 GHz | Mounting Type | PCB/Panel Mount |
| Orientation | Straight Type | Operating Temperature | -40℃ To +105℃ |
| Services | OEM ODM Accept | MOQ | 20PCS |
| High Light | automotive antenna connections fakra hsd connector,4+2pin fakra hsd connector,straight type fakra hsd connector |
||
Product Description
Product Description:
The HSD connector is an essential component in automobiles, serving as a high-speed messenger that facilitates swift and dependable communication between different car systems, including navigation, entertainment, and safety features. It is responsible for maintaining strong connections, preventing any signal interference, and overcoming challenges posed by car vibrations and extreme temperatures.
Similar to a multilingual connector, the HSD connector is capable of understanding and supporting the diverse languages used by the car's electronic systems. This feature ensures seamless communication between different vehicle components and contributes to a smoother and more enjoyable driving experience. Overall, the HSD connector plays a crucial role in enhancing communication efficiency and reliability within automobiles.
Features:
- Efficient Communicators : HSD connectors serve as efficient communicators within a car, facilitating seamless data exchange between different parts.
- Error Prevention : HSD connectors feature color-coded designs that simplify installation, reducing the chances of mistakes during assembly.
- Interference Protection : The robust shielding of HSD connectors provides protection against electromagnetic interference, safeguarding the car's communication systems.
- Space Optimization : Thanks to their compact size, HSD connectors optimize space on circuit boards, allowing for efficient use of space within the vehicle.
- Versatility : With compatibility for various communication protocols, HSD connectors are versatile and adaptable for use in different automotive systems.
- Durability : Designed to withstand harsh environments, these connectors are durable and reliable, ensuring longevity and consistent performance.
- Enhanced Driving Experience : By enabling efficient communication between car components, HSD connectors contribute to an improved driving experience, making the overall journey smoother and more enjoyable.
Technical Parameters:
| Product Name | FAKRA HSD Connector |
|---|---|
| Impedance | 100Ω |
| Operating Temperature | -40℃ To +105℃ |
| Mating Cycles | ≥ 25 |
| Orientation | Straight Type |
| Frequency Range | DC To 6 GHz |
| Number of Positions | 4+2 Pin |
| Mounting Type | PCB/Panel Mount |
| Applications | LVDS Camera, USB, And IEEE 1394 Applications |
| Services | OEM ODM Accept |
| Key Words | FAKRA HSD connector, FAKRA HSD LVDS, HSD FAKRA connector |
Applications:
Automotive Electronics
The automotive industry relies heavily on advanced electronic systems for various applications. Some of these include:
- Telecom industries, such as radio base stations
- Digital infotainment electronics
- Digital symmetrical networks
- USB 1.0, 2.0, and 3.0
- LVDS (Low Voltage Differential Signaling)
- Ethernet
- IEEE 1394 (Firewire)
- GVIF (Gigabit Video Interface)
The HSD (High Speed Data) interconnect system has been specifically designed for automotive use. It is compatible with various technologies, such as LVDS camera, USB, and IEEE 1394 applications. The HSD system offers features such as mechanical keying, latching mechanisms, color code options, and a compact size to meet the stringent requirements of the global automotive market.
HSD Coding:
Customization:
Customization Services for LEADSIGN FAKRA HSD Connector
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
- Experience Free Sampling, Just Shipping Fees Apply
- Your Custom Orders (OEM and ODM) Are Welcome, with Punctual Deliveries and Exceptional Support
- Flexible Shipping Solutions Available for Your Convenience
