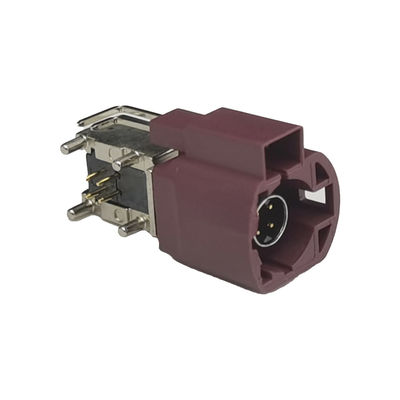

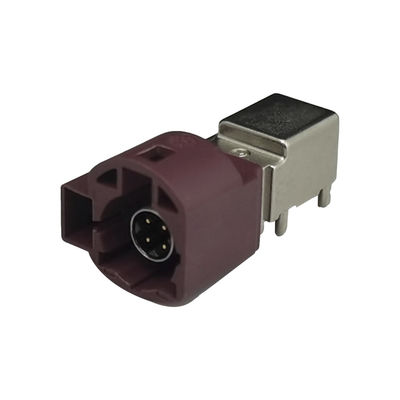

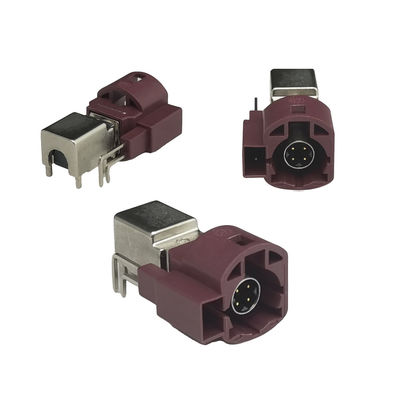

FAKRA HSD Connector 4+2Pin For Car GPS Telematics Or Navigation

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Mating Cycles ≥ 25 Number Of Positions 4+2 Pin
Operating Temperature -40℃ To +105℃ Orientation Right Angle Type
Working Voltage 60 V Rms Impedance 100Ω
Services OEM ODM Accept MOQ 20PCS
High Light

navigation fakra hsd connector


car gps telematics fakra hsd connector


4+2pin fakra hsd connector

Leave a Message
Product Description

Product Description:

The Crucial Role of HSD Connectors in Automobiles

The HSD (High-Speed Data) connector is an essential component in modern automobiles. It serves as a high-speed messenger, facilitating fast and reliable communication between various car systems, including navigation, entertainment, and safety features.

When it comes to high-speed data transfer, the HSD connector plays a crucial role in ensuring strong and dependable connections. This prevents signal mix-ups and ensures smooth communication between different systems, ultimately enhancing the overall efficiency and reliability of the vehicle.

In addition to its role as a high-speed messenger, the HSD connector also has to withstand the challenges of car vibrations and extreme temperatures. Just like a multilingual connector, it can understand and support the different languages used by the car's electronic systems, allowing for seamless communication between components.

The HSD connector ultimately contributes to a smoother and more enjoyable driving experience. By efficiently and reliably connecting various car systems, it enhances the overall performance and functionality of the vehicle, making the drive safer and more enjoyable for all passengers.



Efficient Communicators: HSD Connectors for Seamless Data Exchange
  1. Error Prevention with Color-Coded Designs: To simplify this process, HSD connectors come with color-coded designs, making installation easier and reducing the chances of errors. This saves time and effort while ensuring a secure and efficient connection.
  2. Interference Protection with Robust Shielding: HSD connectors come with robust shielding, protecting the car's communication systems from external interferences, ensuring uninterrupted performance.
  3. Space Optimization for Efficient Use of Space: HSD connectors are designed to be compact, allowing for efficient use of space on circuit boards.
  4. Enhanced Driving Experience with Efficient Communication:By facilitating efficient communication among car components, HSD connectors contribute to an enhanced driving experience. This results in a smoother and more enjoyable journey for the driver and passengers. With reliable data exchange, the car can perform at its best, providing a hassle-free and comfortable ride.

Technical Parameters:

Product Name FAKRA HSD Connector
Number of Positions 4+2 Pin
Impedance 100Ω
Mounting Type PCB/Panel Mount
Operating Temperature -40℃ To +105℃
Orientation Right Angle Type
Frequency Range DC To 6 GHz
Applications LVDS Camera, USB, And IEEE 1394 Applications
Services OEM ODM Accept
Key Features HSD FAKRA, automotive connectors, FAKRA HSD connector, high-speed data, automotive electronics


  1. Digital Infotainment Electronics: Digital infotainment electronics are the electronic components and systems used in vehicles to provide multimedia features, such as navigation, audio, and video.
  2. Digital Symmetrical Networks: This type of network is commonly used for high-speed data transfer, such as in local area networks.
  3. USB 1.0, 2.0, 3.0: The different versions, 1.0, 2.0, and 3.0, indicate the speed and capabilities of the USB connection. The latest version, 3.0, offers faster data transfer and charging capabilities.
  4. LVDS: LVDS, or Low-Voltage Differential Signaling, is a high-speed signaling technology used to transmit digital data. It is commonly used in applications that require low power consumption and noise reduction, such as in consumer electronics and automotive systems.
  5. IEEE 1394 (Firewire): IEEE 1394, also known as Firewire, is a serial bus interface used for high-speed communication and data transfer. It is commonly used for connecting devices such as computers, video cameras, and external hard drives.
  6. GVIF: GVIF, or Gigabit Video InterFace, is a high-speed digital interface used for connecting video devices, such as cameras and displays. It supports high-resolution video and is commonly used in automotive applications, such as in-car displays and rearview cameras.


HSD Coding:

FAKRA HSD Connector 4+2Pin For Car GPS Telematics Or Navigation 0FAKRA HSD Connector 4+2Pin For Car GPS Telematics Or Navigation 1



Customized Service for FAKRA HSD Connector by LEADSIGN
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Experience Free Sampling, Just Shipping Fees Apply
  • Your Custom Orders (OEM and ODM) Are Welcome, with Punctual Deliveries and Exceptional Support
  • Flexible Shipping Solutions Available for Your Convenience
