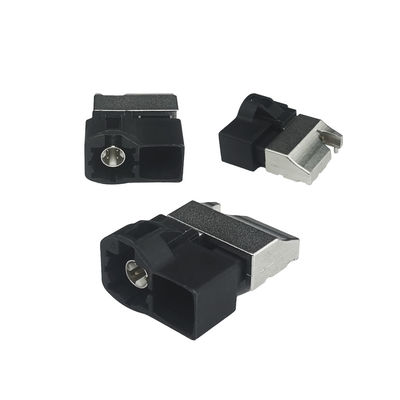

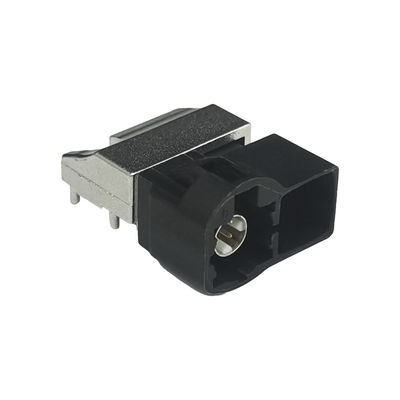

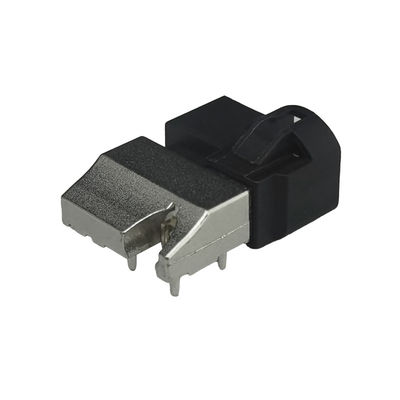

HSD Connector 4+4Pin Suitable For LVDS Camera, USB, And IEEE 1394 Applications

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Temperature -40℃ To +105℃ Mounting Type PCB/Panel Mount
Working Voltage 60 V Rms Frequency Range DC To 6 GHz
Orientation Right Angle Type Services OEM ODM Accept
Impedance 100Ω Applications LVDS Camera, USB, AndIEEE 1394 Applications
Leave a Message
Product Description

Product Description:

The FAKRA HSD Connector is a premier choice for high-speed data transfer in the automotive industry. It boasts reliable performance and durability, making it ideal for a variety of applications that require rapid data transmission. This connector offers a safe and secure transfer process, making it the perfect solution for a wide range of automotive needs. With its straightforward installation and low-maintenance design, the FAKRA HSD Connector is a cost-effective solution for all your automotive data transfer needs.

In addition to its high-speed capabilities, the HSD+2, +4, and +8 (available upon request) power pin connectors provide additional options for power supply purposes. This versatile connector also offers variants with MQS contacts, providing even more flexibility for your specific needs. The HSD Connector accommodates both shielded and unshielded twisted pair cables, providing two versions to suit your specific requirements.

The automotive industry has strict standards for data transfer, and the HSD Connector meets those requirements with ease. This connector is commonly used in applications such as Ethernet, and it fulfills the demanding needs of the automotive industry with ease. The HSD interconnect system is specially designed for the automotive market, suitable for LVDS camera, USB, and IEEE 1394 applications.

The HSD system offers a variety of features that make it an outstanding choice for the automotive industry. Its mechanical keying and latching mechanisms ensure secure connections, while its color code options provide effortless identification. Plus, its compact size meets global automotive requirements, making it a top choice for automotive data transfer needs.



1.Versatile Power Options: HSD connectors with +2, +4, and +8 (optional) MQS power pins cater to diverse needs.

2.Ethernet Precision: Engineered for Ethernet applications, meeting stringent automotive standards.

3.Automotive Tailoring: Customized for the automotive sector, HSD supports LVDS cameras, USB, and IEEE 1394.

4.Integrated Design: Featuring mechanical keying, latching, color coding, and compact build, aligning with global automotive standards.

5.Swift Data Transfer: Capable of handling data rates up to 8 Gbps, ensuring rapid and efficient communication.

6.Impedance Stability: Maintains a stable 100-ohm impedance for reliable performance.

7.Temperature Robustness: Operates seamlessly in temperatures ranging from -40°C to +105°C.

8.Durability Assurance: With over 25 mating cycles and ≥ 5 waterproof mating cycles, ensuring prolonged use.

9.Flexible Codings: Available in various codings for adaptable and precise connections.

10.Secure in Motion: Equipped with primary and secondary locks, ensuring a secure and stable connection in dynamic conditions.


Technical Parameters:

Product Name FAKRA HSD Connector
Mating cycles ≥ 25
Mounting Type PCB/Panel Mount
Working voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Frequency range DC To 6 GHz
Impedance 100Ω
Number of Positions 4+4 Pin
Applications LVDS Camera, USB, AndIEEE 1394 Applications
Services OEM ODM Accept


1.Comprehensive Connectivity Range: We offer diverse connectivity solutions, spanning infotainment modules, cameras, passenger devices, and displays, addressing various automotive applications.

2.Seamless Integration for Driver Assistance: Our expertise lies in creating flawless connections for driver assistance systems, contributing to enhanced safety and efficiency on the road.

3.Cutting-Edge Infotainment Solutions: In the digital era, our advanced digital solutions redefine in-car entertainment, incorporating state-of-the-art technology for an unparalleled experience.

4.Reliable Digital Symmetrical Networks: We specialize in delivering high-quality digital symmetrical networks that ensure seamless communication among different automotive systems, guaranteeing uninterrupted data transfer.

5.Versatile USB Options: Catering to diverse needs, we provide a range of USB options, including 1.0, 2.0, and 3.0, offering a comprehensive solution for the automotive industry.

6.Complete Connectivity Portfolio: From LVDS to Ethernet and IEEE 1394 connections, we serve as a one-stop solution for all connectivity requirements, consolidating our position in the automotive connectivity landscape.


HSD Coding:

HSD Connector 4+4Pin Suitable For LVDS Camera, USB, And IEEE 1394 Applications 0HSD Connector 4+4Pin Suitable For LVDS Camera, USB, And IEEE 1394 Applications 1


LEADSIGN FAKRA HSD Connector - Customized Services

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Support and Services:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
