4+2Pin FAKRA HSD Connector PCB Mount RF Coaxial Connector For GPS

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Type PCB/Panel Mount Operating Temperature -40℃ To +105℃
Mating Cycles ≥ 25 Impedance 100Ω
Working Voltage 60 V Rms Applications LVDS Camera, USB, AndIEEE 1394 Applications
Services OEM ODM Accept MOQ 20PCS
High Light

4+2Pin RF Coaxial Connector

,

FAKRA HSD Connector For GPS

,

PCB Mount RF Coaxial Connector

Leave a Message
Product Description

Product Description:

HSD+: High-Speed Data Connector Systems for Automotive Applications

The automotive industry relies on high-speed data connector systems for efficient communication and data transmission. Among these systems are the HSD+2, +4, +8, and up to 6 GHz.

Specially designed for low-voltage differential signals, the HSD connector system offers superior performance by protecting against crosstalk and interference from external sources. Its fully shielded design with a 100 Ω impedance ensures reliable data transfer. Furthermore, it can accommodate shielded twisted-pair cables for added signal integrity.

Features of HSD Interconnect System

  • Mechanical keying for secure connection
  • Latching for easy installation and removal
  • Color coding options for easy identification
  • Minimal size to meet the space requirements of global automotive market

The HSD interconnect system is specifically designed for automotive applications such as LVDS cameras, USB, and IEEE 1394. With its high performance and reliable design, it is the go-to choice for automotive data communication needs.



Features:

1. Primary and Secondary Lock:

The connector features both a primary and a secondary lock mechanism for increased safety and secure connection.

2. High Cable Retention Force:

The connector is designed with a high cable retention force to ensure a strong and sturdy connection, preventing accidental disconnections.

3. High Coding Efficiency:

The plastic housing of the connector offers various coding options to eliminate misconnections, allowing for efficient and error-free connections.

4. Different Mechanical and Colored Codings:

The connector provides a range of mechanical and colored coding options, as well as a neutral coding option, for easy identification and organization of connections.

5. HSD System Features:

The HSD (High Speed Data) system incorporates multiple features such as mechanical keying, latching, color code options, and a minimum size to meet the strict requirements of the global automotive industry. This ensures reliable and robust connections for high-speed data transmission.



Technical Parameters:

Product Name FAKRA HSD Connector
Frequency Range DC To 6 GHz
Working Voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Impedance 100Ω
Orientation Right Angle Type
Number of Positions 4+2Pin
Applications LVDS Camera, USB, AndIEEE 1394 Applications
Services OEM ODM Accept
Keywords FAKRA HSD LVDS, hsd connector automotive, automotive wire connectors


Applications:

  • Automotive Focus: Tailored for automotive applications, ensuring seamless integration for LVDS cameras, USB, and IEEE 1394, vital for efficient communication within vehicle systems.
  • USB Compatibility: Versatility in USB connectivity with support for versions 1.0, 2.0, and 3.0, providing flexibility and future-proofing for automotive electronics.
  • High-Speed LVDS Integration: Incorporation of Low Voltage Differential Signal (LVDS) technology for high-speed, low-power video transmission, enhancing video quality in automotive systems.
  • Efficient Firewire Support: IEEE 1394 (Firewire) compatibility for multimedia device connection, streamlining integration of cameras and audio systems in the automotive industry.
  • Enhanced Video with GVIF: Support for Gigabit Video Interface (GVIF) enriches digital infotainment electronics, facilitating high-resolution video signal transmission in vehicles.
  • Cross-Industry Applicability: Beyond automotive, finds utility in telecom, contributing to efficient data transfer in radio base stations and supporting digital symmetrical networks.


HSD Coding:

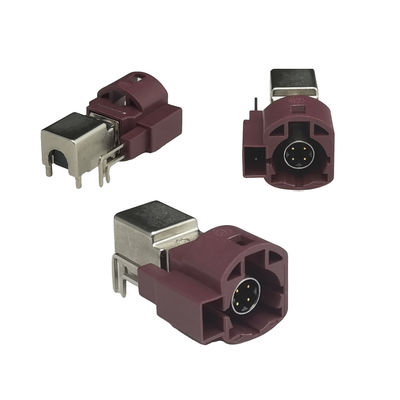

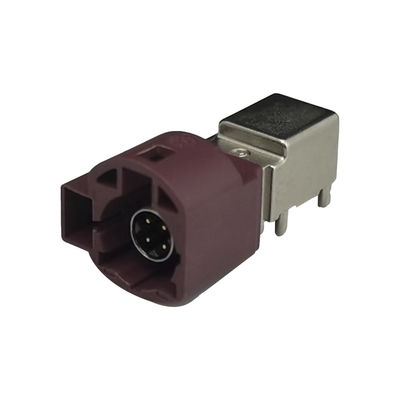

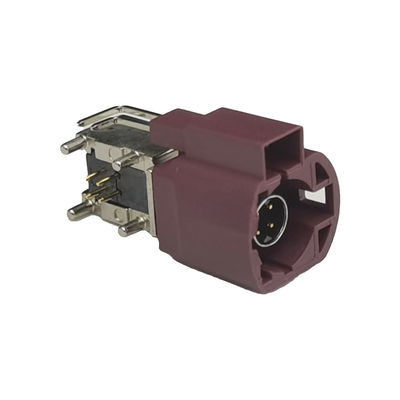

FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount 0FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount 1

Customization:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
