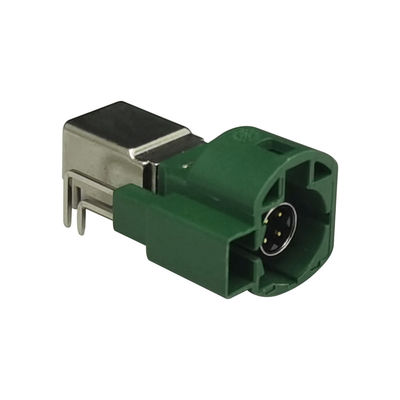

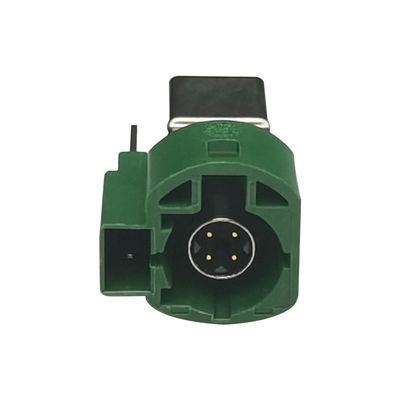

4+2Pin FAKRA HSD Connector Right Angle Type Green Color For Car Radio

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 60 V Rms Number Of Positions 4+2Pin
Mating Cycles ≥ 25 Impedance 100Ω
Operating Temperature -40℃ To +105℃ Mounting Type PCB/Panel Mount
Applications LVDS Camera, USB, And IEEE 1394 Applications Services OEM ODM Accept
High Light

FAKRA HSD Connector For Car Radio

,

Green FAKRA HSD Connector

Leave a Message
Product Description

Product Description:

HSD+2, +4, +8 and HSD up to 6 GHz: High-Speed Data Connector Systems in Automotive Applications

In the fast-paced world of automotive technology, high-speed data transmission is a crucial factor for successful communication and performance. That's where the HSD connector system comes in – offering reliable, high-performance solutions for data transfer in the automotive industry.

The HSD connector system, which stands for High-Speed Data, is designed specifically for low-voltage differential signals. It effectively minimizes crosstalk and external interference, providing a stable and secure connection for data transmission. With a fully-shielded interconnect system at 100 Ω, the HSD system also allows for the use of shielded twisted-pair cables, further enhancing its performance and protection against external factors.

Specifically created for automotive applications, the HSD interconnect system is suitable for a variety of digital systems, including LVDS cameras, USB, and IEEE 1394. It also offers key features such as mechanical keying, latching, color coding options, and a compact size to meet the demands of the global automotive market.

When it comes to high-speed data transmission in automotive technology, the HSD connector system is a top choice for its reliability, performance, and versatility. With its innovative design and advanced features, it seamlessly meets the needs of the fast-paced automotive industry.



Features:

  • Primary and Secondary Lock: Ensures secure connections, preventing accidental disconnection and disruptions, especially crucial in the automotive industry.
  • High Cable Retention Force: Vital for creating a reliable and durable connection, especially in applications prone to vibrations or movement, ensuring secure cable attachment.
  • High Coding Efficiency: Plastic housing accommodates various codings, eliminating misconnections, providing assurance of secure and correctly paired connections.
  • Different Mechanical and Colored Codings: Various coding options enable easy identification of connections, preventing errors during assembly, particularly beneficial in complex systems.
  • Neutral Coding Option: Offers a standardized and universal connection for compatibility across different applications.
  • HSD System Features: Meets global automotive requirements with features like mechanical keying, latching, color code options, and a minimum size, making it a preferred choice for high-speed data transfer.

Technical Parameters:

FAKRA HSD Connector Technical Parameters
HSD Connector Automotive FAKRA HSD LVDS 4Pin
Orientation Right Angle Type
Impedance 100Ω
Frequency Range DC To 6 GHz
Mounting Type PCB/Panel Mount
Working Voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Mating Cycles ≥ 25
Applications LVDS Camera, USB, And IEEE 1394 Applications
Services OEM ODM Accept


Applications:

The Design of HSD Interconnect System for the Automotive Market
  • Versatile Applications: Widely used in various automotive applications, including LVDS cameras, USB (1.0, 2.0, 3.0), IEEE 1394 (Firewire), GVIF, and more.
  • USB Compatibility: Supports different USB versions, offering varying speeds, compatibility, and functionality to meet diverse automotive requirements.
  • LVDS Technology: Incorporates LVDS (Low Voltage Differential Signal) technology, known for high-speed data transmission, low power consumption, and noise cancellation—ideal for in-vehicle communication.
  • Firewire (IEEE 1394): Integrates Firewire technology, essential for fast data transfer in automotive electronics and telecom industries, such as radio base stations.
  • GVIF Integration: Utilizes the Gigabit Video Interface (GVIF) for high-speed digital video transmission, commonly employed in digital infotainment electronics for superior audio and video signals.


HSD Coding:

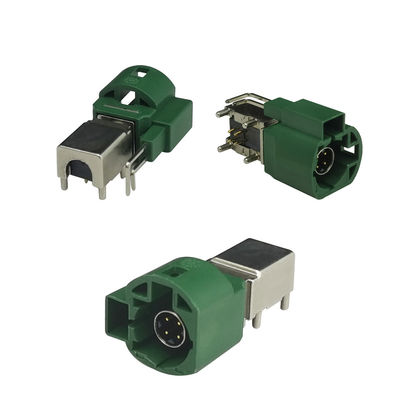

FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount 0FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount 1

Customization:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.



Contact Us

Email: info@leadsignauto.com
Website: www.fakraconnectors.com

If you have any questions about our products or need technical support or service, please feel free to contact us. Our team will be happy to serve you and make sure you have a good experience when using our products.

Thank you for choosing our products. We look forward to serving you.
