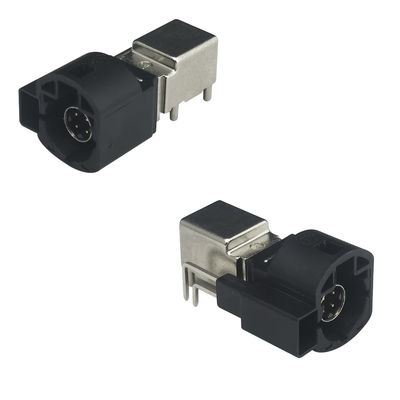

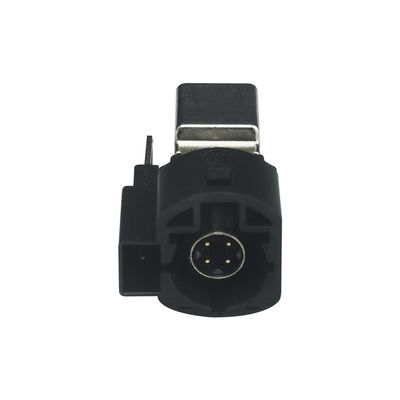

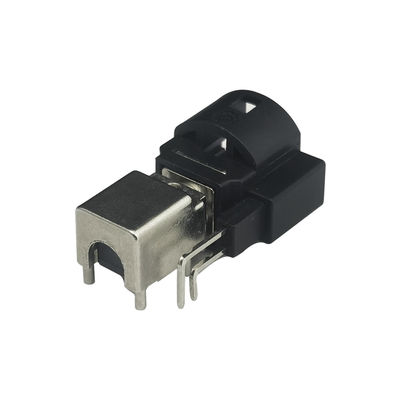

Black Color FAKRA HSD LVDS Connector A Code 4+2Pin For Vehicle GPS Signal

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Working Voltage 60 V Rms Mounting Type PCB Mount
Number Of Positions 4+2Pin Impedance 100Ω
Orientation Right Angle Type Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
High Light

Black Color FAKRA HSD LVDS Connector


A Code FAKRA HSD LVDS Connector

Leave a Message
Product Description

Product Description:

HSD+2, +4, +8 and HSD High-Speed-Data Connector Systems for Automotive Industry Applications

The HSD+2, +4, +8 and HSD High-Speed-Data connector systems are essential components in the automotive industry, commonly utilized for applications up to 6 GHz. These homogeneous impedance-controlled systems are specifically designed to cater to the demanding requirements of high-speed data and low-voltage in real-time automotive applications.

The HSD interconnect system boasts a compact and durable design, featuring fully shielded cables with a 100 Ohm impedance. It also includes mechanical keying and latching for secure connections and coding to prevent misuse. With its high data throughput and effective shielding against crosstalk and external interference, the HSD system is the ideal choice for LVDS cameras, USB connections, Ethernet (IEEE 802.3), and Firewire (IEEE 1394) applications. It is also suitable for various other uses, including digital infotainment electronics, digital symmetrical networks, and even radio base stations.



  • Impedance: 100 Ohm
  • Frequency Range: DC up to 6 GHz
  • High Data Rates: Up to 8 Gbps
  • Temperature Range: -40 °C to +105 °C
  • Mating Cycles: ≥ 25
  • Mating Cycles Waterproof: ≥ 5
  • Different Mechanical and Colored Codings: Available in various mechanical and colored codings, as well as a neutral coding option.
  • Primary and Secondary Locking Systems: Features both primary and secondary locking systems for added security during assembly.
  • Secure Coding System: Prevents misuse and ensures secure data transfer.
  • Reliability and Durability: Built to be highly reliable and durable in various operating conditions.
  • Multiple Housings: Available in multiple housing options to save space and allow for quick plug-in operations.

Technical Parameters:

Orientation Right Angle Type
Operating Temperature -40℃ To +105℃
Mounting Type PCB Mount
Working Voltage 60 V Rms
Frequency Range DC To 6 GHz
Impedance 100Ω
Number of Positions 4+2Pin
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  • Automotive Electronics:The field of automotive electronics involves the use of electronic components and systems in vehicles for various purposes such as safety, comfort, and entertainment.
  • Telecom Industries:One of the many industries that heavily rely on electronic technology is the telecommunications industry. This industry includes radio base stations which use electronic devices to send and receive wireless signals.
  • Digital Infotainment Electronics:Digital infotainment electronics refer to the electronic systems used in vehicles for providing entertainment and information to passengers. This can include features like audio and video systems, navigation systems, and connectivity options.
  • Digital Symmetrical Networks:Compatible with Various Interfaces: Supports USB 1.0, 2.0, and 3.0, as well as LVDS (Low Voltage Differential Signal), Firewire (IEEE 1394), and GVIF interfaces.

HSD Coding:

Black Color FAKRA HSD LVDS Connector A Code 4+2Pin For Vehicle GPS Signal 0Black Color FAKRA HSD LVDS Connector A Code 4+2Pin For Vehicle GPS Signal 1


HSD PCB Connector
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
