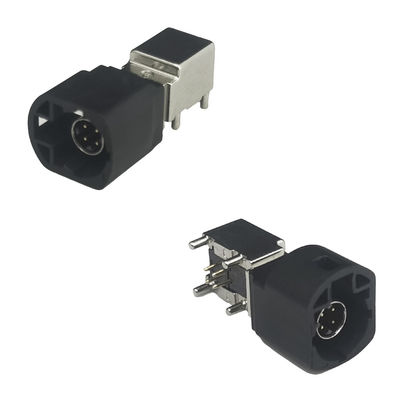

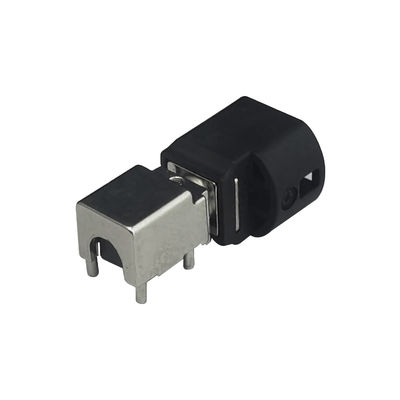

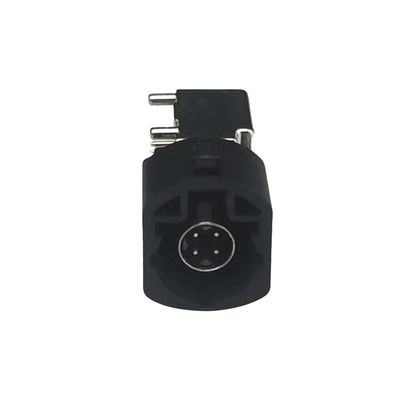

FAKRA HSD LVDS 4 Pin Connector Right Angle Type For GPS Antenna

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 60 V Rms Frequency Range DC To 6 GHz
Orientation Right Angle Type Mounting Type PCB Mount
Operating Temperature -40℃ To +105℃ Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
High Light

Right Angle FAKRA HSD LVDS 4 Pin

,

GPS Antenna FAKRA HSD LVDS 4 Pin

Leave a Message
Product Description

Product Description:

HSD+2, +4, +8, and High-Speed-Data connector systems are widely used in automotive industry applications and can support frequencies up to 6 GHz.
HSD, or High-Speed-Data, is an impedance-controlled interconnect system designed specifically for the low-voltage, high-speed data requirements of real-time automotive applications. Its compact and durable design, with a 100 Ohm fully shielded interconnect system and shielded twisted quad cables, offers excellent performance. The system also features mechanical keying and latching for secure connections, as well as coding to prevent misuse.
Not only does the HSD system offer high data throughput, it also effectively prevents interference from crosstalk and external sources. This makes it well-suited for a variety of applications, including LVDS cameras, USB connections, Ethernet (IEEE 802.3), and Firewire (IEEE 1394). It is also a popular choice for digital infotainment electronics, digital symmetrical networks, and even radio base stations.

Features:

  • The connectors have an impedance of 100 ohms for high speed data transmission.
  • The wide frequency range from DC to 6 GHz makes it suitable for a variety of applications.
  • It supports high data rates up to 8 Gbps, providing fast and efficient performance.
  • A wide temperature range from -40 °C to +105 °C makes it suitable for extreme environments.
  • Different mechanical coding, color coding and neutral coding provide versatile solutions for a variety of connectivity needs.
  • Featuring primary and secondary locks, they provide a high level of assembly security and prevent any accidental disconnections.
  • Its safety coding system prevents any misuse and ensures a reliable and secure connection.
  • The primary and secondary locking system not only provides a high level of security, but also makes it easy to assemble and ensures a strong and reliable connection.
  • A wide range of housings are available for space-saving, quick plugging and unplugging, providing convenience and flexibility for a wide range of installation requirements.


Technical Parameters:

FAKRA HSD Connector Technical Parameters
Product Name FAKRA HSD Connector
Product Type Automotive Wire Connectors
Impedance 100Ω
Mounting Type PCB Mount
Number of Positions 4Pin
Orientation Right Angle Type
Frequency Range DC To 6 GHz
Working Voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

  • Automotive electronics
  • Telecom industries, e.g. radio base stations
  • Digital infotainment electronics
  • Digital symmetrical networks
  • USB 1.0, 2.0, 3.0
  • LVDS
  • Ethernet
  • IEEE 1394

HSD Coding:

FAKRA HSD LVDS 4 Pin Connector Right Angle Type For GPS Antenna 0FAKRA HSD LVDS 4 Pin Connector Right Angle Type For GPS Antenna 1

Customization:

HSD PCB Connector
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
