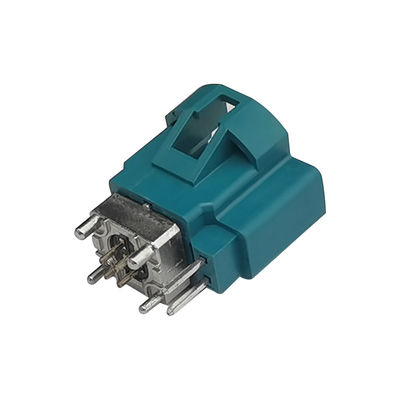

Straight Type FAKRA HSD Connector PCB Mount For Car Digital Infotainment Electronics

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range DC To 6 GHz Orientation Straight Type
Number Of Positions 4+2Pin Mounting Type PCB Mount
Impedance 100Ω Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
High Light

Straight Type FAKRA HSD Connector

,

PCB Mount FAKRA HSD Connector

Leave a Message
Product Description

Product Description:

HSD and High-Speed-Data Connector Systems in the Automotive Industry

The HSD+2, +4, +8 and HSD High-Speed-Data connector systems, operating at up to 6 GHz, are commonly used in the automotive industry. These systems provide a homogeneous impedance-controlled interconnect solution, specifically designed to meet the high-speed data and low-voltage requirements of real-time automotive applications.

The HSD system is highly compact and durable, utilizing shielded twisted quad cables and fully shielded 100 Ohm interconnects. It features mechanical keying and latching for secure connection retention, as well as coding to prevent misuse.

This high-performance system boasts excellent data throughput while also effectively preventing interference from crosstalk and external sources. This makes it the ideal choice for a range of applications, including LVDS cameras, USB connections, Ethernet (IEEE 802.3), and Firewire (IEEE 1394) connections. It is also well-suited for digital infotainment electronics, digital symmetrical networks, and even radio base stations.



Features:

  1. Impedance: 100 Ohm:This connector has an impedance of 100 Ohm, making it suitable for high frequency signals and data transfer.
  2. Temperature Range: -40 °C to +105 °C:This connector can operate in a wide temperature range, from -40 °C to +105 °C, ensuring durability and reliability in any environment.
  3. Codings: Mechanical and Colored:With multiple codings available, including different mechanical and colored options, this connector offers flexibility and ease of use.
  4. Neutral Coding:In addition to the various mechanical and colored codings available, there is also a neutral coding option for this connector.
  5. Primary and Secondary Locking Systems:The primary and secondary locking mechanisms on this connector provide high assembling security, preventing any accidental disconnections.
  6. Secure Coding System:To prevent any misuse, this connector features a secure coding system.
  7. Reliable and Durable:With its high-quality materials and construction, this connector is reliable and durable, ensuring long-lasting performance.
  8. Multiple Housings:For space-saving and quick plug-in operations, this connector is available in multiple housing options, providing flexibility for different installations.


Technical Parameters:

Parameter Value
Product Name FAKRA HSD Connector
Mounting Type PCB Mount
Orientation Straight Type
Operating Temperature -40℃ to +105℃
Working Voltage 60 V Rms
Impedance 100Ω
Frequency Range DC to 6 GHz
Number of Positions 4+2Pin
Applications LVDS Camera, USB, IEEE 1394
Services OEM, ODM Accept


Applications:

  • Automotive Electronics:The automotive industry heavily relies on advanced electronic systems to power vehicles and enhance driving experiences. From safety features to entertainment, automotive electronics play a crucial role in modern cars.
  • Telecom Industries:In addition to automobiles, the telecommunications industry also utilizes electronic components for various applications. This includes radio base stations, which are essential for wireless communication and signal transmission.
  • Digital infotainment electronics
  • Digital symmetrical networks
  • Radio base stations



HSD Coding:

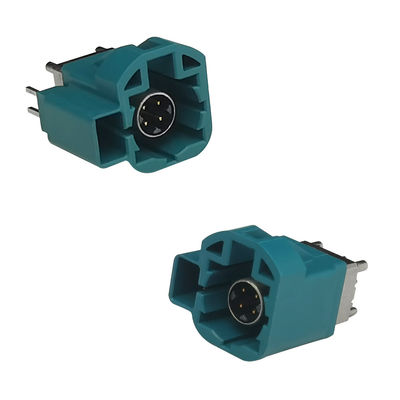

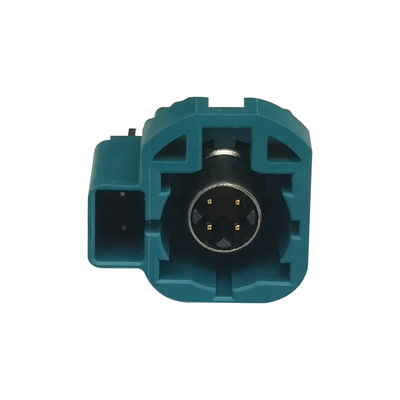

Straight Type FAKRA HSD Connector PCB Mount For Car Digital Infotainment Electronics 0Straight Type FAKRA HSD Connector PCB Mount For Car Digital Infotainment Electronics 1

Customization:

HSD PCB Connector
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
