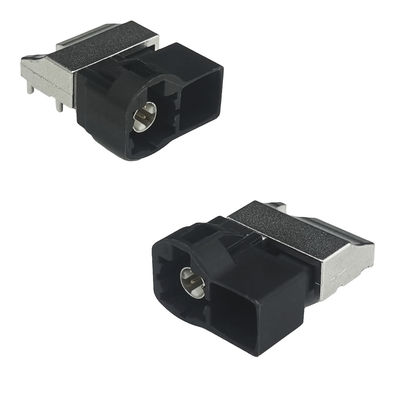

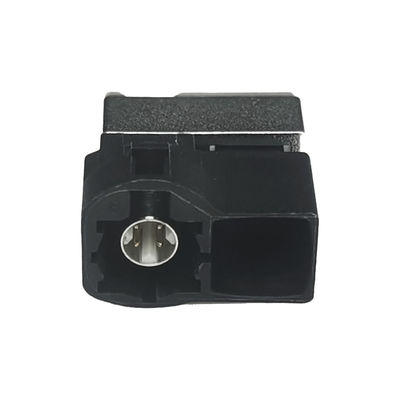

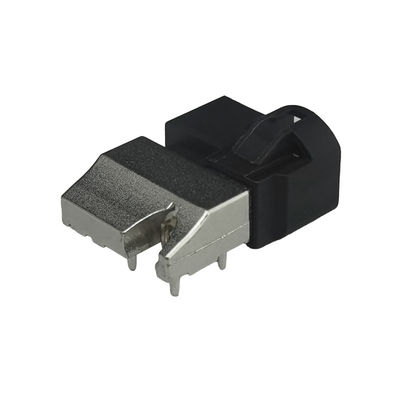

Right Angle FAKRA HSD Connector 4+4 Pin For Automotive LVDS Cameras

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 60 V Rms Number Of Positions 4+4Pin
Operating Temperature -40℃ To +105℃ Orientation Right Angle Type
Frequency Range DC To 6 GHz Mounting Type PCB Mount
Impedance 100Ω MOQ 20PCS
High Light

FAKRA HSD Connector 4+4 Pin

,

Automotive LVDS Cameras FAKRA HSD Connector

Leave a Message
Product Description

Product Description:

HSD interconnect system is designed for the automotive market, such as LVDS cameras, USB and IEEE 1394 applications. It is a high performance digital system for low-voltage differential signals that are protected from external crosstalk and interference.The HSD is a 100 Ω fully shielded interconnect that allows the use of shielded twisted pair cables.The HSD system features mechanical keying, latching, color coding options, and a minimum size to meet the requirements of the global automotive market.The HSD system is designed to meet the requirements of the automotive market.

Features:

  • The impedance of this product is 100 ohms.
  • The frequency range of this product is from DC to 6 GHz.
  • This product is capable of data rates up to 8 Gbps.
  • The temperature range for this product is from -40 °C to +105 °C.
  • This product has a minimum of 25 mating cycles.
  • This product has a minimum of 5 waterproof mating cycles.
  • This product features both mechanical and color coding, as well as a neutral code.
  • This product has both primary and secondary locking systems for increased assembly security.
  • Secure Coding System: Prevents Misuse
  • Primary and Secondary Locking Systems: High Assembly Security
  • Multiple Housings: Space Saving and Quick Plug-in:This product comes with multiple housings for space saving and quick plug-in operations.


Technical Parameters:

Product Name FAKRA HSD Connector
Mounting Type PCB Mount
Frequency Range DC To 6 GHz
Impedance 100Ω
Number of Positions 4+4Pin
Working Voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Orientation Right Angle Type
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept
Keywords HSD FAKRA, automotive connectors, automotive wire connectors


Applications:

  • Automotive electronics
  • Telecom industries, e.g. radio base stations
  • Digital infotainment electronics
  • Digital symmetrical networks
  • e.g. LVDS cameras, USB connections, Ethernet (IEEE 802.3) and Firewire (IEEE 1394)
  • USB 1.0, 2.0, 3.0
  • LVDS (Low Voltage Differential Signal)
  • Firewire (IEEE 1394)
  • GVIF



HSD Coding:

Right Angle FAKRA HSD Connector 4+4 Pin For Automotive LVDS Cameras 0Right Angle FAKRA HSD Connector 4+4 Pin For Automotive LVDS Cameras 1

Customization:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.

Support and Services:

  1. Accept OEM and ODM orders.
  2. Samples are free of charge, only the customer has to pay the courier fee.
  3. Support multiple logistics methods.
  4. Fast delivery time and first-class service.
