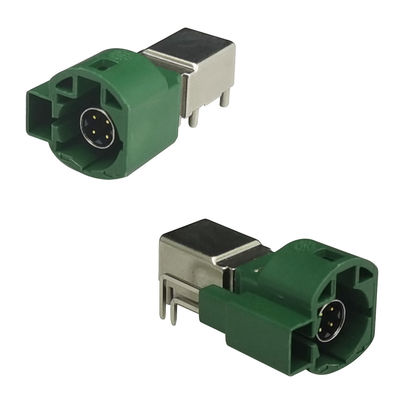

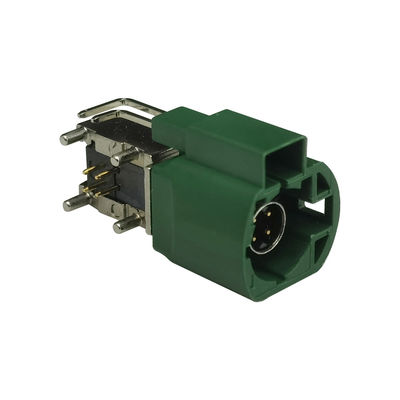

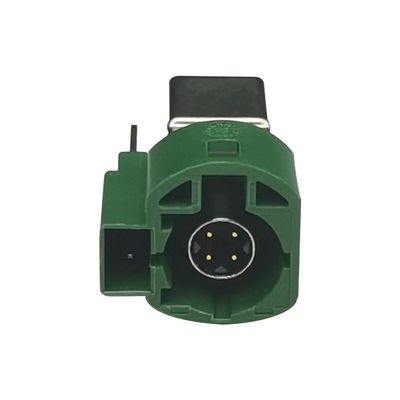

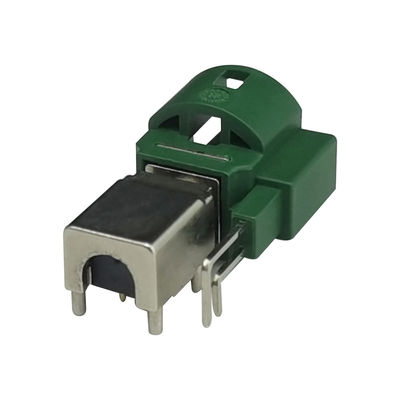

4+2Pin FAKRA HSD Connector Right Angle Car Vihicle LVDS Connectors For PCB Mount

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Positions 4+2Pin Orientation Right Angle Type
Working Voltage 60 V Rms Impedance 100Ω
Frequency Range DC To 6 GHz Mounting Type PCB Mount
Services OEM ODM Accept MOQ 20PCS
High Light

4+2Pin FAKRA HSD Connector

,

Car Vihicle FAKRA HSD Connector

Leave a Message
Product Description

Product Description:

The HSD connector, or High-Speed Data connector, stands at the forefront of automotive connectivity, serving as a crucial component in modern vehicles. Designed to facilitate high-speed data transmission, the HSD connector plays a pivotal role in diverse automotive applications, ranging from LVDS cameras and in-car entertainment systems to advanced driver assistance systems (ADAS) and Ethernet connections. Its innovative design ensures reliable and rapid data exchange, contributing to enhanced vehicle safety, navigation precision, and seamless communication between various electronic components.

With a focus on signal integrity, durability, and adaptability, the HSD connector embodies a cutting-edge solution for the dynamic demands of contemporary automotive technology.



Features:

  1. Efficient Data Transfer: HSD connectors ensure rapid and precise data exchange in automotive systems.
  2. Durable Build: Engineered for mechanical stress, HSD connectors deliver reliable performance in challenging conditions.
  3. Environmental Resilience: Resistant to temperature changes and interference, HSD connectors remain consistent in diverse settings.
  4. Easy Installation: With a plug-and-play design, HSD connectors are effortlessly set up, saving time and effort.
  5. Versatile Configurations: HSD connectors offer diverse setups, seamlessly adapting to various automotive systems.
  6. Protocol Compatibility: Compatible with LVDS, USB, and Ethernet, HSD connectors integrate smoothly with different communication protocols.
  7. ADAS Support: Essential for Advanced Driver Assistance Systems (ADAS), HSD connectors enhance safety features.
  8. Enhanced Video Transmission: Ideal for LVDS cameras, HSD connectors ensure reliable video data transmission, enhancing navigation and safety.
  9. In-Car Entertainment: Facilitating robust data transfer, HSD connectors elevate audio and video playback in in-car entertainment systems.

Technical Parameters:

Property Value
Product Type FAKRA HSD Connector
Cable Connector Coaxial Cable Connector
Impedance 100Ω
Operating Temperature -40℃ To +105℃
Number of Positions 4+2Pin
Mounting Type PCB Mount
Working voltage 60 V Rms
Orientation Right Angle Type
Frequency range DC To 6 GHz
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

Use of HSD Connectors in Automotive Applications
  1. Data Transmission Excellence: HSD connectors ensure rapid and reliable data exchange in automotive applications.
  2. Ethernet Efficiency: They establish high-speed Ethernet connections, enhancing communication within the vehicle network.
  3. Navigation Precision: Key to precise position determination and route calculations, optimizing navigation system performance.
  4. Entertainment Enhancement: Facilitating powerful data transmission, HSD connectors elevate in-car audio and video playback.
  5. ADAS Integration: Vital for advanced driver assistance systems (ADAS), supporting features like lane departure warning and collision avoidance.
  6. Infotainment Connectivity: Used to connect infotainment systems, seamlessly integrating touchscreen interfaces and navigation options.
  7. Vehicle Network Communication: HSD connectors enable efficient communication among different vehicle modules and systems.
  8. Autonomous Driving Facilitation: Supporting real-time data handling from sensors, crucial for accurate diagnostics and firmware updates in autonomous driving scenarios.



HSD Coding:

4+2Pin FAKRA HSD Connector Right Angle Car Vihicle LVDS Connectors For PCB Mount 04+2Pin FAKRA HSD Connector Right Angle Car Vihicle LVDS Connectors For PCB Mount 1



Customization:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
