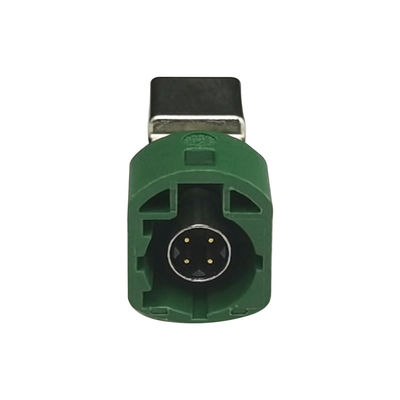

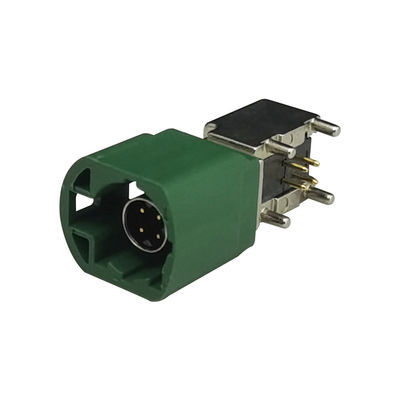

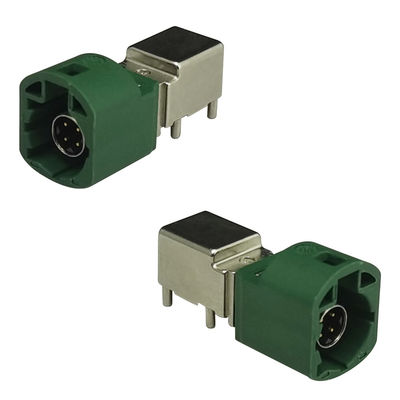

FAKRA HSD Connector Auto Vehicle LVDS 4pin Signal Connector For Benz

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Orientation Right Angle Type Operating Temperature -40℃ To +105℃
Frequency Range DC To 6 GHz Number Of Positions 4Pin
Mounting Type PCB Mount Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD connectors: High-speed, rugged solutions for automotive data transfer. Renowned for exceptional signal integrity and adaptability, these connectors support protocols like LVDS, USB, and Ethernet, ensuring reliable performance in challenging vehicle environments. Versatile and user-friendly, HSD connectors seamlessly integrate into existing automotive systems, offering unrivaled speed and reliability. Elevate your in-car entertainment, powertrain systems, and ADAS with HSD connectors – the choice for confident and futuristic automotive connectivity. Upgrade today and drive with unparalleled performance!



  • High-Speed & Reliable Data Transmission: Facilitates swift and dependable data exchange between devices.
  • Optimized Signal Integrity: Engineered for minimal data loss, ensuring precise signal transmission.
  • Rugged Durability: Resists mechanical stress, temperature variations, vibration, and electromagnetic interference.
  • Effortless Installation: Plug-and-play design ensures quick and easy installation, saving time and effort.
  • Flexible Configurations: Offers various configuration options to adapt to diverse automotive system requirements.
  • Protocol Compatibility: Easily integrates with different communication protocols like Ethernet, LVDS, USB, ensuring seamless data exchange with components.

Technical Parameters:

Parameter Description
Connector type Coaxial cable connector, Coaxial connector, FAKRA HSD Connector
Frequency range DC To 6 GHz
Impedance 100Ω
Number of Positions 4Pin
Working voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Orientation Right Angle Type
Mounting Type PCB Mount
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  • Versatile Automotive Applications: Widely employed in automotive systems, including LVDS cameras, in-car entertainment, ADAS, infotainment, and Ethernet connections.
  • Critical Role in ADAS: Key component in ADAS, supporting advanced features like lane departure warning, adaptive cruise control, and collision avoidance.
  • Enhanced Video Data Transmission: Connects LVDS cameras to the main control unit, ensuring reliable video data transmission for improved navigation and vehicle safety.
  • Powerful In-Vehicle Entertainment: Vital for in-vehicle entertainment, offering robust data transmission for smooth audio and video playback.
  • Integral to ADAS Data Transfer: Indispensable in ADAS, facilitating near-instant data transfer between different components and the main control unit.
  • Seamless Connectivity and High-Speed Data Transfer: Connects infotainment systems and enables Ethernet connectivity within vehicles for efficient high-speed data transfer.

HSD Coding:

FAKRA HSD Connector Auto Vehicle LVDS 4pin Signal Connector For Benz 0
FAKRA HSD Connector Auto Vehicle LVDS 4pin Signal Connector For Benz 1


HSD connectors bring top-notch connectivity to your automotive system, while our OEM and ODM services easily meet your individual needs. Choose HSD connectors to make automotive connections easy and smooth!

Support and Services:

  • Tailored Solutions Available: Explore custom options with our acceptance of OEM and ODM orders.
  • Free Samples, Shipping Fee Only: Samples come at no cost; customers only cover the courier fee.
  • Multiple Shipping Options: Choose from a range of logistics methods with our support.
  • Rapid Shipping, Excellent Service: Enjoy quick delivery with exceptional service.
