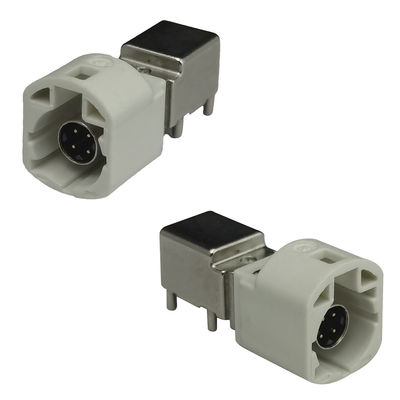

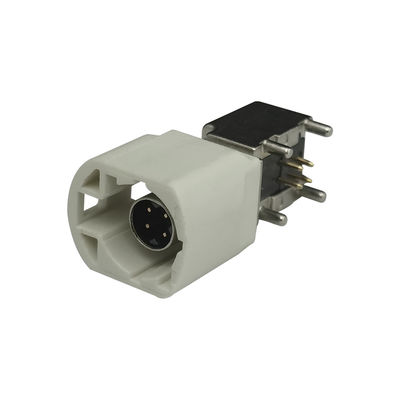

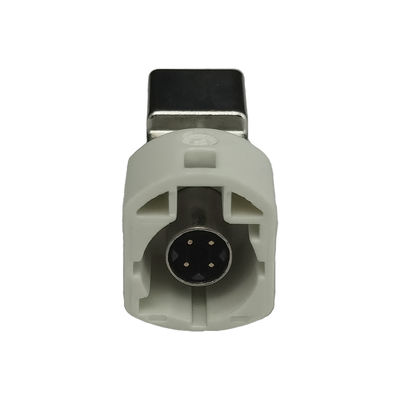

FAKRA HSD Connector 4 Pin PCB Mount For Benz Audi Rear Camera

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Orientation Right Angle Type Impedance 100Ω
Operating Temperature -40℃ To +105℃ Mounting Type PCB Mount
Working Voltage 60 V Rms Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD Connectors: The Best Choice for Automotive Applications

HSD connectors are the epitome of high-speed data connectivity for automotive applications, providing exceptional performance, signal integrity, and immunity to interference. Their robust design ensures reliability in harsh conditions, including temperature fluctuations and electromagnetic interference. Easy installation, adaptability to various protocols, and compatibility with LVDS, USB, and Ethernet make them a user-friendly and versatile choice. As a key technology in modern automotive electronics, HSD connectors guarantee lightning-fast data transfer, making them the ultimate solution for in-car entertainment, powertrain systems, and advanced driver assistance systems (ADAS). Upgrade your automotive systems with HSD connectors for unparalleled speed, reliability, and performance, driving confidently into the future of automotive connectivity.



  • High Speed Data Transmission: HSD connectors offer high speed data transmission, guaranteeing fast and reliable information exchange.
  • Signal Integrity: With superior signal integrity, HSD connectors minimize data loss and assure precise data transfer.
  • Durability: HSD connectors feature exceptional durability, enabling them to withstand mechanical load and climate influences.
  • Immunity: HSD connectors are engineered to be resistant to environmental influences such as temperature change, vibration and electromagnetic interference.
  • Ease of Installation: Quick and easy to install or remove, HSD connectors offer the convenience of plug-and-play, reducing the complexity and time input for the installation process and enhancing assembly efficiency.
  • Configuration Flexibility: HSD connectors supply a broad scope of configuration possibilities, including various pin configurations, gender and interfacing types, and the like. This facilitates the adaptation of the connector to a variety of automotive system and device needs.
  • Protocol compatibility: HSD connectors are suitable with a wide range of communication protocols, such as LVDS, USB, Ethernet, and more. This makes it easier for them to be seamlessly incorporated into multiple automotive electronic systems and equipment for effective data transmission.

Technical Parameters:

Parameter Value
Operating Temperature -40℃ To +105℃
Mounting Type PCB Mount
Frequency range DC To 6 GHz
Number of Positions 4Pin
Working voltage 60 V Rms
Orientation Right Angle Type
Impedance 100Ω
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  • Versatility: Widely used in LVDS cameras, in-car entertainment, ADAS, infotainment, and Ethernet connections.
  • ADAS Functionality: Key role in ADAS, ensuring reliable data transfer for features like lane departure warning and collision avoidance.
  • Video Data Transmission: Connects LVDS cameras to the main control unit, ensuring reliable video data transmission for improved navigation and vehicle safety.
  • Enhanced Entertainment: Facilitates powerful data transmission for smooth audio and video playback, enhancing the driving experience.
  • Instantaneous Data Transfer: Critical component in ADAS, ensuring almost instantaneous data transfer between sensors and the main control unit.
  • Infotainment Integration: Connects various components of infotainment systems, including touchscreen interfaces and navigation.
  • High-Speed Ethernet Connectivity: Crucial for high-speed data transfer within vehicles, supporting functions like diagnostics, firmware updates, and connectivity to vehicle services.


HSD Coding:

FAKRA HSD Connector 4 Pin PCB Mount For Benz Audi Rear Camera 0FAKRA HSD Connector 4 Pin PCB Mount For Benz Audi Rear Camera 1


HSD connectors are ideal for your automotive system, offering not only superior connectivity, but also a focus on meeting your unique needs. Our proud OEM and ODM services ensure that the connectors are a perfect fit for your specifications and standards, creating an outstanding solution for your automotive system.

Support and Services:

  • Custom Orders Welcome: We gladly accept OEM and ODM requests.
  • Free Samples with Courier Cost: Samples are free; customers are responsible for the courier fee.
  • Versatile Logistics Support: We offer support for various logistics methods.
  • Swift Delivery, Premier Service: Experience fast delivery and top-tier service.
