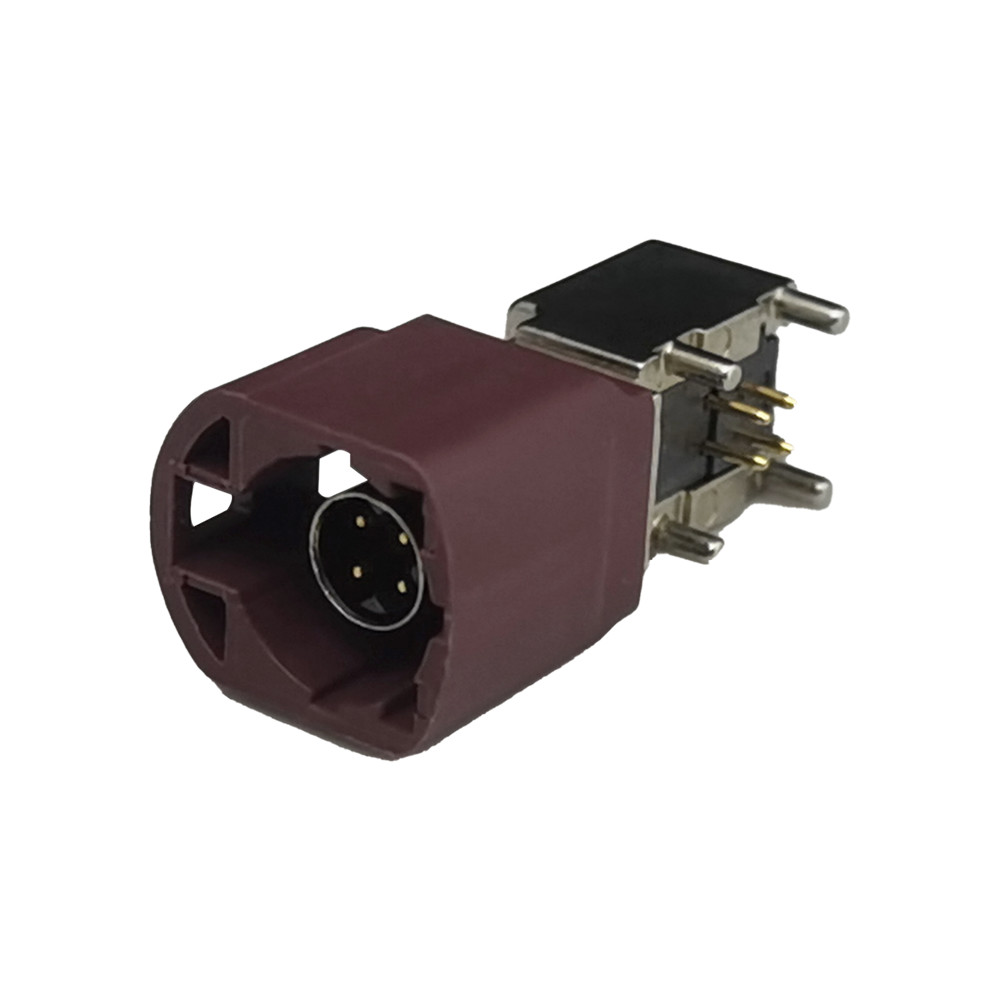

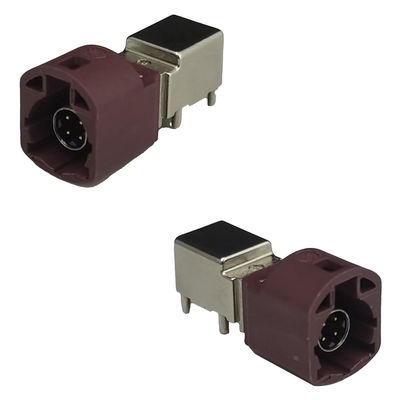

FAKRA HSD Connector Right Angle PCB Mount For Automotive Applications
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Orientation | Right Angle Type | Frequency Range | DC To 6 GHz |
|---|---|---|---|
| Working Voltage | 60 V Rms | Operating Temperature | -40℃ To +105℃ |
| Impedance | 100Ω | Applications | LVDS Camera, USB, And IEEE 1394 |
| Services | OEM ODM Accept | MOQ | 20PCS |
Product Description
Product Description:
HSD connectors: High-speed, reliable, and adaptable solutions for automotive data transmission. With exceptional signal integrity and rugged design, they ensure consistent performance even in harsh conditions. Easy to install and compatible with various protocols, HSD connectors are the future of automotive connectivity, exceeding expectations in in-car entertainment, powertrain systems, and ADAS. Trust HSD connectors for reliable, high-speed data transfer.
Features:
- High-Speed Data Transmission: Facilitates fast and reliable information exchange with high-speed data transmission.
- Excellent Signal Integrity: Reduces data loss and ensures accurate transmission for dependable connectivity.
- Exceptional Durability: Withstands mechanical stress and environmental challenges, ensuring long-lasting performance.
- Environmental Immunity: Resistant to temperature changes, vibration, and electromagnetic interference, providing good environmental immunity.
- Plug-and-Play Installation: Designed for easy plug-and-play installation, reducing complexity and saving installation time.
- Configuration Flexibility: Offers a wide range of configuration options, including different pin layouts and plug/socket types, adapting to diverse automotive system requirements.
- Protocol Compatibility: Highly compatible with various communication protocols such as LVDS, USB, Ethernet, etc., enabling efficient data exchange in automotive electronic
Technical Parameters:
| Parameter | Description |
|---|---|
| Keywords | Automotive Wire Connectors, HSD Connector Automotive, Automotive Connectors HSD |
| Impedance | 100Ω |
| Working voltage | 60 V Rms |
| Number of Positions | 4Pin |
| Orientation | Right Angle Type |
| Operating Temperature | -40℃ To +105℃ |
| Mounting Type | PCB Mount |
| Frequency range | DC To 6 GHz |
| Applications | LVDS Camera, USB, And IEEE 1394 |
Applications:
HSD Connectors in Automotive Systems
1. Key applications include LVDS cameras, in-car entertainment systems, advanced driver assistance systems (ADAS), infotainment systems and Ethernet connectivity.
2. In Advanced Driver Assistance Systems (ADAS): HSD connectors enable near-instantaneous data transfer between sensors for functions such as lane departure warning, adaptive cruise control and collision avoidance.
3. LVDS cameras for reliable video data transfer: provide robust data transfer support to ensure smooth audio and video playback. It can also be used as a data transmission medium for connecting infotainment systems such as automotive touchscreen interfaces, navigation systems and external connectivity options.
4. In-vehicle Ethernet connectivity for high-speed data transfer, including vehicle diagnostics, firmware updates and vehicle service connectivity.
HSD Coding:
Customization:
HSD connectors not only guarantee excellent connectivity in automotive systems, but also provide professional OEM and ODM services to meet individual needs. Choose HSD connectors to start a unique and innovative journey in the field of automotive connectivity!
Support and Services:
- OEM and ODM Capabilities: Leverage our capabilities for OEM and ODM orders.
- No-Cost Samples, Shipping Fee Applies: Avail free samples; the only charge is for the courier.
- Diverse Logistics Assistance: Our support extends to multiple logistics methods.
- Speedy Delivery, Top-Notch Service: Quick shipping with exceptional service.
