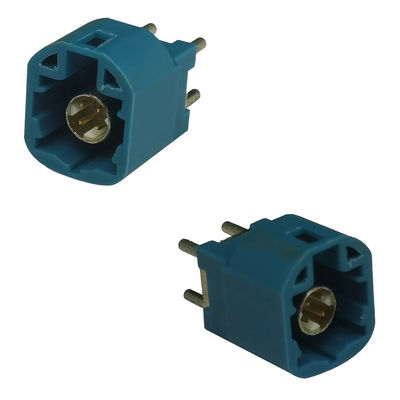

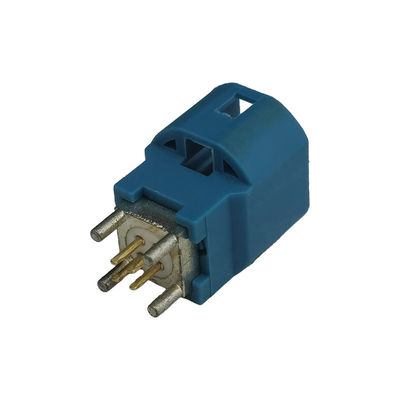

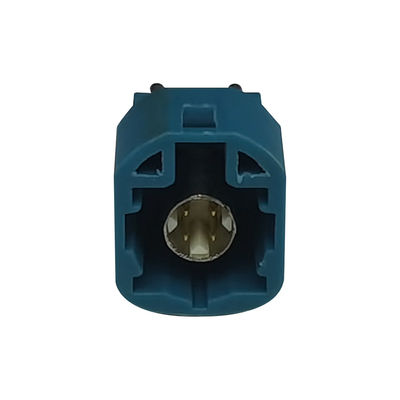

FAKRA HSD Connector Auto Vehicle LVDS 4pin Signal Connector For BMW

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Working Voltage 60 V Rms Frequency Range DC To 6 GHz
Orientation Straight Type Number Of Positions 4Pin
Impedance 100Ω Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

Connect Your Vehicle with HSD Connectors
HSD connectors: Essential for swift, reliable automotive data transmission. Superior signal integrity, robustness, and easy installation make them ideal for seamless communication. Renowned for superior performance, they withstand challenges, ensuring consistent operation. Upgrade to HSD for lightning-fast data transmission in in-car entertainment, powertrain systems, and ADAS. No delays, no signal issues – HSD connectors excel in automotive applications.


  1. HSD connectors provide high speed data transmission, ensuring fast and reliable information exchange.
  2. Signal integrity is excellent, reducing data loss and ensuring accurate transmission.
  3. These connectors offer superior durability and can withstand varying mechanical stress and environmental challenges.
  4. They are also designed to better protect against environmental disturbances such as temperature changes, vibration and electromagnetic interference.
  5. HSD connectors offer quick and easy installation due to their plug-and-play capabilities.
  6. Configuration flexibility is another advantage, with different pin layouts, plug and socket types available.
  7. Protocol compatibility is wide, with support for a range of communication protocols such USB, Ethernet, LVDS, etc.

Technical Parameters:

Property Description
Product FAKRA HSD LVDS 4Pin automotive wire connectors hsd connector automotive
Frequency range DC to 6 GHz
Impedance 100Ω
Mounting Type PCB Mount
Working voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Orientation Straight Type
Number of Positions 4Pin
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  • Versatile Automotive Applications: HSD connectors are widely used in various automotive systems, including LVDS cameras, in-car entertainment, ADAS, infotainment, and Ethernet connections.
  • Critical Role in ADAS: Key component in ADAS, supporting advanced features like lane departure warning, adaptive cruise control, and collision avoidance.
  • Enhanced Video Data Transmission: Connects LVDS cameras to the main control unit, ensuring reliable video data transmission for improved navigation and vehicle safety.
  • Data Transfer for In-Vehicle Entertainment: Serves as a data transfer medium for connecting in-vehicle entertainment systems, including touchscreen interfaces, navigation systems, and connectivity options.
  • High-Speed Ethernet Connectivity: Used for Ethernet connectivity within vehicles, facilitating high-speed data transfer for functions like vehicle diagnostics, firmware updates, and connectivity to vehicle services.


HSD Coding:

FAKRA HSD Connector Auto Vehicle LVDS 4pin Signal Connector For BMW 0FAKRA HSD Connector Auto Vehicle LVDS 4pin Signal Connector For BMW 1


HSD connectors provide excellent connectivity for your automotive system, and we offer professional OEM and ODM services dedicated to meeting individual needs. Choose HSD connectors for unique innovations in automotive connectivity!

Support and Services:

  • Your Brand, Your Way: Make it yours with our acceptance of OEM and ODM orders.
  • Cover Shipping, Samples on Us: Samples are complimentary; customers cover the shipping fee.
  • Flexibility in Logistics: Enjoy flexibility with our support for various logistics methods.
  • Rapid Dispatch, Premier Assistance: Fast delivery time coupled with first-class service.
