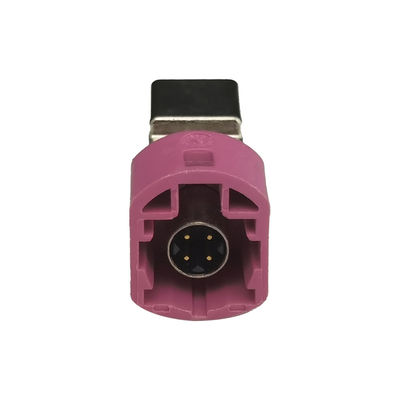

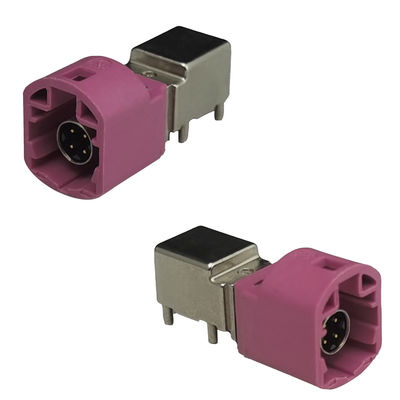

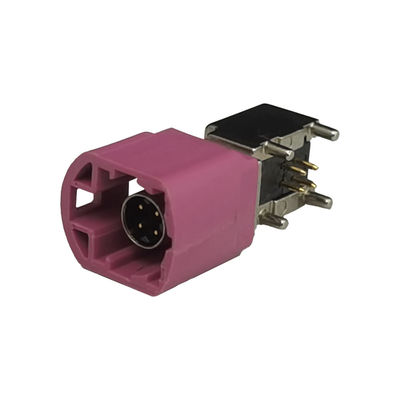

FAKRA HSD Connector 4 pin 90 Degree PCB Mount Right Angle Coaxial Connector

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100Ω Number Of Positions 4Pin
Operating Temperature -40℃ To +105℃ Working Voltage 60 V Rms
Frequency Range DC To 6 GHz Services OEM ODM Accept
Applications LVDS Camera, USB, And IEEE 1394 MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD connectors: high-speed, reliable solutions for automotive data transfer. With exceptional signal integrity and rugged design, they excel in harsh conditions. Easy installation, versatile compatibility, and advanced technology make them the ultimate choice for seamless communication between vehicle components. Upgrade your automotive systems with HSD connectors for unparalleled speed and confidence on the road!

Features:

  • High-Speed Data Transmission: HSD connectors ensure rapid and reliable exchange of information through high-speed data transmission.
  • Excellent Signal Integrity: They provide excellent signal integrity, minimizing data loss and ensuring precise transmission accuracy.
  • Exceptional Durability: HSD connectors are highly durable, capable of withstanding mechanical stress and challenging environmental conditions.
  • Immunity to External Disturbances: Designed with immunity to external disturbances like temperature changes, vibration, and electromagnetic interference.
  • Plug-and-Play Convenience: Typically plug-and-play, making installation and removal quick and easy, reducing complexity, and enhancing assembly efficiency.
  • Configurational Versatility: Offering a wide range of configuration options, including different pin layouts and plug/socket types, adaptable to various automotive systems.
  • Compatibility with Communication Protocols: Compatible with diverse communication protocols (LVDS, USB, Ethernet), ensuring seamless integration with different vehicle electronic systems for efficient data exchange.


Technical Parameters:

Parameter Description
Connector Type HSD FAKRA Coaxial Connector
Mounting Type PCB Mount
Operating Temperature -40℃ To +105℃
Frequency Range DC To 6GHz
Orientation Right Angle Type
Number of Positions 4Pin
Working Voltage 60V Rms
Impedance 100Ω
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

  • Versatile Automotive Application: Widely employed in various automotive systems, including LVDS cameras, in-car entertainment, ADAS, infotainment, and Ethernet connections.
  • Crucial Role in ADAS: Key component in ADAS, supporting advanced features like lane departure warning, adaptive cruise control, and collision avoidance.
  • Enhanced Video Data Transmission: Ensures reliable video data transmission and improves navigation and vehicle safety for LVDS cameras.
  • Powerful Data Transmission for Entertainment: Provides powerful data transmission for in-vehicle entertainment systems, ensuring smooth audio and video playback.
  • Integral to ADAS Data Transfer: Indispensable in ADAS, supporting near-instantaneous data transfer between sensors and the main control unit.
  • Connectivity for Infotainment Systems: Used as a data transfer medium to connect infotainment systems, including touchscreen interfaces, navigation, and connectivity options.
  • Ethernet Connectivity: Widely used for Ethernet connectivity within vehicles, facilitating high-speed data transfer for vehicle diagnostics, firmware updates, and connectivity to vehicle services.



HSD Coding:

FAKRA HSD Connector 4 pin 90 Degree PCB Mount Right Angle Coaxial Connector 0FAKRA HSD Connector 4 pin 90 Degree PCB Mount Right Angle Coaxial Connector 1




Customization:

HSD connectors are a key component in achieving top-notch connectivity in automotive systems, and we offer specialized OEM and ODM services to ensure a perfect fit for your unique needs. We offer customized solutions to meet the individual needs of automotive connectivity.  Choose HSD connectors for specialized innovation in automotive connectivity!


Support and Services:

  • Personalized Manufacturing: Embrace personalization with our acceptance of both OEM and ODM requests.
  • Free Samples with Courier Cost: Samples are free; customers are responsible for the courier fee.
  • Options in Logistics Support: Explore different logistics methods with our comprehensive support.
  • Swift Shipping, Exceptional Support: Efficient delivery and top-tier assistance.
