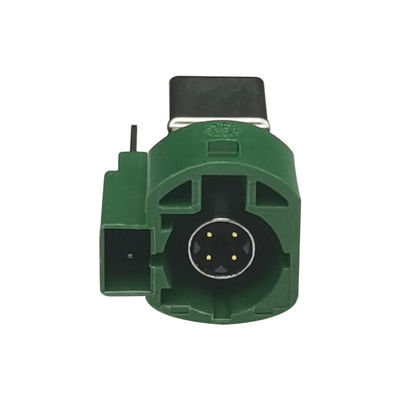

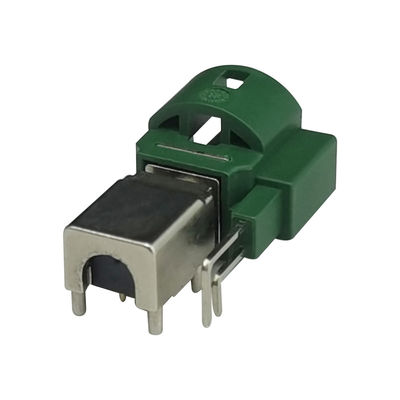

FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type PCB Mount

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Frequency Range DC To 6 GHz Operating Temperature -40℃ To +105℃
Orientation Right Angle Type Color Leaf Green Color
Number Of Positions 4+2Pin Working Voltage 60 V Rms
Applications LVDS Camera, USB, And IEEE 1394 MOQ 20PCS
Leave a Message
Product Description

Product Description:

Automotive High-Speed Data (HSD) PCB connectors are essential parts in contemporary cars which aid the transfer of high-speed data among various automobile systems. These connectors make a huge impact in support of sophisticated technologies as well as the driving experience. Advantages lie in their capability of guaranteeing efficient and dependable data transmission between vehicles, providing better connectivity and boosting the joy of driving.



  • High-Speed Data Transmission: HSD PCB Connectors enable swift real-time data transfer with low latency, crucial for safety and responsiveness, and support high-quality audio and video for in-car entertainment.
  • Compatibility with Advanced Technologies: HSD connectors are compatible with new automotive tech, space-efficient, easy to install, and suitable for various automotive systems, enhancing convenience and efficiency.
  • Enhanced Data Security: These connectors offer robust data security, ensuring the protection of sensitive automotive information and promoting seamless integration with other vehicle systems, particularly in advanced driver assistance systems.

Technical Parameters:

Technical Parameter Details
Frequency range DC to 6 GHz
Impedance 100Ω
Number of Positions 4+2Pin
Mounting Type PCB Mount
Orientation Right Angle Type
Operating Temperature -40℃ To +105℃
Applications LVDS Camera, USB, And IEEE 1394
Working voltage 60 V Rms
Connector Type Coaxial Cable Connector, Automotive Connectors
Services OEM ODM Accept


  • Infotainment Systems: Enable fast multimedia data transmission for a rich in-car entertainment experience.
  • Navigation Systems: Provide real-time map updates and accurate navigation for safe arrivals.
  • Driver Assistance Systems: Ensure sensor and camera data reach applications, supporting advanced driver assistance and autonomous driving.
  • Vehicle Communication: Facilitate inter-vehicle communication for road safety and coordination.
  • Vehicle Diagnostics: Monitor performance and health data, informing remote diagnostics and maintenance.
  • Control Module Communication: Guarantee data exchange between control modules, including engine, braking, and chassis control.
  • Data Buses: Enable data transfer between sensors and control systems, optimizing vehicle operations.


HSD Coding:

FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type PCB Mount 0FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type PCB Mount 1




We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Support and Services:

FAKRA HSD Connector Technical Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
