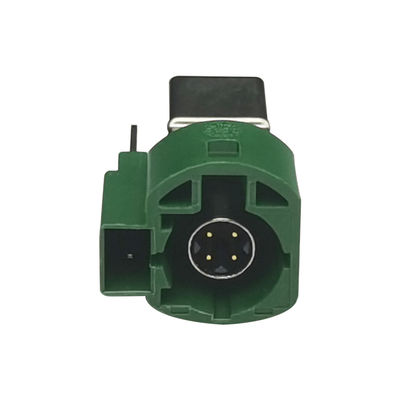

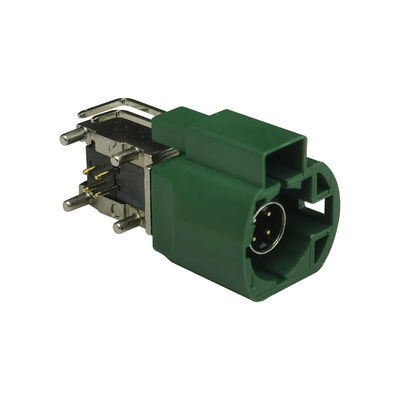

Automotive FAKRA HSD LVDS 4+2Pin Connector E-Code For PCB Mount

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Color Leaf Green Color Working Voltage 60 V Rms
Number Of Positions 4+2Pin Impedance 100Ω
Frequency Range DC To 6 GHz Operating Temperature -40℃ To +105℃
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

Automotive High-Speed Data (HSD) PCB connectors have an essential role to play in the automotive industry. Built with the purpose of transferring high-frequency data between numerous automotive systems, these connectors provide an environment of advanced technology that facilitates an improved driving experience.

Not only do HSD PCB connectors guarantee a secure and rapid data exchange, they also actively contribute to the enhancement of road safety, connectivity, and entertainment. With these connectors, automobile manufacturers are able to provide customers with a higher level of quality as they focus on equipping their vehicles with the latest features.



  • High-speed Data Transmission: HSD PCB connectors ensure swift, real-time data transfer, supporting safety, high-quality audio and video, and in-car entertainment.
  • Reliability & Compatibility: These connectors are durable, dependable, and seamlessly work with other automotive systems, reducing integration challenges.
  • Space Efficiency & Easy Installation: Compact and easy-to-install, HSD connectors maximize space efficiency and minimize maintenance efforts.
  • Versatility & Driver Assistance: Suitable for various automotive systems, from infotainment to diagnostics, HSD connectors enhance convenience and safety, supporting advanced driver assistance.

Technical Parameters:

Parameters Specifications
Color Leaf Green Color
Working Voltage 60 V Rms
Code E-code
Impedance 100Ω
Operating Temperature -40℃ to +105℃
Orientation Right Angle Type
Mounting Type PCB Mount
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  • Infotainment Systems: Enable high-speed multimedia data transmission for rich in-car entertainment, including streaming media and internet access for passenger entertainment and information.
  • Navigation Systems: Provide real-time traffic and navigation data for accurate, on-time guidance around traffic delays.
  • Driver Assistance Systems: Transmit data from sensors and cameras, supporting safety and convenience functions in automated and autonomous driving.
  • Vehicle Communication: Facilitate real-time inter-vehicle communication to enhance driver safety, coordination, and collision prevention.
  • Communication between Control Modules: Ensure proper vehicle operation by connecting vehicle control systems, including engine and chassis control, through data exchange.
  • Data Buses: Support intelligent functions by transferring data between sensors and control systems, enabling advanced features.


HSD Coding:

Automotive FAKRA HSD LVDS 4+2Pin Connector E-Code For PCB Mount 0Automotive FAKRA HSD LVDS 4+2Pin Connector E-Code For PCB Mount 1



We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
