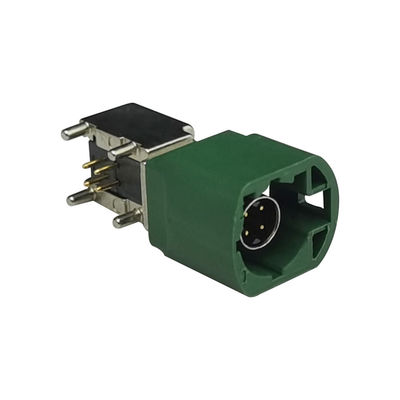

FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Code E-code Working Voltage 60 V Rms
Color Leaf Green Color Impedance 100Ω
Number Of Positions 4Pin Frequency Range DC To 6 GHz
MOQ 20PCS Services OEM ODM Accept
Leave a Message
Product Description

Product Description:

Automotive Connectors HSD Connector: Enabling High-Speed Data Transmission in the Automotive Field

HSD Connector is a specialized high-speed data transmission solution for vehicles, offering exceptional performance and versatility. It supports real-time data exchange between vehicle systems, enhancing the driving experience. This connector is widely used in automotive applications, connecting infotainment, navigation, cameras, and communication systems, with the durability to withstand harsh environments. Its contribution to advanced automotive technologies, especially in autonomous driving, makes it a crucial part of the industry's evolution.



  • High-speed Data Transmission: Swiftly handles large data for high-quality media and real-time info.
  • Anti-interference: Ensures stable, reliable data connections in EM interference environments.
  • Reliability: Remains dependable in challenging conditions.
  • High Bandwidth: Supports top-quality media and communications.
  • Space-saving: Maximizes in-vehicle space with a compact design.
  • Durability: Reliable operation despite vibrations and temperature fluctuations.
  • Easy Installation: Simplified connectivity for effortless setup.
  • Versatility: Suitable for a wide range of automotive systems, offering convenience and efficiency.

Technical Parameters:

Product Name FAKRA HSD Connector
Code E-code
Orientation Right Angle Type
Mounting Type PCB Mount
Number of Positions 4Pin
Impedance 100Ω
Frequency Range DC To 6 GHz
Color Leaf Green Color
Operating Temperature -40℃ To +105℃
Key Words Automotive Wire Connectors, HSD Connector Automotive, Automotive Connectors
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  • High Definition Media System: Connects to in-vehicle entertainment for high-quality audio and video.
  • Navigation System: Supports real-time map updates and navigation data.
  • Reversing Camera: Provides visual assistance for drivers with a connected camera.
  • Vehicle Communication: Enables real-time communication between vehicles, including V2V communication.
  • Driver Assistance Systems: Support autonomous driving functions using sensors and cameras.
  • Vehicle Diagnostics: Transmits vehicle data for maintenance and remote diagnostics.
  • Vehicle Control Module: Manages engine, braking, and chassis control.
  • Vehicle Infotainment System: Transmits multimedia content and offers Internet connectivity.


HSD Coding:

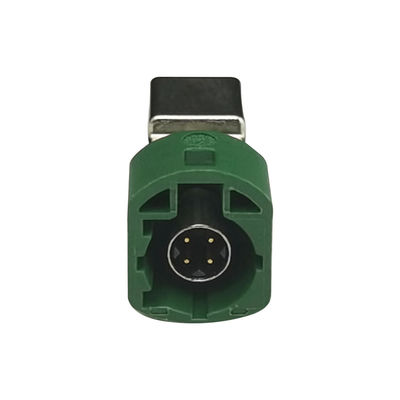

FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount 0FAKRA HSD LVDS 4 Pin Connector E-Code Right Angle Type For PCB mount 1



We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
