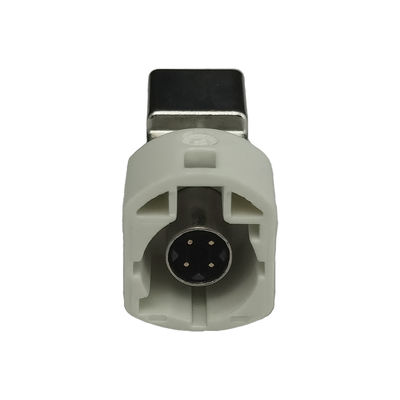

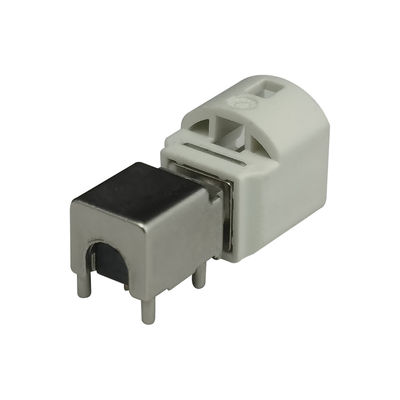

FAKRA HSD Connector White Color B-Code PCB/Panel Mount Connector

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color White Color Code B-code
Working Voltage 60 V Rms Orientation Right Angle Type
Impedance 100Ω Number Of Positions 4PIN
Applications LVDS Camera, USB, And IEEE 1394 MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD connectors represent a high-performance digital interconnect system specifically engineered for low-voltage differential signaling in automotive applications. Designed to counter crosstalk and interference from external sources effectively, HSD connectors are primarily used in critical automotive components such as LVDS cameras, USB interfaces, IEEE 1394, digital infotainment electronics, digital symmetrical networks, USB versions (1.0, 2.0, 3.0), LVDS, Ethernet, and GVIF systems.
They ensure secure connections through primary and secondary locks. Furthermore, the coding efficiency of HSD connectors, achieved by distinct coding on the plastic housing, prevents misconnections and enhances overall system performance.



  • Efficient Data Transfer: Enables quick and reliable data transmission in automotive systems.
  • Enhanced Security: Reduces crosstalk and interference, ensuring secure signal transmission.
  • Secure Connection: Features secure primary and secondary locks to prevent misconnections.
  • Versatile Protocol Support: Compatible with USB and Ethernet protocols, enhancing functionality.
  • Cost-Effective Cabling: Maximizes space usage with minimal cabling for cost efficiency.
  • Broad Compatibility: Works with shielded and unshielded versions, ensuring compatibility.
  • Optimized Signal Integrity: Enhances performance for specific automotive applications like cameras and infotainment systems.


Technical Parameters:

Property Details
Number of Positions 4Pin
Orientation Right Angle Type
Working voltage 60 V Rms
Operating Temperature -40℃ To +105℃
Impedance 100Ω
Code B-code
Mounting Type PCB Mount
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept



  • LVDS Cameras: Reliable signal transmission crucial for vehicle safety cameras.
  • USB Interfaces: Efficient in-car data transfer, facilitating device connections and control.
  • Infotainment Electronics: Reliable data transfer for seamless operation of infotainment systems.
  • Ethernet Connectivity: High-speed connections enhancing automotive networking.
  • GVIF (Gigabit Video Interface): Enables high-speed video transfer for top-quality multimedia.
  • Digital Symmetrical Networks: Efficient data transmission within vehicle networks.
  • Control Systems: Essential data transmission for vehicle control systems.
  • Navigation Systems: High-speed data transfer vital for advanced navigation functionality.
  • Telematics: Reliable data transfer for live vehicle status updates.
  • Vehicle Diagnostics: Transmitting diagnostic data to monitor and maintain vehicle health.



HSD Coding:

FAKRA HSD Connector White Color B-Code PCB/Panel Mount Connector 0FAKRA HSD Connector White Color B-Code PCB/Panel Mount Connector 1




We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.

Support and Services:

1.Fast delivery time and first-class service.

2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.

4.Accept OEM and ODM orders.
