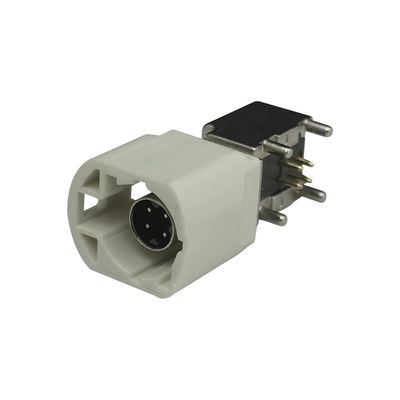

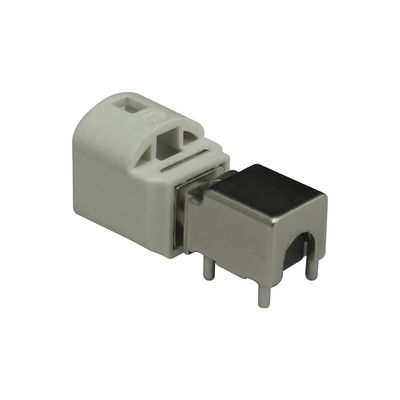

FAKRA HSD LVDS 4Pin B-Code White Color Right Angle PCB Mount Connector

  • FAKRA HSD LVDS 4Pin B-Code White Color Right Angle PCB Mount Connector
  • FAKRA HSD LVDS 4Pin B-Code White Color Right Angle PCB Mount Connector
Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Code B-code Orientation Straight Type
Mounting Type PCB Mount Operating Temperature -40℃ To +105℃
Color White Color Working Voltage 60 V Rms
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD connectors are specifically designed for low-voltage differential signaling in automotive applications. These connectors feature superior performance in terms of crosstalk and interference-resistance from external sources. They are widely used in automotive components and other digital devices, such as LVDS cameras, USB interfaces, IEEE 1394, digital infotainment electronics, digital symmetrical networks, USB versions (1.0, 2.0, 3.0), LVDS, Ethernet, and GVIF systems.

HSD connectors are designed with coding on the plastic housing, which provides coding efficiency and prevents misconnections and further improves system performance. The connectors are also equipped with primary and secondary locks to ensure secure connections.



Features:

  1. Efficient Data Transfer: Facilitates rapid and effective data transmission in vehicles.
  2. Crosstalk and Interference Minimization: Reduces crosstalk and interference through effective shielding.
  3. Secure and Stable Connectivity: Ensures stable connections with primary and secondary locks.
  4. Minimized False Connections: Prevents false connections, improving overall performance.
  5. Versatile Protocol Support: Compatible with key protocols like USB and Ethernet.
  6. Cost-Effective Wiring: Requires minimal wiring for cost efficiency.
  7. Easy Integration: Seamlessly integrates with other HSD components for standardization.
  8. Tailored Shielding Options: Offers shielded and unshielded models to match specific shielding requirements.
  9. Enhanced Signal Integrity: Elevates signal integrity, optimizing network performance.
  10. Diverse Automotive Applications: Tailored for various automotive uses including cameras, USB, and infotainment systems.


Technical Parameters:

Parameter Description
Operating Temperature -40℃ To +105℃
Number of Positions 4+2Pin
Services OEM ODM Accept
Orientation Straight Type
Frequency range DC To 6 GHz
Color White Color
Mounting Type PCB Mount
Working voltage 60 V Rms
Connector Type FAKRA HSD Connector (Coaxial)
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

  1. LVDS Cameras: Efficient signal for vehicle cameras, low power, versatile.
  2. USB Interface: Reliable in-car USB data transfer, follows USB protocol.
  3. Infotainment Electronics: Secure data transfer in infotainment, enhances entertainment.
  4. Ethernet Connectivity: Fast networking in vehicles, uses advanced tech.
  5. GVIF (Gigabit Video Interface): Quick, secure video transfer, exceeds standard speed.
  6. Digital Symmetric Network: Efficient data transfer within vehicles, optimized.
  7. Control Systems: Reliable data transmission from vehicle control, secure.
  8. Navigation Systems: Swift data transfer for advanced navigation.
  9. Telematics Systems: Rapid, reliable data transfer for telematics.
  10. Vehicle Diagnostic System: Secure data exchange for precise vehicle monitoring.



HSD Coding:

FAKRA HSD LVDS 4Pin B-Code White Color Right Angle PCB Mount Connector 0FAKRA HSD LVDS 4Pin B-Code White Color Right Angle PCB Mount Connector 1




Customization:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.



Tags:

Lightweight FAKRA HSD Connector

Practical FAKRA Male Connector

Female FAKRA HSD Connector
