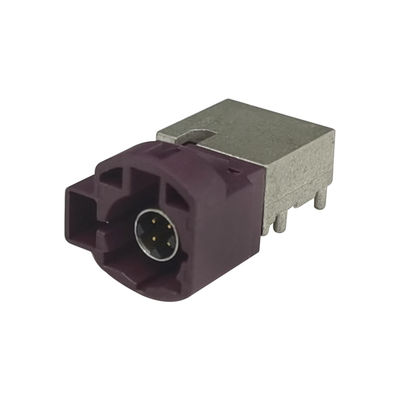

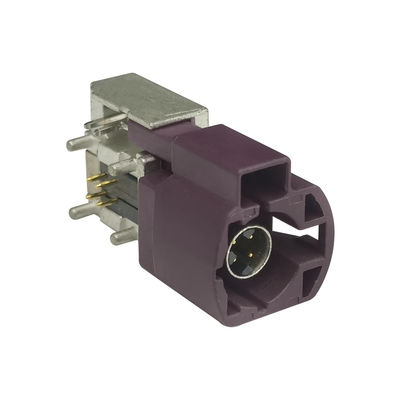

FAKRA HSD LVDS 4+2Pin 90 Degree PCB Mount Right Angle Coaxial Connector
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Orientation | Right Angle Type | Working Voltage | 60 V Rms |
|---|---|---|---|
| Operating Temperature | -40℃ To +105℃ | Color | Claret Violet Color |
| Number Of Positions | 4+2Pin | Mounting Type | PCB Mount |
| Services | OEM ODM Accept | MOQ | 20PCS |
Product Description
Product Description:
HSD 4+2 Pin Connector: A High-Performance Digital SystemHSD 4+2 pin connector optimally safeguards low voltage differential signals from interference in high-performance digital systems. Widely used in automotive electronics for diverse applications like cameras, USB connections, and more, it offers flexible power pin configurations (+2, +4, +8) and customizable options. With secure locking mechanisms and efficient coding, it ensures a reliable and efficient connection, enhancing automotive functionality.
Features:
- Signal Integrity:Ensures optimal signal quality during high-speed data transmission, vital for stable and secure automotive connections.
- Customizable Power:Flexible +2, +4, +8 power pin options to meet varied automotive power supply requirements.
- Efficient Locking:Primary and secondary locks for secure and uninterrupted automotive connectivity.
- Easy Installation & Cable Management:Simplifies installation with crimp connections and efficient cable handling for a consistent, stable in-vehicle link.
- Versatility:Adaptable to a broad range of automotive applications, offering reliable shielding against interference for diverse connectivity needs.
Technical Parameters:
| Parameter | Value |
|---|---|
| Number of Positions | 4+2Pin |
| Color | Claret Violet Color |
| Frequency range | DC To 6 GHz |
| Code | D-code |
| Operating Temperature | -40℃ To +105℃ |
| Orientation | Right Angle Type |
| Mounting Type | PCB Mount |
| Applications | LVDS Camera, USB, And IEEE 1394 |
| Product Type | Coaxial cable connector, Coaxial connector, Automotive wire connectors |
| Services | OEM ODM Accept |
Applications:
- LVDS Cameras for Data Speed:Employs low-voltage differential signaling for rapid data transmission in automotive cameras.Enables seamless integration with infotainment systems, enhancing in-car entertainment.
- Efficient Vehicle Diagnostics:Facilitates swift and accurate data transfer during automotive diagnostics.Enhances data transmission in ADAS for critical safety features like collision avoidance and lane departure warnings.
- Wireless Technology Optimization:Vital for high-speed data transmission in wireless base stations and wireless charging systems.Ensures optimal charging experiences through efficient data transmission in integrated wireless charging systems.
- Enhanced Connectivity in Networks:Optimizes data transmission in automotive digital symmetrical networks, improving connectivity.Enables efficient data transfer in USB hub systems and various vehicle components.
HSD Coding:
Customization:
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution.
For more information and pricing, please contact us.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
FAQ:
1.Q: Can I request customized product features or specifications to meet my specific needs?
A: No. We support both OEM and ODM orders.
2.Q: Is there a minimum order quantity (MOQ)?
A: 20 PCS.
3.Q: Is there a charge for product samples?
A: No. Samples are free of charge and customers only need to pay for the courier fee.
