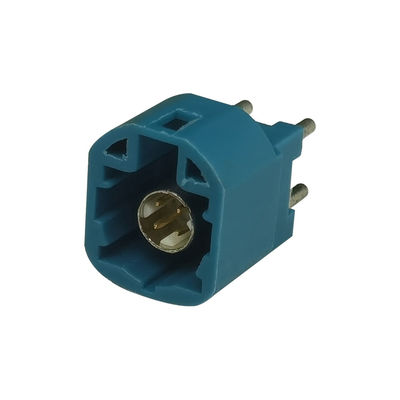

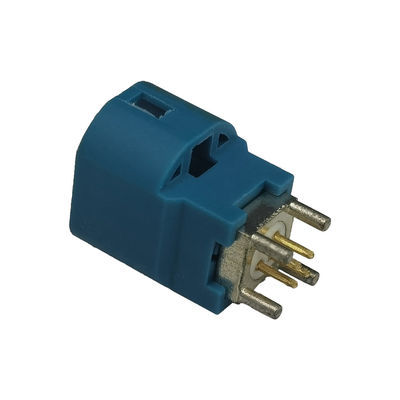

FAKRA HSD LVDS 4 PIN Straight Type Z-Code Automotive Connector

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Temperature -40℃ To +105℃ Mounting Type PCB Mount
Frequency Range DC To 6 GHz Orientation Straight Type
Impedance 100Ω Working Voltage 60 V Rms
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

The High Speed Digital (HSD) connector is an important breakthrough for the automotive industry, designed to meet the growing demand for high performance digital systems. It takes a simplified approach by using only one pair of data wires with a choice of shielded and unshielded twisted pair.

The HSD connector offers many advantages for a variety of automotive applications. It enables faster, more accurate data transfer, helping vehicles operate more efficiently with fewer unplanned interruptions.

In addition, HSD connectors are more resilient to interference from other devices and the environment, making them suitable for the most challenging automotive applications. This ensures that the vehicle's control system remains stable, reliable and safe.


  • Efficient Data Flow: Uses a single data pair for fast and error-free data transmission.
  • Resilience to Interference: Handles low-voltage differential signals with resilience against interference.
  • Secure Locking: Provides a secure connection with primary and secondary locks.
  • Easy Crimping: Facilitates easy and effective crimp connections.
  • Strong Cable Retention: Ensures a stable connection with high cable retention.
  • Streamlined Coding: Uses different codes for easy and error-free connections.
  • Seamless Integration: Integrates smoothly with various automotive electronics, enhancing overall efficiency.
  • Enhanced Infotainment: Elevates user experience in digital infotainment systems with seamless multimedia integration.

Technical Parameters:

Parameter Value
Working voltage 60V Rms
Mounting Type PCB Mount
Impedance 100Ω
Orientation Straight Type
Color WaterBlue Color
Number of Positions 4Pin
Code Z-code
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept
Main Feature Automotive Wire Connectors, Coaxial Connector, Coaxial Connector Assembly


  • USB Versatility: Essential for seamless USB connectivity (1.0, 2.0, 3.0), enabling data transfer and communication.
  • LVDS Speed: Vital for high-speed LVDS integration, ensuring reliable and rapid data transmissions.
  • Firewire Functionality: Facilitates IEEE 1394 (Firewire) technology, ensuring secure device connectivity and efficient data transfer.
  • GVIF Experience: Key in delivering Gigabit Video Interface (GVIF) experience in automotive electronics by enabling high-speed data transfer for video applications.
  • Infotainment Integration: Seamlessly integrates into automotive infotainment systems, enhancing the in-car entertainment experience.
  • Efficient Networks: Essential for developing and optimizing digital symmetrical networks within vehicles.
  • Enhanced Electronics: Found throughout automotive electronics, ensuring efficiency and smooth operation of various functions in vehicles.


HSD Coding:

FAKRA HSD LVDS 4 PIN Straight Type Z-Code Automotive Connector 0FAKRA HSD LVDS 4 PIN Straight Type Z-Code Automotive Connector 1
