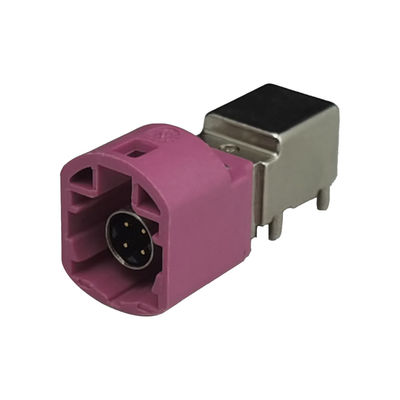

FAKRA HSD LVDS 4Pin H Code PCB Mount Connector for Car Radio

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Type PCB Mount Operating Temperature -40℃ To +105℃
Color Heather Violet/4003 Color Impedance 100Ω
Frequency Range DC To 6 GHz Number Of Positions 4Pin
Applications LVDS Camera, USB, And IEEE 1394 Services OEM ODM Accept
Leave a Message
Product Description

Product Description:

High-Speed Digital (HSD) connector presents an unparalleled innovation in the automotive sector, tailored to the needs of advanced digital systems. It stands out through its features which make it invaluable for modern automotive electronics, allowing them to smoothly operate with various applications and protocols. This connector works with the help of just one pair of data wires and is broadly available both in shielded and unshielded twisted pairs.

Due to its various advantages and versatility, HSD connector is an essential part of modern vehicles, transforming the automotive connectivity and unlocking even more potential from them.



Features:

Interference Resilience: This high-performance digital system is well-suited in handling low-voltage differential signals, whilst providing protection against crosstalk and external interference.

Secure Locking Mechanism: It features primary and secondary locks to ensure a reliable connection without compromising security.

Efficient Crimp Connections: Easy and effective crimp connections are enabled with this system for added convenience.

Robust Cable Retention: It provides a high cable retention, reducing the risk of disconnection and maintaining stable connection.

Enhanced Coding Efficiency: It has a high coding efficiency system in which the plastic housing comes with different codes to minimize misconnection.

Integration with Automotive Electronics: It integrates seamlessly with a range of automotive electronics, improving system efficiency.

Empowering Infotainment Systems: It is an important part of digital infotainment electronics, thereby facilitating a superior user experience in vehicles.



Technical Parameters:

Parameters Details
Mounting Type PCB Mount
Operating Temperature -40℃ To +105℃
Impedance 100Ω
Orientation Rignt Angle Type
Code H-code
Frequency range DC To 6 GHz
Number of Positions 4Pin
Features Automotive Connectors, Automotive Wire Connectors, HSD Connector Automotive
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

USB Connectivity (1.0, 2.0, 3.0): The HSD connector is essential in providing USB connectivity within automobiles, contributing to data transfer and communication requirements.

LVDS Integration: Utilising Low Voltage Differential Signaling (LVDS), the HSD connector supports efficient and high-speed data transmission.

IEEE 1394 (Firewire): The connector plays a key role in data transfer and device connectivity via IEEE 1394 within automotive systems.

Controller Area Network (CAN): The HSD connector is significant in enabling communication among various vehicle control units in the Controller Area Network (CAN).

GVIF (Gigabit Video Interface): The connector facilitates Gigabit Video Interface (GVIF) within automotive electronics, consequently enabling high-speed data transfer suited for video applications.

Automotive Infotainment Systems: Smoothly and effectively integrates into automotive infotainment systems, thus providing superior in-car entertainment.

Digital Symmetrical Networks: Facilitates the establishment and successful operation of digital symmetrical networks within the automotive landscape.

Automotive Electronics Integration: Finds extensive application in a wide range of automotive electronics, such that operation across the vehicle's electronic ecosystem is optimised.



HSD Coding:

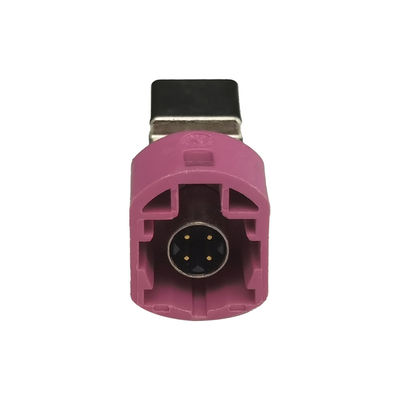

FAKRA HSD LVDS 4Pin H Code PCB Mount Connector for Car Radio 0FAKRA HSD LVDS 4Pin H Code PCB Mount Connector for Car Radio 1



Customization:

We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.


Support and Services:

We provide technical support and services for FAKRA HSD Connector. Our services include:



  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.



If you have any questions or need additional help, please contact us.
