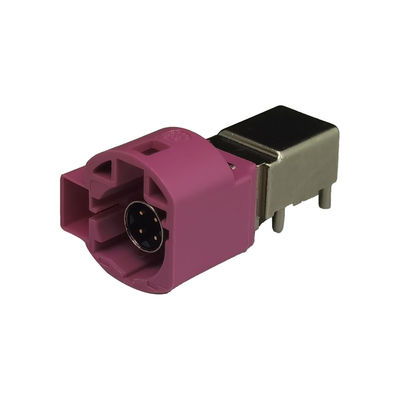

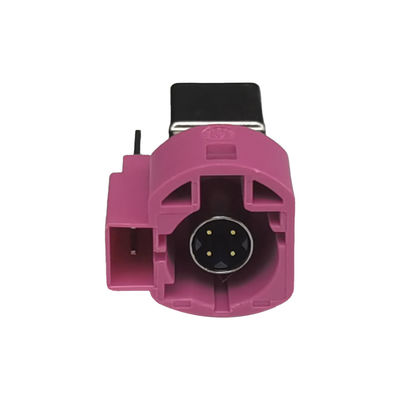

FAKRA HSD LVDS 4+2Pin H Code Right Angle Vehicle Connector GPS Signal PCB
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | PCB Mount | Operating Temperature | -40℃ To +105℃ |
|---|---|---|---|
| Frequency Range | DC To 6 GHz | Impedance | 100Ω |
| Working Voltage | 60 V Rms | Color | Heather Violet/4003 Color |
| MOQ | 20PCS | Services | OEM ODM Accept |
Product Description
Product Description:
HSD Connectors: High-Speed, High-Quality Signal Transmission HSD connectors are specifically designed to meet the connectivity requirements of a wide variety of telecom and multimedia applications. Its 100 Ohm impedance control system ensures reliable, high-speed and high-quality signal transmission. Furthermore, its RF interface is FAKRA and USCAR compliant and its multiple color-coded plastic housings provide connection accuracy and compliance with automotive specifications. All this contribute to its cost-effective design, making it one of the best high-speed connectors out there.Features:
- High-speed data transfer: Supports high-speed data transfer of up to 6 Gbps to ensure fast and efficient data transfer.
- Fully shielded to ensure signal integrity: Fully shielded to safeguard signal integrity and reduce the risk of interference during data transmission.
- Protocol Compatibility: Compatible with a variety of protocols including LVDS (Low Voltage Differential Signaling), Ethernet and USB, providing versatility and adaptability to different communication standards.
- Multiple Wire Diameters and Types: Provides the flexibility of different wire diameters and types that can be customized to meet specific application requirements.
- Versatile Connector Series: Offers a full range of connectors for both unsealed and sealed applications, increasing flexibility of use.
- Multiple Models and Sizes: Offers a variety of models and sizes to ensure suitability for a wide range of applications and to meet different specifications.
Technical Parameters:
| Parameters | Specifications |
|---|---|
| Impedance | 100Ω |
| Working voltage | 60 V Rms |
| Operating Temperature | -40℃ To +105℃ |
| Frequency range | DC To 6 GHz |
| Number of Positions | 4+2Pin |
| Code | H-code |
| Color | Heather Violet/4003 Color |
| Connector Type | Coaxial Connector |
| Usage | Automotive Wire Connectors |
| Applications | LVDS Camera, USB, And IEEE 1394 |
| Services | OEM ODM Accept |
Applications:
- LVDS Cameras: HSD connectors ensure reliable data transfer between LVDS cameras and vehicles for enhanced safety and navigation.
- In-Car Entertainment: HSD connectors optimize audio and video experiences in vehicles, enhancing entertainment during rides.
- Radio Antennas for Telematics and Navigation: Radio antennas are utilized to support GPS telematics and navigation, forming the infrastructure for infotainment and television in vehicles.
- Mobile Communication Enabled by RF: Radio frequency (RF) technology supports mobile communications, including Bluetooth and wireless LAN applications within the vehicle.
- RF Remote Control for Keyless Entry: RF remote control serves as a vital feature for keyless entry, enhancing vehicle security and convenience.
- Auxiliary Heating: Vehicles can be equipped with auxiliary heating systems, providing additional comfort and functionality.
HSD Coding:
Customization:
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
With HSD Connector, you can easily connect your device to your car’s antenna for reliable and fast data transfer. We offer technical support and service for this product so you can make the most of its features.
- Accept OEM and ODM orders.
- Samples are free of charge, only the customer has to pay the courier fee.
- Support multiple logistics methods.
- Fast delivery time and first-class service.
