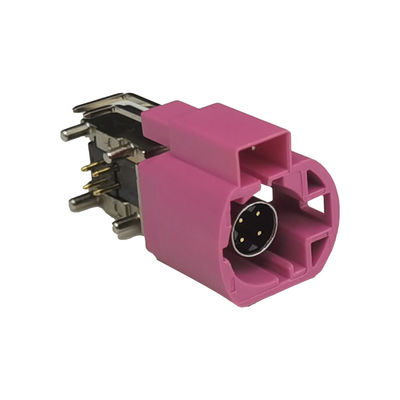

Right Angle Type Automotive FAKRA HSD Connector 4+2Pin H Code PCB Mount

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Code H-code Frequency Range DC To 6 GHz
Orientation Rignt Angle Type Number Of Positions 4+2Pin
Operating Temperature -40℃ To +105℃ Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD connectors are designed to provide reliable and high-speed signal transmissions with their 100 Ohm impedance control system. They are suitable for a broad selection of telecom and multimedia applications such as RF requirements. In addition, these high-speed connectors are accompanied with multiple plastic housings that are coded in different colors. This feature helps to guarantee that all connections are accurate and in line with automotive specification.



Features:

  • High-Speed Data Connectivity: Offers a high-speed shielded connection system capable of handling digital data at an impressive performance of 6 Gbps.
  • Versatile Applications: Provides reliable connectivity solutions for a range of applications including unsealed and sealed in-vehicle infotainment modules, cameras, consumer ports, and displays.
  • Protocol Compliance: Compliant with essential protocols like LVDS, Ethernet, and USB, ensuring seamless integration into diverse connectivity solutions.
  • Adaptability with Different Wire Types: The fully shielded connection system is designed to accommodate various sizes and types of wire, enhancing flexibility.
  • Diverse Connector Options: Offers a comprehensive range of connectors to cater to specific needs, providing a wide array of options.
  • MOQ:20 PCS


Technical Parameters:

Parameter Value
Product Type FAKRA HSD Connector
Operating Temperature -40℃ To +105℃
Orientation Right Angle Type
Number of Positions 4+2Pin
Mounting Type PCB Mount
Code H-code
Frequency Range DC To 6 GHz
Working Voltage 60 V Rms
Impedance 100Ω
Special Feature Coaxial Cable Connector, Automotive Wire Connectors
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

  • Cameras for Safety and Detection: Cameras enhance safety and detection capabilities in vehicles.
  • Efficient Computing in Vehicles: Modern vehicles feature efficient computing systems for optimized performance.
  • Technological Versatility: Vehicles integrate a range of technologies, from radio antennas to mobile communications, enhancing connectivity.
  • Added Convenience: Car-assisted heating and RF remote controls provide added convenience for vehicle users.



HSD Coding:

Right Angle Type Automotive FAKRA HSD Connector 4+2Pin H Code PCB Mount 0Right Angle Type Automotive FAKRA HSD Connector 4+2Pin H Code PCB Mount 1

Customization:

OEM & ODM orders are accepted. Our product portfolio is constantly expanding, so you can benefit from the most cutting-edge connection technologies. Custom cable types, connector types and cable lengths are available. If you need reliable digital data connection, contact us! We will provide you with a system that meets your specific needs.

Support and Services:

HSD connectors are designed to provide high signal integrity in automotive applications where space is limited. Our technical support and service are designed to ensure that our customers have the best experience with our products.

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
