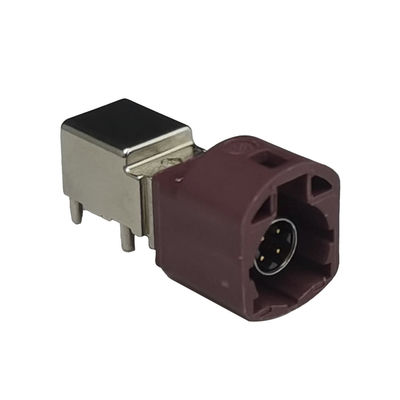

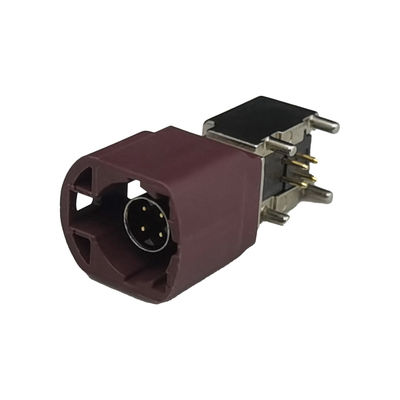

FAKRA HSD LVDS PCB 4 Pin Connector Code D Right Angle Plug for Car Camera

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Impedance 100Ω Color Claret Violet/4004Color
Frequency Range DC To 6 GHz Number Of Positions 4Pin
Code D-code Mounting Type PCB Mount
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

HSD connectors are very versatile and dependable when used in a variety of automotive applications. Owing to their high-speed data transmission capability, they are the excellent choice for connecting LVDS cameras, integrated car audio systems, sophisticated driver assistance systems (ADAS), and in-car Ethernet.

The small-sized and secure locking system of HSD connectors make them the ideal choice for automotive electronic. Moreover, they reliably deliver strong signals to the devices even when exposed to the extreme conditions in automotive environment.



  • Swift Data Transmission: HSD connectors ensure fast and reliable data transfer, meeting modern automotive application needs.
  • Signal Robustness: Maintain strong signal integrity, reducing data loss and enhancing communication accuracy in automotive systems.
  • Durability in Any Environment: Highly durable in diverse automotive environments, from temperature variations to electromagnetic interference.
  • Easy to Install: Specifically designed for quick and easy installation, reducing assembly time and effort.
  • Long-Lasting Performance: Exceptionally durable, enduring mechanical stress, vibrations, and temperature changes for consistent, extended performance.
  • Flexible Design: Versatile configurations allow design customization, seamlessly integrating into various vehicle architectures and systems.
  • Compatible Protocols: Work smoothly with different communication protocols like LVDS, USB, and Ethernet, integrating seamlessly with a range of automotive system devices.

Technical Parameters:

Parameter Details
Orientation Right Angle Type
Frequency range DC To 6 GHz
Code D-code
Operating Temperature -40℃ To +105℃
Mounting Type PCB Mount
Impedance 100Ω
Color Claret Violet/4004Color
Working voltage 60 V Rms
Applications LVDS Camera, USB, And IEEE 1394
Special Feature HSD Connector Automotive, Automotive Connectors, FAKRA HSD LVDS
Services OEM ODM Accept


  • LVDS Cameras: HSD connectors ensure reliable data transfer between LVDS cameras and vehicles for enhanced safety and navigation.
  • In-Car Entertainment: HSD connectors optimize audio and video experiences in vehicles, enhancing entertainment during rides.
  • ADAS: Crucial for real-time data transmission in ADAS, enabling vital safety features for drivers.
  • Infotainment: Essential for seamless data transmission in infotainment systems, including navigation and connectivity.
  • Ethernet: Perfect for in-vehicle Ethernet, enabling fast data transfer for diagnostics and updates.


HSD Coding:

FAKRA HSD LVDS PCB 4 Pin Connector Code D Right Angle Plug for Car Camera 0FAKRA HSD LVDS PCB 4 Pin Connector Code D Right Angle Plug for Car Camera 1



We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.


1.Q:How can l get the automotive FAKRA/HSD/MINI FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.


2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
