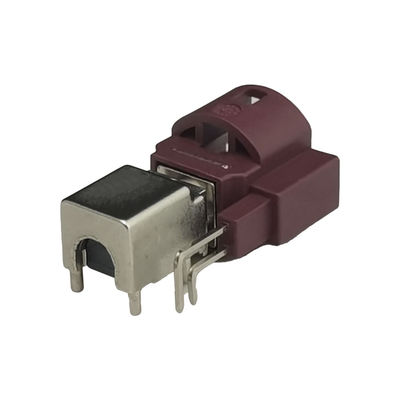

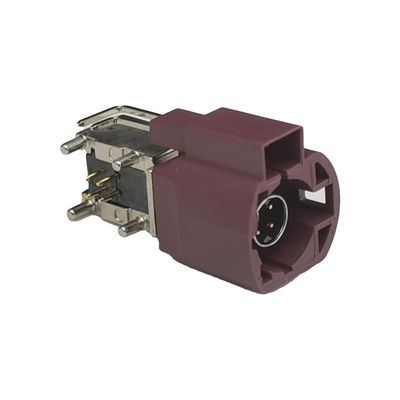

FAKRA HSD LVDS 4+2Pin Rignt Angle Type Panel Mount Through Hole D Code Plug

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Claret Violet/4004Color Number Of Positions 4+2Pin
Impedance 100Ω Orientation Rignt Angle Type
Frequency Range DC To 6 GHz Code D-code
Applications LVDS Camera, USB, And IEEE 1394 MOQ 20PCS
Leave a Message
Product Description

Product Description:

The HSD Connector is an innovative automotive interconnection system designed for the modern automotive industry. It is a high-performance solution that provides versatility, reliability, and robust data transmission. With power pin options, including +2, +4, and +8, and the ability to customize to meet customer specifications, it is suitable for a wide range of automotive applications. The HSD Connector is ideal for handling low-voltage differential signals, guarding data integrity, and shielding against crosstalk and external interference. With a compact design, it is complete with mechanical keying, latching mechanisms, and color-coding options that can meet the strict demands of the automotive market. The primary and secondary locking mechanisms give it stability and safety in a potentially slippery environment. Furthermore, it is cost-effective using already established parts from the standard HSD system, making it suitable for high-speed data transmission, including Ethernet. Uses in LVDS cameras, in-car entertainment, diagnostics, ADAS, or Ethernet connectivity will benefit from its advanced level of reliability and performance.



Features:

  • Secure locking mechanisms and compact dimensions for stability and security.
  • Tailored for automotive applications, including LVDS cameras, USB, and IEEE 1394.
  • Efficient Data Transmission: HSD connectors enable high-speed and reliable data transfer between automotive systems.
  • Easy Integration: HSD connectors offer plug-and-play functionality, simplifying the installation process.
  • Durable and Reliable: Built to withstand tough automotive conditions, HSD connectors ensure long-lasting performance.
  • Interference Protection: They provide effective shielding against electromagnetic and radio frequency interference for stable data transmission.
  • Industry Standard Compliance: They adhere to industry standards, ensuring compatibility with various automotive devices and systems.


Technical Parameters:

Features Details
Operating Temperature -40℃ To +105℃
Working Voltage 60 V Rms
Impedance 100Ω
Code D-code
Number of Positions 4+2Pin
Orientation Rignt Angle Type
Mounting Type PCB/Panel Mount
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

  • LVDS Camera Systems: Ensuring reliable data transfer for advanced safety and navigation systems.
  • In-Car Entertainment: Enabling high-speed data transfer for seamless audio and video playback.
  • ADAS: Facilitating real-time sensor data transmission for enhanced driver assistance features.
  • Ethernet Connectivity: Meeting specific speed and link requirements for in-vehicle Ethernet connections.



HSD Coding:

FAKRA HSD LVDS 4+2Pin Rignt Angle Type Panel Mount Through Hole D Code Plug 0FAKRA HSD LVDS 4+2Pin Rignt Angle Type Panel Mount Through Hole D Code Plug 1



Customization:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Support and Services:

  • 1.Accept OEM and ODM orders.
  • 2.Samples are free of charge, only the customer has to pay the courier fee.
  • 3.Support multiple logistics methods.
  • 4.Fast delivery time and first-class service.

We are committed to providing you with the best technical support and service possible. If you have any questions or need assistance, please don’t hesitate to contact us.


FAQ:

1.Q:How can l get the automotive FAKRA/HSD/MINI FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.



3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
