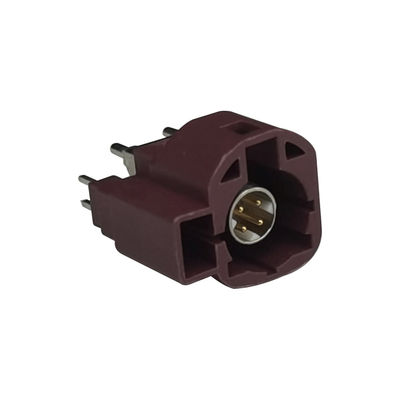

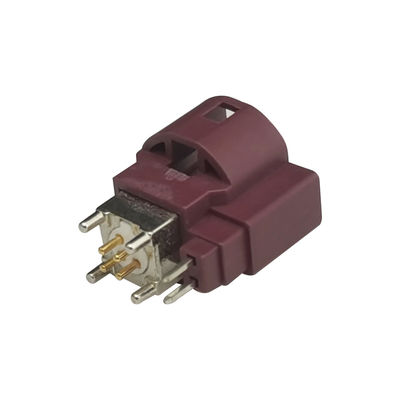

FAKRA HSD Connector 100 Ohm Straight Solder D-Code For In-Car Camera Systems

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Temperature -40℃ To +105℃ Number Of Positions 4+2Pin
Orientation Straight Type Color Claret Violet/4004Color
Frequency Range DC To 6 GHz Code D-code
Mounting Type PCB/Panel Mount MOQ 20PCS
Leave a Message
Product Description

Product Description:

High-Speed Data (HSD) Connectors are indispensable components in modern automotive technology. They serve as the backbone for seamless data transmission, enhancing both safety and entertainment features within vehicles.
The HSD Connector produces reliable results in automotive systems that require the transmission of high speed data. It is a critical component for a range of applications from infotainment, navigation, and ADAS to other automotive services. Our connector exceeds expectations when it comes to the robustness and reliability of performance - making it an irreplaceable component for automotive systems.
The advanced design of the HSD Connector ensures a dependable and safe connection. It offers consistent performance in a wide range of conditions, making it a reliable and secure choice for automotive systems.


Our HSD Connector is specially designed for automotive applications, providing various configurations suitable for single-ended and differential signal connections. Furthermore, it offers superior signal quality through carefully engineered low insertion loss, ensuring the integrity of data transmission.
To further guarantee data reliability, our connector may come with error correction mechanisms to enable automatic detection and correction of any errors. The connector is also ruggedized to enhance durability and withstand mechanical shocks and vibrations common in automotive environments.
Additionally, the connector features a compact form factor that allows for efficient use of space inside your vehicle's electronics system, while its color-coded components simplify assembly and reduce misconnections. It may also include a reliable locking mechanism to prevent accidental disconnections and provide stability during movement and vibration.


Technical Parameters:

Frequency rangeDC To 6 GHz
ColorClaret Violet/4004Color
OrientationStraight Type
Mounting TypePCB/Panel Mount
Number of Positions4+2Pin
Operating Temperature-40℃ To +105℃
Product TypeAutomotive Wire Connectors, Coaxial Connector, Automotive Connectors
ServicesOEM ODM Accept


  • Infotainment Boost: Linking the head unit, displays, and entertainment sources for audio, video, navigation, calls, and app integration.
  • ADAS Support: Ensuring reliable sensor data for adaptive cruise control, lane-keeping, collision avoidance, and parking assistance.
  • Telematics Connectivity: Maintaining continuous connectivity for vehicle tracking, diagnostics, updates, and emergency services.
  • Navigation Precision: Providing real-time traffic data and accurate route guidance.
  • Enhanced Displays: Facilitating digital instrument clusters and heads-up displays.
  • Camera Integration: Enabling high-resolution camera systems for safer driving and parking.
  • Premium Audio: Ensuring top-quality sound in premium audio systems.
  • Electric & Autonomous: Supporting data transmission in electric and autonomous vehicles for safety and charging.
  • Efficient Networking: Enabling in-vehicle communication for optimal performance and safety.


HSD Coding:

FAKRA HSD Connector 100 Ohm Straight Solder D-Code For In-Car Camera Systems 0

FAKRA HSD Connector 100 Ohm Straight Solder D-Code For In-Car Camera Systems 1


LEADSIGN offers OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

FAKRA HSD Connector offers technical support and services to ensure that our products are working as intended. Our technical support and services include:

  1. Accept OEM and ODM orders.
  2. Samples are free of charge, only the customer has to pay the courier fee.
  3. Support multiple logistics methods.
  4. Fast delivery time and first-class service.
