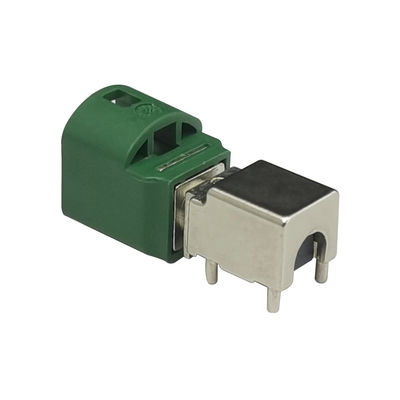

FAKRA HSD Connector OEM ODM Accept E-code Coaxial Cable Connector

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Number Of Positions 4Pin Orientation Right Angle Type
Impedance 100Ω Code E-code
Mounting Type PCB Mount Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20PCS
Leave a Message
Product Description

Product Description:

The HSD interconnect system is designed to meet the needs of automotive related markets such as LVDS cameras, USB and IEEE 1394 applications. With features such as mechanical keying, latching, color coding options and compact size, it meets the diverse needs of the global automotive market. These cost-effective high-speed connectors utilize familiar components from standard HSD systems and are ideal for supporting the automotive industry's demanding Ethernet applications.



  1. Fast Data Transfer: Supports high-speed data exchange (up to 8 Gbps) for real-time communication between vehicle parts.
  2. Stable Signal: Maintains steady 100-ohm impedance, ensuring signal reliability.
  3. Tough in Temperature: Operates between -40°C to +105°C, enduring extreme conditions.
  4. Long-Lasting: Withstands over 25 mating cycles, promising durability.
  5. Clear Connection: Color and mechanical coding for accurate pairing.
  6. Strong Locks: Primary and secondary locks ensure secure connections.
  7. Flexible Compatibility: Works with USB, LVDS, Ethernet, and more, adapting to different protocols.
  8. MOQ:20PCS

Technical Parameters:

Property Details
Impedance 100Ω
Color Green Color
Operating Temperature -40℃ To +105℃
Mounting Type PCB Mount
Code E-code
Number of Positions 4Pin
Orientation Right Angle Type
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


  1. ADAS Assistance: Enables real-time data sharing in advanced driver assistance systems.
  2. Telematics & Updates: Transmits vehicle tracking, diagnostics, and software updates.
  3. Camera Signals: Sends high-quality video for rear-view and surround-view cameras.
  4. User Interface: Ensures accurate data for dash displays and interfaces.
  5. Ethernet Efficiency: Facilitates high-speed in-car networking.
  6. Vehicle Communication: Boosts vehicle-to-vehicle and infrastructure talk.
  7. Passenger Comfort: Delivers quality audio and video signals.



HSD Coding:

FAKRA HSD Connector Code E Plug 90 Degree PCB Mount Coaxial Connector 0FAKRA HSD Connector Code E Plug 90 Degree PCB Mount Coaxial Connector 1



We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Support and Services:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.


1.Q:How can l get the automotive FAKRA/HSD/MINI FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.


2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
