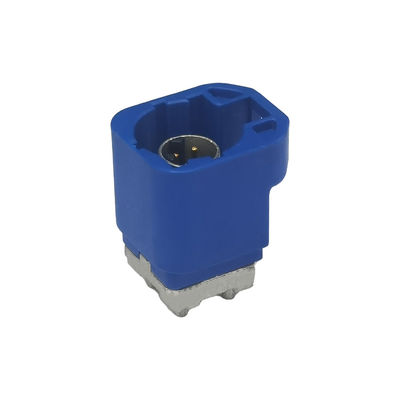

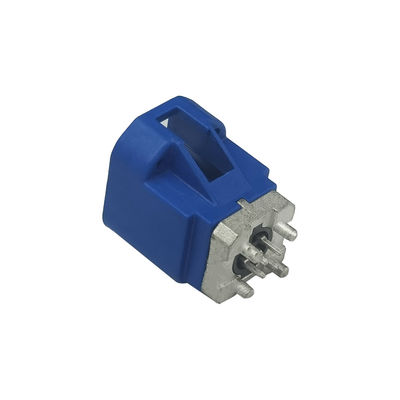

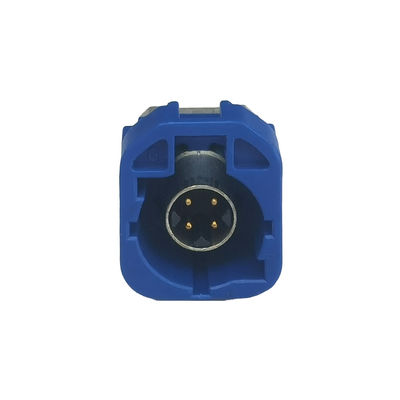

Code C FAKRA HSD Connector Plug PCB Mount Vertical Pin Header Connector
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Orientation | Straight Type | Mounting Type | PCB Mount |
|---|---|---|---|
| Number Of Positions | 4Pin | Impedance | 100Ω |
| Code | C-code | Applications | LVDS Camera, USB, And IEEE 1394 |
| Services | OEM ODM Accept | MOQ | 20PCS |
| Highlight | Code C FAKRA HSD Connector,FAKRA HSD Vertical Pin Header Connector,FAKRA HSD Pin Header Connector |
||
Product Description
Product Description:
HSD connection system (High Speed Data) ensures fully shielded interconnection, safeguarding against interference and crosstalk. With a characteristic impedance of 100Q, it employs Low Voltage Differential Signaling (LVDS) for data transmission, supporting USD 2.0/3.0, Ethernet, and high shielding demands. Tailored for automotive applications, it facilitates high-frequency signal and data transmission, controlling infotainment, cameras, ports, and displays, with compatibility for LVDS, GVIF, USB, and Ethernet protocols. This enables real-time video images for driving comfort and safety. Designed for modern vehicles, HSD PCB connectors offer reliable data connectivity, coupled with optimized signal integrity, efficient operation, and compatibility with technologies like autonomous driving, contributing to automotive performance and safety.
Features:
- Primary and secondary locking mechanisms ensure secure connections resistant to vibrations and impacts.
- High cable retention for crimp connections prevents accidental disconnections and maintains stability.
- Various codes on the plastic housing provide efficient coding for accurate installations.
- The fully shielded system is compatible with different wire diameters and types, guarding against interference.
- High-speed digital data design allows for up to 6Gbps performance, ensuring rapid and reliable data exchange.
- Lightweight design and right-angle orientation are space-efficient and suitable for PCB mounting.
Technical Parameters:
| Parameter | Value |
|---|---|
| Brand Name | LEADSIGN |
| Product Name | HSD PCB connector |
| Impedance | 100Ω |
| Orientation | Straight Type |
| Color | Blue Color |
| Code | C-code |
| Operating Temperature | -40℃ To +105℃ |
| Mounting Type | PCB Mount |
| Number of Positions | 4Pin |
| Type | Automotive Connectors, Coaxial Connector, FAKRA HSD LVDS 4Pin |
Applications:
- Automotive Electronics: Facilitates reliable functioning of various vehicle systems.
- Digital Infotainment Electronics: Enhances in-car entertainment experiences.
- LVDS Camera, USB, Ethernet: Supports robust data exchange for cameras, USB interfaces, and Ethernet.
- Dashboard/Touch Screen: Enables accurate data transfer to interactive displays.
- Surround Camera: Transmits high-quality video feeds for situational awareness.
- Vehicle Remote Diagnostics: Exchanges diagnostic data between vehicle and external systems.
- LVDS Support: Enables high-speed data transmission within automotive applications.
- Ethernet: Promotes high-speed communication between in-car systems.
HSD Coding:
Customization:
LEADSIGN FAKRA HSD Connector: 4Pin Coaxial Connector
We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.
FAQ:
LEADSIGN HSD PCB Connector Questions & Answers
Q1:Do HSD PCB connectors ensure secure connections?
A1:Yes, HSD PCB connectors feature primary and secondary locking mechanisms for secure connections that withstand vibrations and impacts, ensuring reliable performance even in challenging conditions.
Q2:How do HSD PCB connectors contribute to driver safety?
A2:HSD PCB connectors support driver assistance systems by enabling reliable communication between sensors and control units. This enhances safety features like collision warnings, adaptive cruise control, and lane departure alerts.
Q3: What is the Minimum Order Quantity of the HSD PCB Connector?
A3: The Minimum Order Quantity of the HSD PCB Connector is 20PCS.
