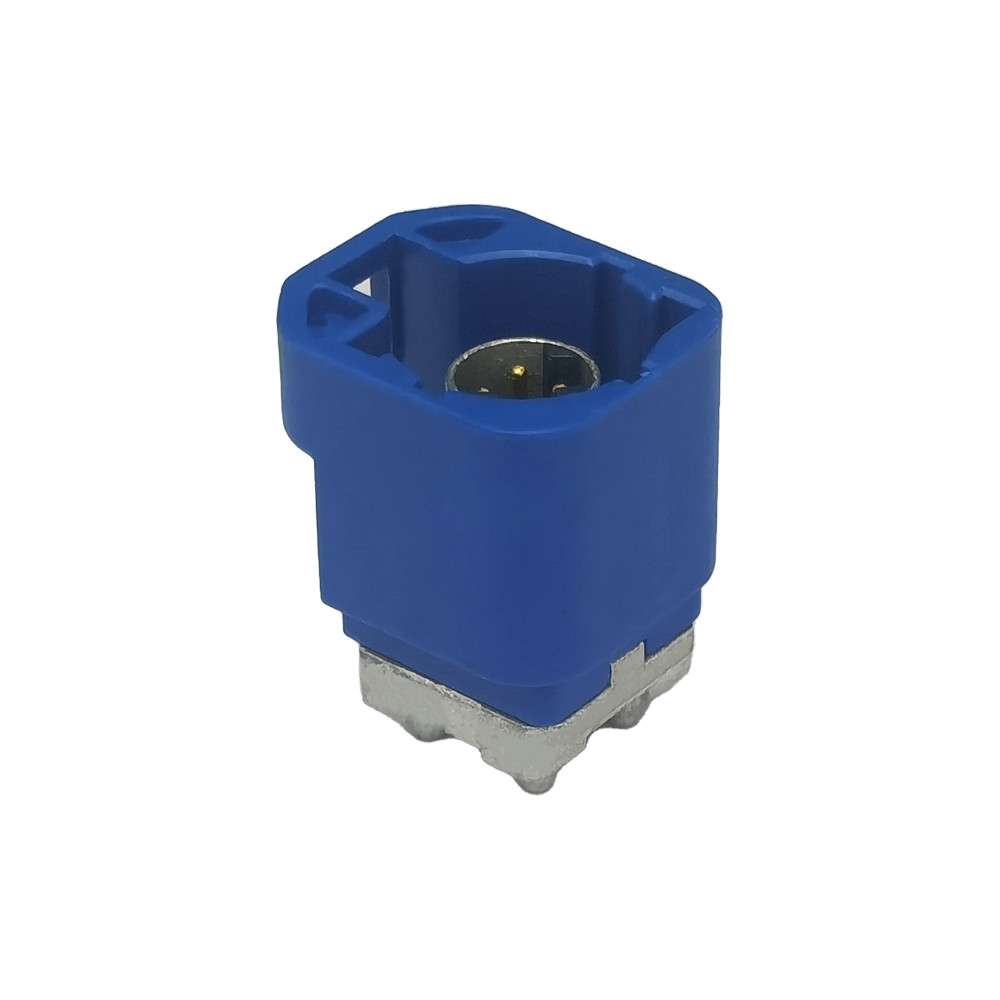

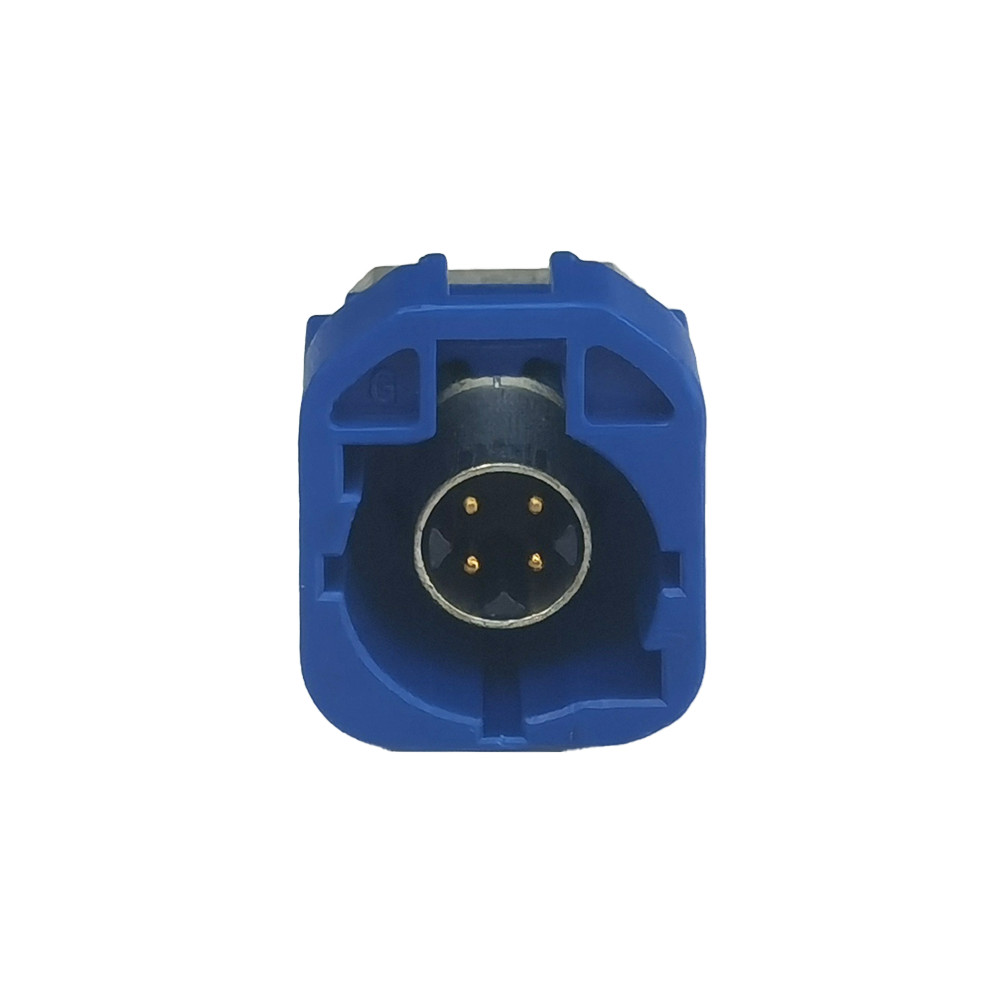

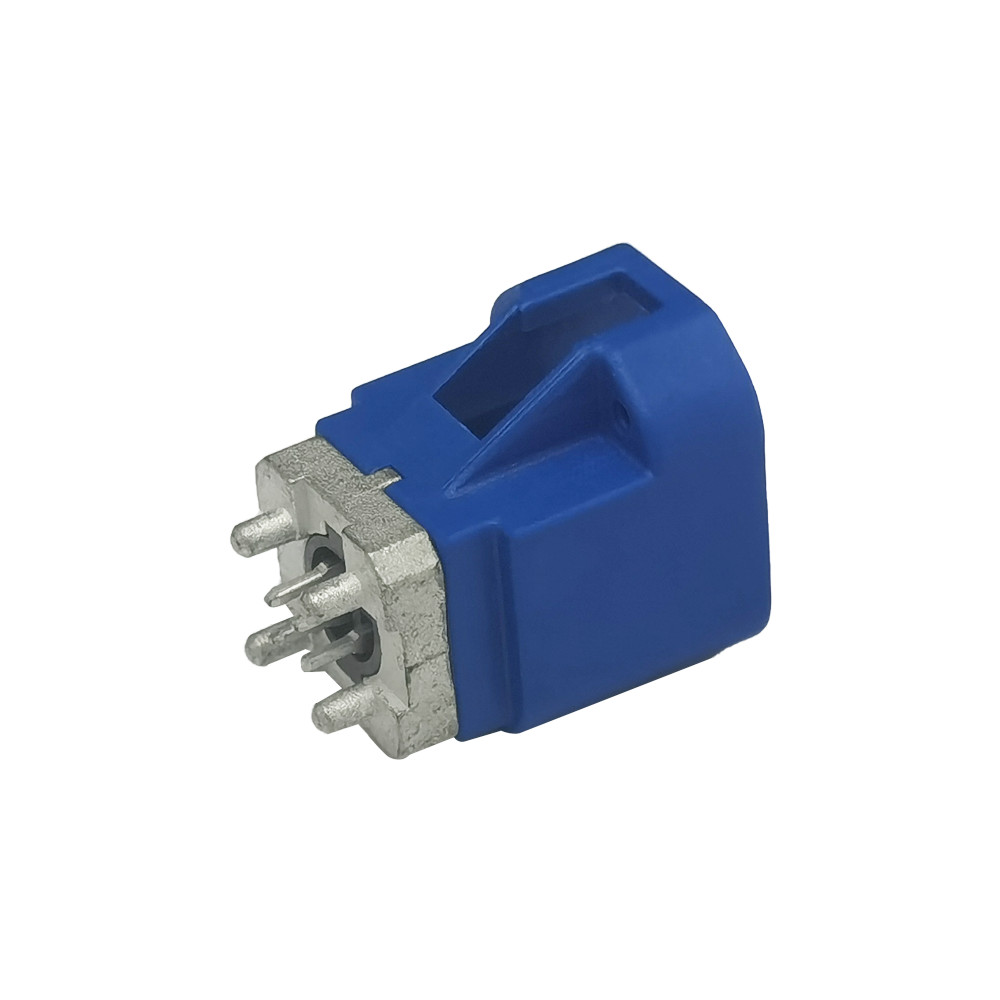

4Pin FAKRA HSD Connector PCB Mount Vertical Pin Headers Automotive Connector
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | HSD PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Orientation | Straight Type | Impedance | 100Ω |
|---|---|---|---|
| Code | C-code | Number Of Positions | 4Pin |
| Color | Blue Color | Operating Temperature | -40℃ To +105℃ |
| Services | OEM ODM Accept | MOQ | 20PCS |
| High Light | 4Pin FAKRA HSD Connector,Vertical Pin FAKRA HSD Connector,Automotive FAKRA HSD Connector |
||
Product Description
Product Description:
HSD PCB connectors offer a range of advantages for automotive applications, including robust shielding against interference and crosstalk, versatile compatibility with LVDS, USB, and Ethernet protocols, seamless integration with automotive systems such as infotainment and driver assistance, enhanced capabilities for high-frequency signal transmission, and a compact design optimized for various devices and emerging technologies like autonomous driving. These connectors not only improve vehicle performance, safety, and functionality, but also play a crucial role in the advancement of automotive technology.
Features:
- Secure Locking: Utilizes primary and secondary locking for stable connections in high-vibration environments.
- High Cable Retention: Prevents accidental disconnections, maintaining consistent performance.
- Accurate Coding: Different housing codes prevent incorrect connections, ensuring precise installation.
- Protocol Compatibility: Complies with LVDS, Ethernet, and USB protocols, adapting to different data needs.
- High-Speed Data: Supports up to 6Gbps, facilitating rapid and reliable digital data transfer.
- Space-Efficient: Lightweight and Straight type design suits compact spaces and PCB mounting.
- Versatile Applications: Available in sealed and unsealed options, catering to diverse automotive requirements.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Product Name | FAKRA HSD Connector |
| Impedance | 100Ω |
| Code | C-code |
| Orientation | Straight Type |
| Number of Positions | 4Pin |
| Color | Blue Color |
| Mounting Type | PCB Mount |
| Operating Temperature | -40℃ To +105℃ |
| Applications | LVDS Camera, USB, And IEEE 1394 |
Applications:
- Digital Infotainment: Ensures seamless data transmission for enhanced in-car entertainment.
- LVDS Camera Connections: Supports high-quality camera data exchange.
- USB Interfaces: Facilitates USB 1.0, 2.0, and 3.0 connections.
- Ethernet Connectivity: Enables high-speed and reliable communication between in-car systems.
- Dashboard and Touch Screens: Ensures accurate data transfer for interactive displays.
- Surround Camera Systems: Transmits high-quality video feeds for situational awareness.
- Vehicle Remote Diagnostics: Exchanges diagnostic data between the vehicle and external systems.
- LVDS Support: Utilized for high-speed data transmission within automotive applications.
HSD Coding:
Customization:
LEADSIGN HSD PCB Connector
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
FAQ:
Q1:What are the benefits of using HSD PCB connectors?
A1:HSD PCB connectors offer high-speed data transmission, compact design, signal integrity, and compatibility with various protocols. They enhance communication between automotive devices and systems.
Q2:Do HSD PCB connectors ensure secure connections?
A2:Yes, HSD PCB connectors feature primary and secondary locking mechanisms for secure connections that withstand vibrations and impacts, ensuring reliable performance even in challenging conditions.
Q3:How do I apply for samples?
A3:You can contact our customer service, you only need to pay the freight, our samples are free.
Q4:Does your factory accept customized service?
A4:Yes,we accept OEM&ODM.
