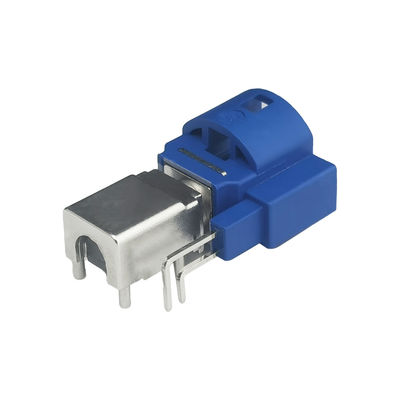

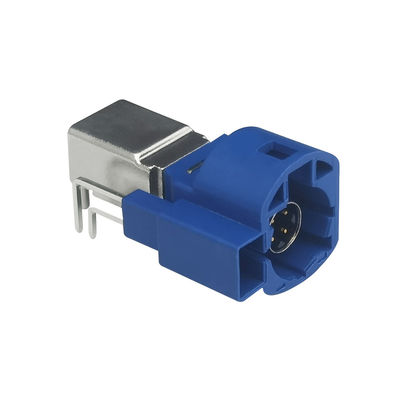

C Code Blue Color FAKRA HSD Connector PCB Mount Plug For BMW

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type HSD +2 Types Number Of Positions 4+2Pin
Code C-code Orientation Right Angle
Impedance 100Ω Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept MOQ 20 PCS
High Light

PCB Mount Plug FAKRA HSD Connector

,

FAKRA HSD Connector For BMW

,

PCB Mount Plug HSD Connector

Leave a Message
Product Description

Product Description:

HSD PCB connector is an automotive RF connector with a 4+2PIN configuration that ensures fast data transfer and supports advanced multimedia applications in the car. The connector's printed circuit board layout is designed to fit precisely on the circuit board, making the most efficient use of space while improving overall system performance. Whether for infotainment, navigation, or telematics, HSD PCB connectors are a reliable solution for high-speed data transfer and dependable connectivity in the automotive industry.



Features:

  1. Reliable signal integrity for improved system performance in automotive applications.
  2.  4+2 pin setup compatibility for flexible connectivity and Ethernet applications.
  3. Fully shielded 100 Ω interconnect system for minimized electromagnetic interference.
  4. Compact design with mechanical keying, latching, color coding options, and secure locking mechanism for versatility and enhanced safety.
  5. Adherence to automotive industry standards for use in various automotive contexts.
  6. Strict safety compliance for dependable application in critical systems.


Technical Parameters:

Property Specification
Connector type FAKRA HSD Connector
Type HSD +2 Types
Impedance 100Ω
Orientation Right Angle
Operating Temperature -40℃ To +105℃
Color Blue Color
Code C-code
Applications LVDS Camera, USB, And IEEE 1394
Services OEM ODM Accept


Applications:

  1. Versatile use in automated driving, driver assistance, navigation, infotainment, and mobile communication.
  2. Navigation modules for efficient GPS data transfer.
  3. Telematics systems for reliable vehicle tracking and diagnostics.
  4. Camera systems for real-time video feeds.
  5. ADAS for data transmission from sensors and cameras.
  6. Multimedia integration for seamless device connectivity.
  7. Automotive Ethernet networks for high-speed data transfer.



HSD Coding:

C Code Blue Color FAKRA HSD Connector PCB Mount Plug For BMW 0C Code Blue Color FAKRA HSD Connector PCB Mount Plug For BMW 1




Customization:

LEADSIGN HSD PCB Connector

We accept OEM & ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.

FAQ:

Q1:What is the HSD PCB connector used for?
A1:The HSD PCB connector is used in automotive applications for reliable signal transmission and improved performance.

Q2:Where is the HSD PCB connector applied?
A2:It is applied in infotainment, navigation, telematics, ADAS, camera systems, vehicle diagnostics, and automotive Ethernet networks.


Q3:How do I apply for samples?

A3:You can contact our customer service, you only need to pay the freight, our samples are free.



Q4:Does your factory accept customized service?

A4:Yes,we accept OEM&ODM.
