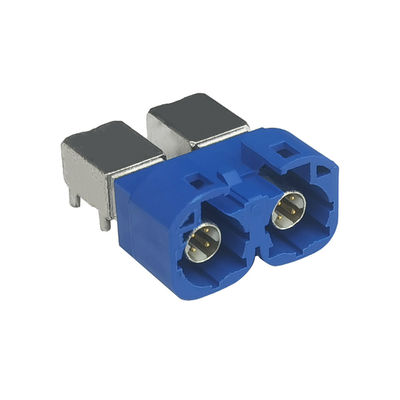

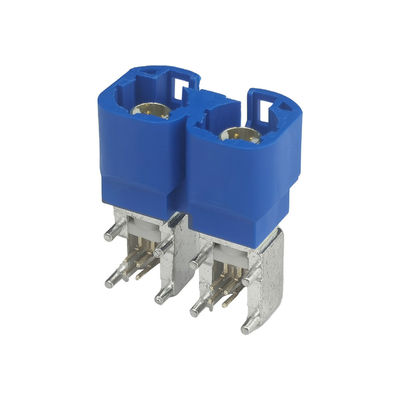

FAKRA HSD LVDS 2x4 Pin C Coding HSD 2 Connector For PCB Mount

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Number Of Positions 2X4 Signal Pins Operating Temperature -40℃ To +105℃
Mounting Type PCB Mount Orientation Right Angle
Code C-code Color Blue Color
Services OEM ODM Accept MOQ 20PCS
High Light



C Coding HSD 2 Connector


PCB Mount HSD 2 Connector

Leave a Message
Product Description

Product Description:

This HSD connector is a high-performance automotive RF connector with a compact design, 100 Ohm impedance, and a right-angle plug for direct mounting to a printed circuit board. The 2X4 signaling pins and dual connector design allow for easy identification.
The HSD connector has become an indispensable component in modern automotive technology. It is widely used in infotainment, navigation, telematics, ADAS, and vehicle-to-vehicle communication, providing secure connectivity and high-speed data transfer.


  1. High-performance data transmission with minimal signal decline.
  2.  2X4 signal pins for managing multiple data channels in sophisticated multimedia applications.
  3. Versatile integration in infotainment, navigation, telematics, and ADAS systems.
  4. Fast data transfer with 100-ohm impedance and two-part fitting.
  5. Secure mating on circuit boards for improved system efficacy.
  6. Compact design and ninety-degree plugin for space-saving in automotive electronic systems.
  7. MOQ:20 PCS

Technical Parameters:

Property Value
Product Name FAKRA HSD Connector
Code C-code
Mounting Type PCB Mount
Orientation Right Angle
Impedance 100Ω
Color Blue Color
Number of Positions 2X4 Signal Pins
Operating Temperature -40℃ To +105℃
Application Automotive electronics
Telecom industries, e.g. radio base stations
Digital infotainment electronics
Digital symmetrical networks
USB 1.0, 2.0, 3.0
IEEE 1394


  1. Infotainment Systems: Reliable audio and video streaming for optimal in-car entertainment.
  2. Navigation Modules: Efficient data transfer for accurate and up-to-date GPS information.
  3. Telematics Systems: Reliable data transmission for remote tracking, diagnostics, and updates.
  4. Camera Systems: Stable connections for real-time video feeds from cameras.
  5. Advanced Driver Assistance Systems (ADAS): Facilitates data transmission for collision warnings and adaptive cruise control.
  6. Vehicle Diagnostics: Efficient communication between ECUs and diagnostic tools.
  7. Multimedia Integration: Seamless integration of smartphones, tablets, and audio players into the infotainment system.
  8. Ethernet Networks: Vital for high-speed data transfer and future-ready applications in automotive networks.


HSD Coding:

FAKRA HSD LVDS 2x4 Pin C Coding HSD 2 Connector For PCB Mount 0FAKRA HSD LVDS 2x4 Pin C Coding HSD 2 Connector For PCB Mount 1



Welcome to LEADSIGN FAKRA HSD Connector Customization Service!

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution.

If you have any needs for FAKRA HSD Connector, please feel free to contact us.



Q&A for HSD PCB Connector

1.Q: What are its key features?
A:  100-ohm impedance, and 2X4 signal pins for efficient data transfer.


2.Q: Where can it be used in vehicles?
A: In infotainment, navigation, telematics, ADAS, and data-intensive systems.


3.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can offer the latest price for you.

4.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
